Quick Details
-
Marketing Type:
-
New Product 2022
-
Production Capacity:
-
350t/h
-
Power:
-
96KW
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Oriemac
-
Dimension(L*W*H):
-
6000*1900*3745mm
-
Maximum paving width:
-
4.5m
-
Maximum paving thickness:
-
280
-
Engine power:
-
96kw
-
External dimensions:
-
6000*1900*3745mm
-
Engine model:
-
SC4H+
-
Overall weight:
-
14000kg
-
Minimum paving width:
-
1.8m
-
Paving speed:
-
20m/mim
-
Travel speed:
-
0-2.2km/h
-
Theoretical productivity:
-
350t/h
Quick Details
-
Max. Paving Thickness:
-
280mm
-
Weight:
-
14000 kg
-
Engine Brand:
-
TOP BRAND
-
Marketing Type:
-
New Product 2022
-
Production Capacity:
-
350t/h
-
Power:
-
96KW
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Oriemac
-
Dimension(L*W*H):
-
6000*1900*3745mm
-
Maximum paving width:
-
4.5m
-
Maximum paving thickness:
-
280
-
Engine power:
-
96kw
-
External dimensions:
-
6000*1900*3745mm
-
Engine model:
-
SC4H+
-
Overall weight:
-
14000kg
-
Minimum paving width:
-
1.8m
-
Paving speed:
-
20m/mim
-
Travel speed:
-
0-2.2km/h
-
Theoretical productivity:
-
350t/h
PRODUCT DISCRIPTION

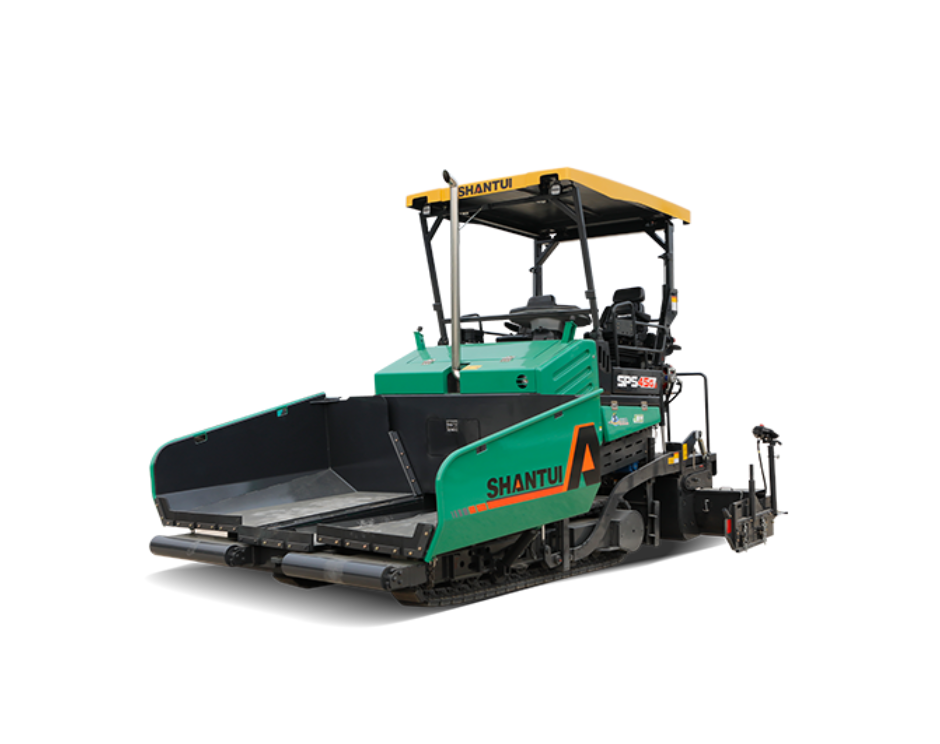

SHANTUI 4.5m Asphalt Machinery SPS45-G Paving Road Machine Paver For Sale
● Equipped with a 96KW high-power engine, which meets National IV emissions, has low noise and strong power, and can be applied to various working conditions. It is also equipped with an economical mode to save energy and reduce noise.
● Equipped with double-supported multi-stage sliding columns, high-strength frame, strong anti-deformation ability, which can ensure excellent stability at the maximum paving width;
● The paving width is 0.8-4.5m, the stepless expansion and contraction range is 1.8-3.2m, equipped with a single vibrating compaction device, and has strong adaptability to working conditions;
● The new electric heating system can heat the screed in real time on the one hand, and on the other hand it has high heating efficiency. The screed soleplate can reach above 130℃ in 15 minutes, reducing downtime and waiting time.
* Fully hydraulic closed walking system, equipped with three-stage reducer, has stronger driving ability and low-speed stability;
● It adopts the industry-leading Shantui four-wheel belt product, which is wear-resistant, has a long service life, and has stable driving and paving speeds;
● The tensioning system realizes the semi-automatic tensioning function, which saves customers from daily tensioning work.
● The super-large reinforced hopper ensures the continuity of construction;
● The hoppers on both sides are independently controlled, and the push rods can be folded along with the hoppers to ensure that there is no problem in receiving materials when working against obstacles such as walls;
● The unloading height is 580mm, the lowest of the same model, and the truck unloads more smoothly;
● Thickened hopper bottom plate and high-strength hopper support can effectively prevent the hopper from deforming.
CONTACT
Nancy
Whatsapp/Mobile: +86-18221941029
E-mail: nancy@oriemac.com
Whatsapp/Mobile: +86-18221941029
E-mail: nancy@oriemac.com
PRODUCT PARAMETER
|
Parameter name
|
SPS45-G
|
|
Performance parameters
|
|
|
Operating weight (Kg)
|
14000
|
|
Basic paving width (m)
|
1.8
|
|
Maximum paving width (m)
|
4.5
|
|
Maximum paving thickness (mm)
|
280
|
|
Maximum productivity (t/h)
|
350
|
|
Engine
|
|
|
Engine model
|
SC4H+
|
|
Rated power/rated speed (kW/rpm)
|
96/2200
|
|
Overall dimensions
|
|
|
Overall dimensions of machine (mm)
|
6000*1900*3745
|
|
Driving performance
|
|
|
Traveling speed (km/h)
|
0~2.2
|
|
Paving speed (m/min)
|
20
|
|
Chassis System
|
|
|
Hopper
|
|
|
Hopper capacity (t)
|
12
|
