Quick Details
-
Material:
-
Q235 Q355
-
Color:
-
Customizable
-
Usage:
-
Road Traffic Safe
-
Feature:
-
Anti-corrosion
-
Surface treatment:
-
Galvanized + Powder Coated
-
Certificate:
-
ISO9001
-
MOQ:
-
50 pcs
-
Type:
-
W beam,thrie beam
-
Application:
-
Roadway Safety
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
HOPE
-
Product name:
-
Highway Guardrail
-
Material:
-
Q235 Q355
-
Color:
-
Customizable
-
Usage:
-
Road Traffic Safe
-
Feature:
-
Anti-corrosion
-
Surface treatment:
-
Galvanized + Powder Coated
-
Certificate:
-
ISO9001
-
MOQ:
-
50 pcs
-
Type:
-
W beam,thrie beam
-
Application:
-
Roadway Safety
Products Description
|
Product
|
Size
(L * W * WW * WH * T） |
Ordinary type
Quantity per KM |
Reinforced type
Quantity per KM |
Coating Treatment
|
|||
|

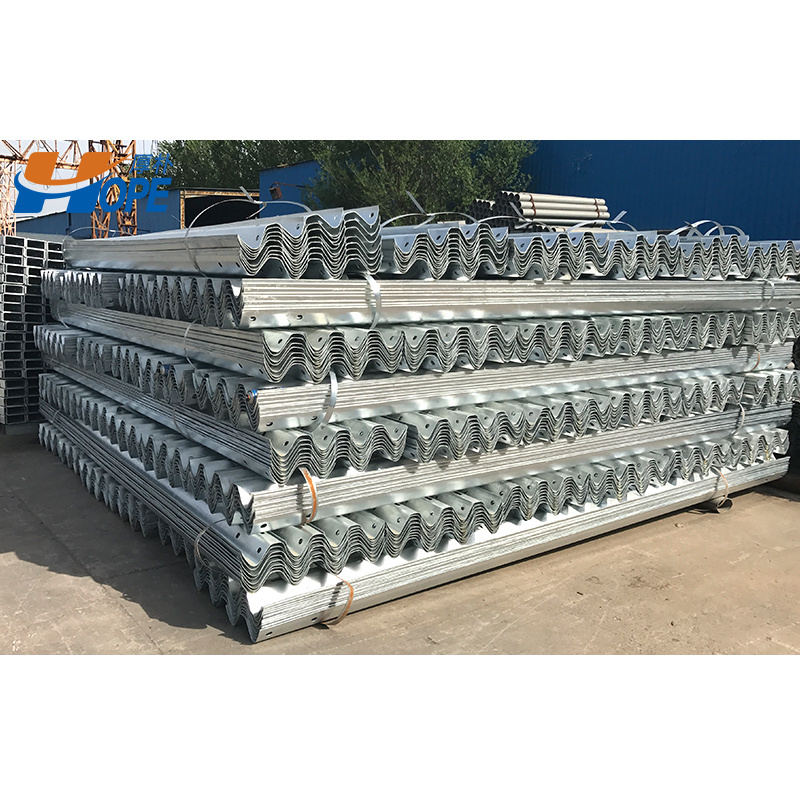

Thrie-beam
|
4320*506*85*3/4 mm
|
250 Pcs
|
250 Pcs
|
Hot Dip Galvanized:
60-100μm; Powder spraying: Pre-Galvanized + Powder spraying 50-90μm; |
|||
|
Post
|
2150*130*130*6mm/
2150*140 * 4.5mm |
251 Pcs
|
501 Pcs
|
|
|||
|
Bracket
|
300*70*4/4.5mm
|
251 Pcs
|
501 Pcs
|
|
|||
|
Spacer Block
|
178*196*200*4.5mm
|
251 Pcs
|
501 Pcs
|
|
|||
|
Post Cap
|
Φ140mm
|
251 Pcs
|
501 Pcs
|
|
|||
|
Washer
|
76*44*4mm
|
251 Pcs
|
501 Pcs
|
|
|||
|
Bolts & Nuts
|
M16*35mm
|
2000 Sets
|
2000 Sets
|
|
|||
|
Bolts & Nuts
|
M16*42mm
|
251 Sets
|
501 Sets
|
|
|||
|
Bolts & Nuts
|
M16*150/170mm
|
251 Sets
|
501 Sets
|
|
|||
|

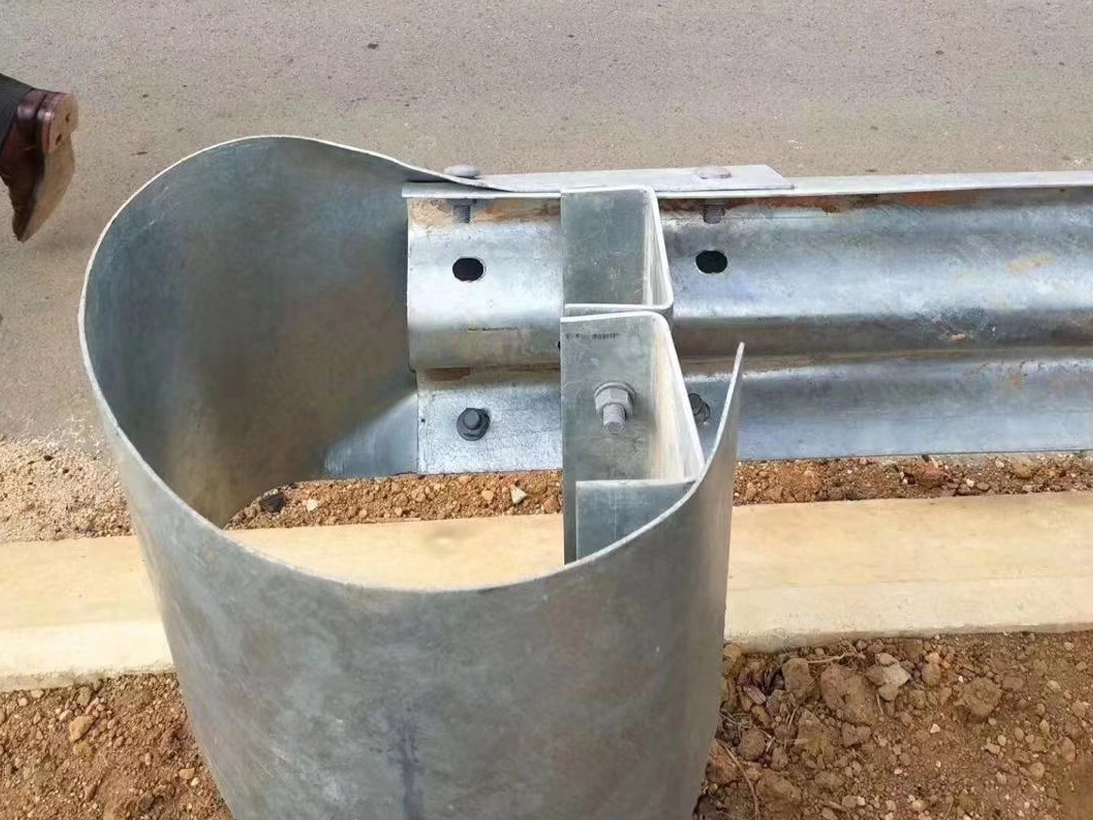

Terminal End
|
R160
|
2 Pcs
|
2 Pcs
|
|
|||
|
Notes
|
1.Shape:Three waves, Thrie-beam
2.Normal Specification: 4320*506*83*3mm. Other different sizes are available. 3.Highway guardrail Standards: JT/T281-2007，AASHTO M-180, RALRG620,SPS98S 4.Steel Material: Q235, Q345, S235JR, S275JR, S355JR 5. The thickness of the steel: 2.75mm, 3mm, 4mm or based on consumers’ request. 6. Surface treatment: hot-dip galvanized and galvanized plastic spraying coating. 7.Guardrail relevant parts: Post, Spacer (C, U,H, Round, Square and Sigma types etc) and Fasteners, Bolts & Nuts, Terminal,Reflectors 8. Certificate: ISO9001:2015 |
|
|
|
|||
H Post
C Post
U Post
Round Post
If you need more info, please feel free to contact us. →→ →
Contact Us >
W-Beam Guardrail for Highways
Thrie-Beam Highway Guardrail
Crash test
* As part of the rewrite of NCHRP 350 [NCHRP Project 22-14(2)], the MGS Barrier was successfully tested
* With both the 5000-pound quad cab and 5000-pound 3/4-ton pickup trucks
* With the 2425-pound small car at the 32" rail height
* The MGS Barrier has a greater construction tolerance: * Was tested to 32"
* Having all of the components of the MGS system tested at 27 5/8" allows the states to both set a construction tolerance .... for the rail system and to overlay the road without adjusting the system.
* Both tangent and flared terminals were tested in the MGS configuration as an option
* The MGS Guardrail Barrier offers many variables to accommodate the real-world site conditions.
* The SKT and FLEAT were successfully crash tested in the MGS configuration.
There is ongoing funding for the MGS barrier. The MGS system will be tested on a slope, with the posts set on the break line of a 2:1 slope. It will also be tested in a long span application with 3 missing posts.
* With both the 5000-pound quad cab and 5000-pound 3/4-ton pickup trucks
* With the 2425-pound small car at the 32" rail height
* The MGS Barrier has a greater construction tolerance: * Was tested to 32"
* Having all of the components of the MGS system tested at 27 5/8" allows the states to both set a construction tolerance .... for the rail system and to overlay the road without adjusting the system.
* Both tangent and flared terminals were tested in the MGS configuration as an option
* The MGS Guardrail Barrier offers many variables to accommodate the real-world site conditions.
* The SKT and FLEAT were successfully crash tested in the MGS configuration.
There is ongoing funding for the MGS barrier. The MGS system will be tested on a slope, with the posts set on the break line of a 2:1 slope. It will also be tested in a long span application with 3 missing posts.
Find what you need?
company information
HOPE TECHNOLOGY (SHANDONG) CO., LTD,
HOPE TECHNOLOGY (SHANDONG) CO., LTD, established in 2016, specialized in manufacturingand exporting high.way guardrail and accessories. Hope guardrails are successfully ex-ported to Malaysia, Indonesia, Romania,Tanzania, Mozambique, Ghana, Chile, etc. Our main products include Galvanized W beam, Steel Posts (C Post, U Post, H Post,Round Postand Siama Post. etc), bolt and nut. washer. spacer, block and other rele.vant quardrail components. TheStandards are AASHTO,ASTM, EN ISO and Chinese Na-tional Standard, client' s drawingsand specifications are also available. Now, hope has three hot-dip galvanizing lines, two electrostatic spray paintinglinesThe annul production capacity can reach 80,000 tons galvanized highway guardrailproducts per year.
If you need more info, please feel free to contact us. →→ →
Contact Us >
Packaging & Shipping
FAQ
1.Will you deliver the goods on time?
Yes,we promise to provide best quality products and delivery in time no matter if the price change lot or not, Honesty is our company's tenet.
2.How can I get your quotation as soon as possible?
The email and fax will be checked in 24 hours, meanwhile, the skype will be online in 24 hours
Please tell us the order information about quantity, Specification(steel type, material, size )and destination port, you will get the latest price.
3.How about the sample if i need?
The sample will be offered for free if you need, but the freight will be covered by our customer. If
we have cooperation, the freight will be covered by our company.
4.How about the MOQ?
Generally, the trail order will be accepted.The MOQ can be confirmed according to the different products. For example, the MOQ of PPGI will be 10MT.
5.How about the delivery time?
Within 15-30days after receiving the deposit or L/C at sight.
Of course, the detail will be confirmed by the quantity and the different products.
6.How to order?
Please send us your purchase order by email. Or you can ask us to send you a proforma invoice for your order. We need to know the following information for your order.
7.What is shipment terms?
1. Container ship 2. bulk ship 3. Train
8.Do you have English Mill Test Certificates?
Yes,that is what we give gurantee to our clients
9.Do you accept the third party inspection?
Yes,absolutely we accept.
