Quick Details
-
Brand Name:
-
SHBF
Quick Details
-
Port Size:
-
50
-
Place of Origin:
-
Shaanxi, China
-
Model Number:
-
Q45F-16C
-
Brand Name:
-
SHBF

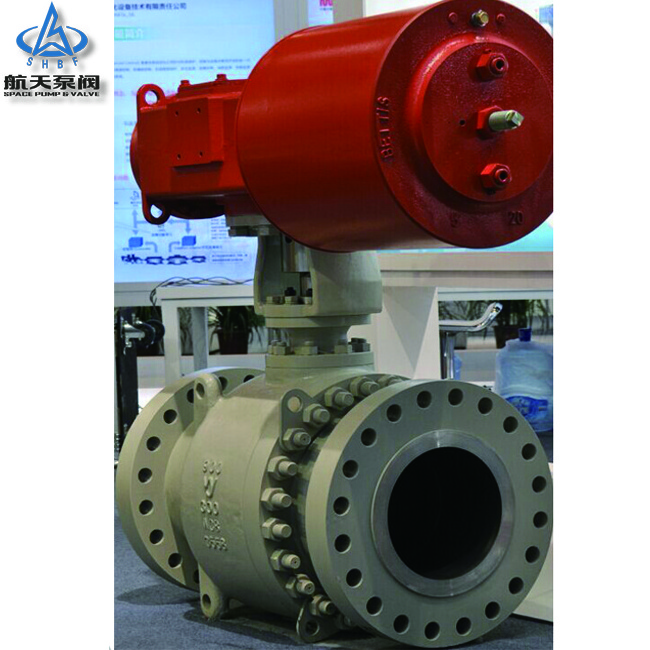

Pipeline Ball Valve
Using a corrosion resistant designing and low coefficient of friction bearings, even under the effects of high pressure pipeline, can also minimized torque to facilitate the valve switching. Bi-directional sealing performance of inlet and the outlet valve seat. When the pipeline in accident, fire the valves and valve seats inside burned or damaged, under the force of spring metal seat automatically closely aligns to the ball, that only a small leak between the valve seat and ball, will effectively prevent the fire spread. The unique design of anti-static device, effectively prevent the discharge phenomenon, and built-in anti-blow-out stem design, effectively prevent stem ejected. When the valve is an accident of emergency, first, valve will closed, then sealant injected device inject into sealant to sealing against the valve seat and ball. In the normal times can be used to increase lubricant.
Pipeline ball valve main performance and specifications
|
PN ( MPa ) |
Maximum Working Pressure ( MPa ) |
Test Pressure ( MPa ) |
Pressure Stage
|
Maximum Working Pressure ( Mpa ) |
Text Pressure
(
MPa
)
|
||||
|
Shell |
High pressure hydraulic seal |
Low pressure gas seals |
Shell |
High pressure hydraulic seal |
Low pressure gas seals |
||||
|
1.6 |
1.6 |
2.4 |
1.76 |
0.6 |
CLASS150 |
1.94 |
2.94 |
2.16 |
0.6 |
|
2.5 |
2.5 |
3.75 |
2.75 |
CLASS300 |
5.1 |
7.67 |
5.62 |
||
|
4.0 |
4.0 |
6.0 |
4.4 |
CLASS600 |
10.2 |
15.3 |
11.23 |
||
|
6.4 |
6.4 |
9.6 |
7 |
CLASS900 |
15.1 |
23 |
16.85 |
||
|
10.0 |
10.0 |
15 |
11 |
CLASS1500 |
25.1 |
37.5 |
27.5 |
||
|
Application Specification |
Structural length |
GB12221-89 ANSI B16.10 |
|||||||
|
Flange size |
JB79-59 GB 9113 HG20592-97 ANSI B16.5 |
||||||||
|
Welding standards |
GB12224-89 ANSI B16.25 |
||||||||
|
Inspection and Test |
JB/T 9092-99 API 598 |
||||||||
|
Working conditions
|
Medium |
Natural gas, liquefied gas oil and other medium |
|||||||
|
Applicable temperature |
-28 ℃ ~ ≤150 ℃ |
||||||||
|
Driving mode |
Worm gear, pneumatic, electric, gas liquid interaction, etc. |
||||||||
Please send me your requirment, then we could offer you the suitable style and competitive price.
