Quick Details
-
Material:
-
Aluminum Alloy
-
Fixture Size:
-
7.17" * 2.37" * 1.44" (182 * 60 * 36.5mm) 750g
-
Warranty:
-
5 Years
-
Certification:
-
CE ROHS BIS CCC PSE ENEC TUV CB KS
-
Efficiency:
-
91.5% - 93%
-
Power Factor:
-
0.99@120V 0.96@220V
-
IP Class:
-
IP67 waterproof / rainproof
-
Function:
-
Adjustable Output Current (AOC) with Dip-switch
-
Features:
-
SELV, Input Surge Protection: 6kV line-line, 10kV line-earth
Quick Details
-
Output Power:
-
51 - 100W
-
Input Voltage:
-
110V 220V 90-305Vac
-
Place of Origin:
-
Zhejiang, China
-
Material:
-
Aluminum Alloy
-
Fixture Size:
-
7.17" * 2.37" * 1.44" (182 * 60 * 36.5mm) 750g
-
Warranty:
-
5 Years
-
Certification:
-
CE ROHS BIS CCC PSE ENEC TUV CB KS
-
Efficiency:
-
91.5% - 93%
-
Power Factor:
-
0.99@120V 0.96@220V
-
IP Class:
-
IP67 waterproof / rainproof
-
Function:
-
Adjustable Output Current (AOC) with Dip-switch
-
Features:
-
SELV, Input Surge Protection: 6kV line-line, 10kV line-earth
Inventronics BIS Approved IP67 Waterproof 80W 36V Constant Current LED Street Light Driver 100W
220Vac CC LED Driver
26-320W CC LED Driver
Potentiometer AOC CC
Dip-switch AOC CC
Waterproof CV
220V 0-10V PWM Timer 220V 110V Dimmable 7 Years Warranty IP67 300W+ High Power CC DALI LED Driver
10 Years Guarantee 380Vac+ High Voltage Input UFO Round Shape CC Internal Use CC Dimmable Programmer SPD
Features :
- High Efficiency (Up to 93%)
- Full Power at Wide Output Current Range (Constant Power)
- Adjustable Output Current (AOC) with Dip-switch
- Non-dimming Control
- Input Surge Protection: 6kV line-line, 10kV line-earth
- All-Around Protection: OVP, SCP, OTP
- Waterproof (IP67)
- SELV Output
- Suitable for Independent Use
Description :

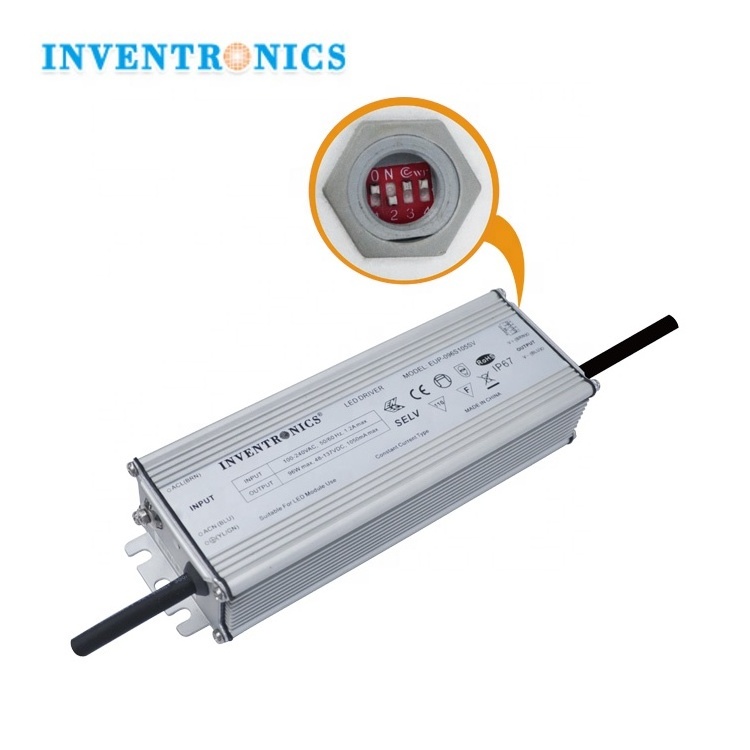

The EUP-096SxxxSV series is a 96W, constant-current, AOC LED driver that operates from 90-305 Vac input with excellent power factor. It is created for street, tunnel and bay lights. The high efficiency of these drivers and compact metal case enables them to run cooler, significantly improving reliability and extending product life. To ensure trouble-free operation, protection is provided against input surge, output over voltage, short circuit, and over temperature.
| Adjustable Output Current Range | Full-Power Current Range (1) | Default Output Current | Input Voltage Range (2) | Output Voltage Range | Max Output Power | Typical Efficiency (3) | Power Factor | Model Number | |
| 120Vac | 220Vac | ||||||||
| 350mA-700mA | 450mA-700mA | 550mA | 90-305Vac 127-250Vdc | 74-213Vdc | 96W | 93% | 0.99 | 0.96 | EUP-096S070SV |
| 700mA-1050mA | 700mA-1050mA | 700mA | 48-137Vdc | 93% | EUP-096S105SV | ||||
| 1000mA-2100mA | 1400mA-2100mA | 2100mA | 24-69Vdc | 92% | EUP-096S210SV(4) | ||||
| 2100mA-3500mA | 2625mA-3500mA | 2800mA | 14-39Vdc | 91.5% | EUP-096S350SV(4) | ||||
See What Other Customers Say About Chela's Service:
(For more details, please contact Chela Chen for the datasheet.)
More Models In EUP Series:
| EUP-075S070SV | EUP-075S070ST | EUP-096S070SV | EUP-096S070ST | EUP-150S070SV | EUP-150S070ST |
| EUP-075S105SV | EUP-075S105ST | EUP-096S105SV | EUP-096S105ST | EUP-150S105SV | EUP-150S105ST |
| EUP-075S175SV | EUP-075S175ST | EUP-096S210SV | EUP-096S210ST | EUP-150S210SV | EUP-150S210ST |
| EUP-075S280SV | EUP-075S280ST | EUP-096S350SV | EUP-096S350ST | EUP-150S350SV | EUP-150S350ST |
| EUP-150S560SV | EUP-150S560ST | ||||
| EUP-200S105SV | EUP-200S105ST | EUP-240S105SV | EUP-240S105ST | ||
| EUP-200S150SV | EUP-200S150ST | EUP-240S150SV | EUP-240S150ST | ||
| EUP-200S210SV | EUP-200S210ST | EUP-240S210SV | EUP-240S210ST | ||
| EUP-200S350SV | EUP-200S350ST | EUP-240S420SV | EUP-240S420ST | ||
| EUP-200S560SV | EUP-200S560ST | EUP-240S670SV | EUP-240S670ST |
