Quick Details
-
Model Number:
-
IDI-M100
-
suitable size of tablets:
-
3-30mm
-
suitable size of capsules:
-
000-5#
Quick Details
-
Type:
-
IDI-M100
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
DEVELOP-MC
-
Model Number:
-
IDI-M100
-
suitable size of tablets:
-
3-30mm
-
suitable size of capsules:
-
000-5#

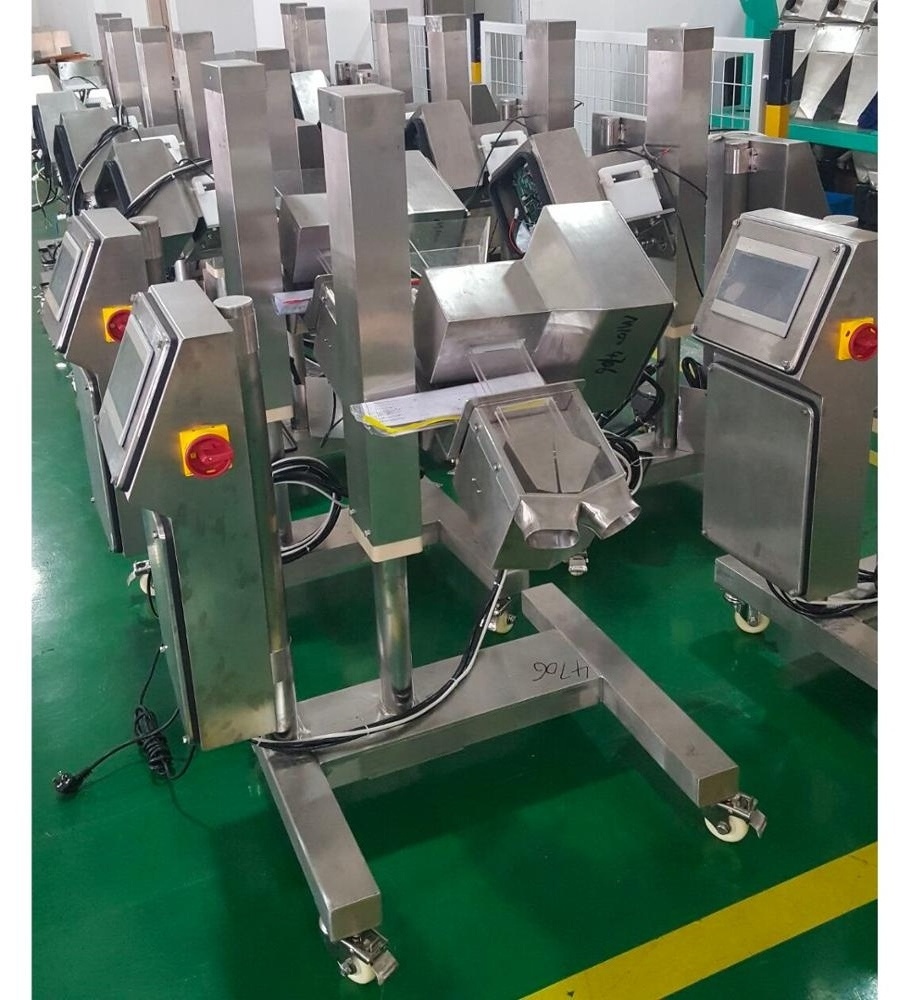

IDI-M100 Inline Tablet Capsule Metal Detector
Product Usage:
Can be used for tablet press, capsule filling machine, sieve machine and other pharmaceutical equipment, apply to tablets, capsules of metal foreign body detection.
Features:
high frequency operation mode, greatly enhance the detection sensitivity.
Precise and efficient removal of equipment to minimize material waste.
meet the pharmaceutical regulatory standards, in accordance with the GMP standard manufacturing.
Touch screen display, easy to set up and operate.
The height angle of the device can be easily adjusted, and the universal casters ensure easy movement.
Device parameters :
|
name |
All-digital intelligent metal detector |
|
model |
IDI-M100 |
|
Main material |
Made of all stainless steel |
|
Detection sensitivity |
Air machine: Fe ≥ φ0.6mm No-fe≥φ0.8mm Sus304≥φ0.8mm |
|
Effectively detect the hole width |
100mm |
|
Effectively detect hole height |
25mm |
|
Operation interface |
touch screen |
|
Alarm mode |
Sound and light alarm, copy automatically removed |
|
Body material |
Subject SUS304 |
|
Record function |
99 species |
|
Self-learning function |
Quickly learn product features and complete automatic setup |
|
Phase tracking function |
Maintain a stable high-precision detection capability |
|
Product tracking function |
Automatic adjustment of the internal adjustment according to the change of the product effect |
|
Optimize the hardware structure |
Using single-chip high-performance FPGA hardware program to provide hardware base |
|
speed |
Free to fall |
|
Power requirements |
AC220V (other requirements optional) |
|
Protection class |
IP54 |
|
Overall size |
870*650*1000mm |
|
Net weight |
100kg |
