Quick Details
-
Brand Name:
-
WIN YOU
-
Weight:
-
41kg
-
Dimension(L*W*H):
-
Depands
-
Certification:
-
ISO
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Name:
-
agriculture machine
Quick Details
-
Warranty:
-
1 Year
-
Use:
-
Farm,tilling, ploughing,land cultivating,ect
-
Place of Origin:
-
Chongqing, China
-
Brand Name:
-
WIN YOU
-
Weight:
-
41kg
-
Dimension(L*W*H):
-
Depands
-
Certification:
-
ISO
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Name:
-
agriculture machine

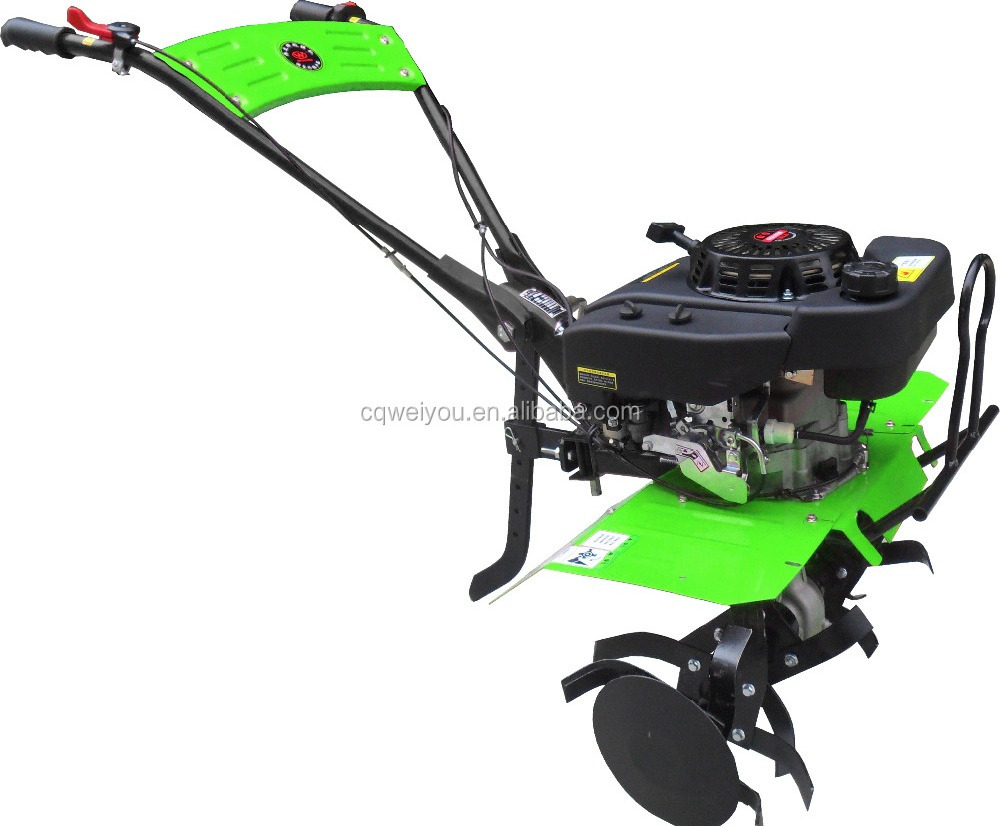

Great agriculture machinery equipment,mini power tiller with honda engine,hand ploughing machine
| Tiller | Model | WY400A | WY400B | WY400C | WY400D |
| Body size | 1250*550*850mm | 1350x720x880mm | 1350x720x880mm | 1350*850*880mm | |
| Tilling scope | 550mm | 750mm | 750mm | 850mm | |
| Tilling depth | ≥100mm | ||||
| Gear shifting | 0,1 | ||||
| Transmission Type | Gear | ||||
| Transmission oil | 0.6L | ||||
| Clutch type | Shoe block type | ||||
| Engine | Engine Model | WY1P70FV | WY1P70FV-2 | ||
| Engine type | Single cylinder,air cooled,4-stroke | ||||
| Bore x stroke | 70*45mm | 70x51mm | |||
| displacement | 173ml | 196ml | |||
| Start mode | Recoil | ||||
| Fuel tank capacity | 1.5L | ||||
| Oil capacity | 0.6L | ||||
| Recommded power | 3.2kw/1800rpm | 4.0kw/3600rpm | |||
| Spare parts | Blade | 4pieces,2groups(16pieces) | |||
| Wheel | 3.50-4 | ||||
Gearbox for rotary tiller
Engine Type: horizontal engine
Horse power of engine :7.0hp
Every year has new design.
Adopt to ISO9001.
Every parts of product need to be checked very well before shipping.
Engineer is available after sale,also free spare parts in the warranty time.
CHOOSE US,WE WON'T LET YOU DOWN!
CLICK TO VIEW MORE PRODUCTS...
Tiller WY360 Tiller WY400 Tiller WY 500
Tiller WY 900 Tiller WY 1080 Tiller WY 1100
Engine
Pump
high pressure fire-fighting water pump
Generator
- Packaging Details: standard packing with iron fram inside
- Delivery Detail: 15-25days
The details of the Accesories.
