Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Yuzun
-
Model Number:
-
YZ-N313TR18F
-
Style:
-
ptz camera
-
Lens:
-
5.35-96.3mm Varifocal Lens
-
Image Sensor:
-
1/3" CMOS
-
Product name:
-

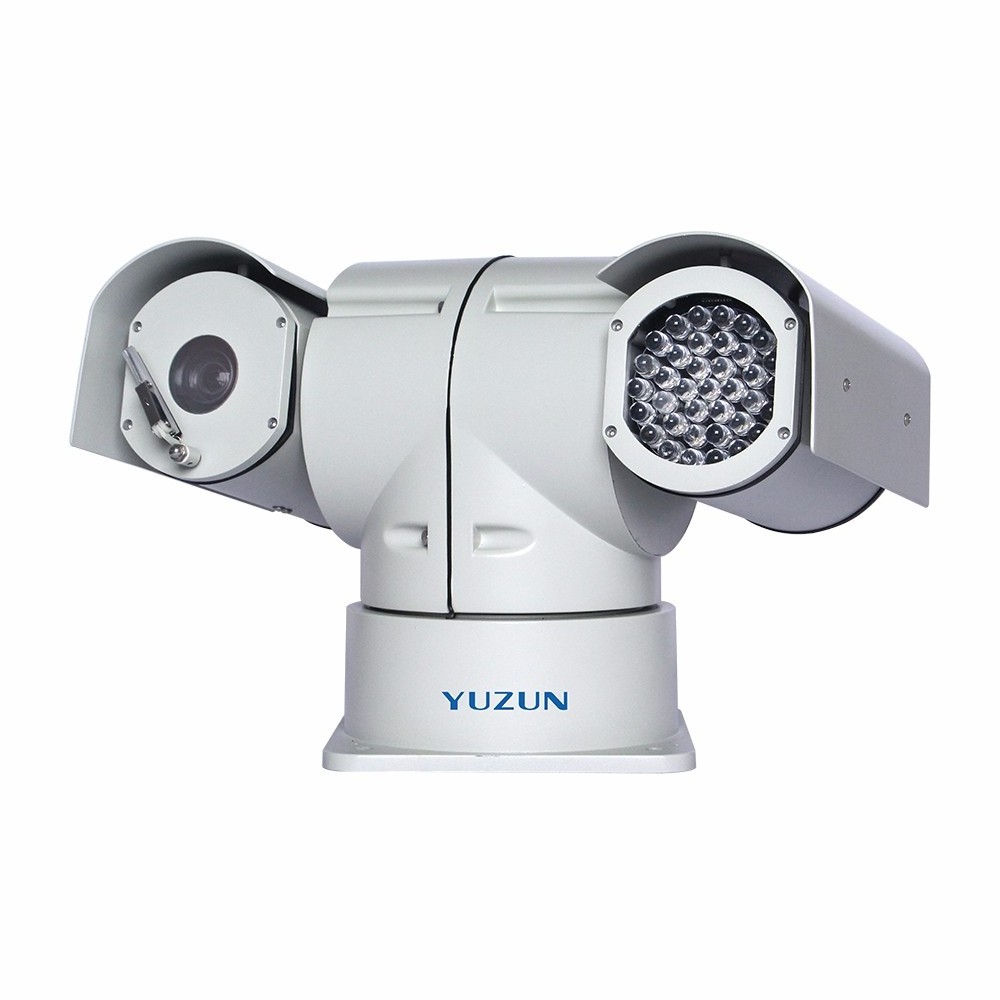

High definition outdoor vehicle intelligent IR speed IP PTZ camera
-
IR Distance:
-
150m
-
Feature:
-
Night Version
-
Power Supply:
-
DC12V/AC24V
-
Keyword:
-
ourdoor IR PTZ camera
Quick Details
-
Special Features:
-
Waterproof / Weatherproof
-
Function:
-
Waterproof / Weatherproof
-
Customized support:
-
Online technical support, Customized logo, OEM, ODM
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Yuzun
-
Model Number:
-
YZ-N313TR18F
-
Style:
-
ptz camera
-
Lens:
-
5.35-96.3mm Varifocal Lens
-
Image Sensor:
-
1/3" CMOS
-
Product name:
-
High definition outdoor vehicle intelligent IR speed IP PTZ camera
-
IR Distance:
-
150m
-
Feature:
-
Night Version
-
Power Supply:
-
DC12V/AC24V
-
Keyword:
-
ourdoor IR PTZ camera
High definition outdoor vehicle intelligent IR speed IP PTZ camera
-
ourdoor IR PTZ camera
-
IR ptz camera
-
ourdoor PTZ camera
High definition outdoor vehicle intelligent IR speed IP PTZ camera
|
Model |
YZ-N313TR18F |
|
Video and audio |
|
|
Video compression |
H.264 High Profile @Level 4.0 |
|
Main processor |
32bit dual core high performance DSP |
|
Image sensor |
1/3”CMOS |
|
Effective pixels |
1.3 mega pixels |
|
TV line |
≥750TVL |
|
Video frame rate |
First stream:1280*960@20fps |
|
Second stream:320*240@25fps |
|
|
First stream:1280*720@25fps |
|
|
Second stream:352*192@25fps |
|
|
Maximum resolution |
First stream:1280*960 |
|
Second stream:320*240 |
|
|
Video bit rate |
0.1Mbps-6Mbps adjustable |
|
Video stream |
Dual stream, AVI format, at maximum resolution to 25 FPS while the sync output of multi-channel video stream |
|
Camera module |
|
|
Focal length |
5.35-96.3mm |
|
Zoom |
18x optics , 12x digital |
|
Min. illumination (LUX) |
Color : 0.05/F1.6 ; Monochrome : 0.005/F1.6 |
|
White balance |
Automatic white balance / manual |
|
3D noise reduction |
Support |
|
Low illumination enhanced |
Support |
|
Function |
|
|
Rotation range |
Horizontal : 0~360°;vertical:-90°~90° |
|
Rotation speed |
Horizontal : 0.1~60°/s;vertical:0.1~60°/s |
|
Preset point |
128 |
|
Linear scanning |
3 lines |
|
Trajectory |
Maximum record and demonstration 4 groups of trajectory of scanning path, maximum including 100 actions for each group |
|
PTZ function |
Humanization focus, automatic speed matching function, power outage memory function |
|
Network |
|
|
Network protocols |
IPv4 , TCP/IP , UDP , HTTP , RTP/RTCP/RTSP , FTP , UPnP , DDNS , NTP , IGMP , ICMP ; |
|
Access protocol |
Standard ONVIF2.0 protocol , GB28181protocol ; |
|
Safety |
Password protection , multi-user access , access authorized |
|
IE application |
Support web configuration , support OSD character overlay , channel title and time information |
|
System integration |
|
|
APP interface |
Support integrated API,SDK |
|
IR distance |
Adopt lasting IR technology , the distance up to 150 meters , capture objects quickly in the dark . |
|
Network interface |
1 RJ45 10Base-T/100Base-TX |
|
Other |
|
|
Power supply |
AC24V / DC12V |
|
Power consumption |
<60W |
|
Working environment |
Working temperature -35℃~+55℃(heater activated -40℃-+50℃);working humidity ≤ 90% |
|
Housing |
Aluminum alloy die casting |
|
IP rating |
IP66 |
|
Dimension (mm) |
No package: Φ372*238 , Package: Φ 480*460*360 |
|
Weight |
No package : 6 kg, Package : 11.2kg |
