Quick Details
-
Voltage:
-
380V or optional
-
Power:
-
4
-
Dimension(L*W*H):
-
1080*600*1390
-
Weight (KG):
-
880
-
Specification:
-
C41-40kg(single)
-
Max. hit energy:
-
0.53kj
-
Height of working area:
-
245mm
-
Hit number:
-
245 min-1
-
Max. square steel can be forged:
-
52*52mm
-
Max. round steel can be forged(Diameter):
-
68mm
-
Motor power:
-
4kw
-
Speeds of motor:
-
1440 r.p.m
-
Total weight:
-
880kg
-
Overall dimensions(L*W*H):
-
1080*600*1389mm
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Matsumoto
-
Machine Type:
-
vertical
-
Voltage:
-
380V or optional
-
Power:
-
4
-
Dimension(L*W*H):
-
1080*600*1390
-
Weight (KG):
-
880
-
Specification:
-
C41-40kg(single)
-
Max. hit energy:
-
0.53kj
-
Height of working area:
-
245mm
-
Hit number:
-
245 min-1
-
Max. square steel can be forged:
-
52*52mm
-
Max. round steel can be forged(Diameter):
-
68mm
-
Motor power:
-
4kw
-
Speeds of motor:
-
1440 r.p.m
-
Total weight:
-
880kg
-
Overall dimensions(L*W*H):
-
1080*600*1389mm
Products Description
Product Paramenters

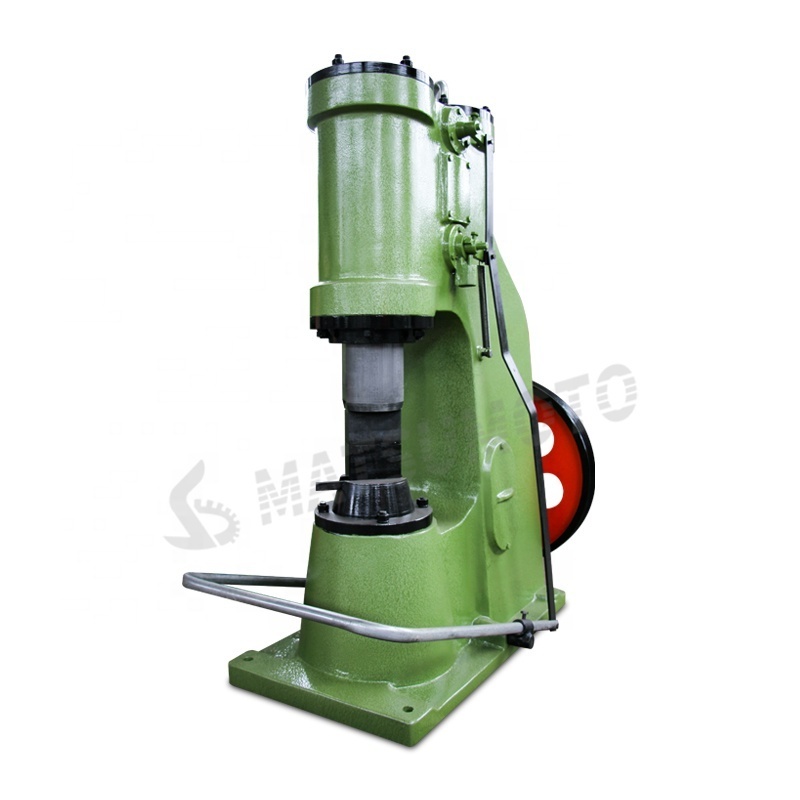

C41-40KG Pneumatic Air Forging Hammer
Specifications
1. It is used for forging and shaping work pieces.
2. It is easy to operate through controlling the travel of top swage.
Features
1. The air hammer is used for forging and shaping work pieces.
2. The air hammer is easy to operate through controlling the travel of top swage by a foot rest lever.
3. It's models range from 16KG to 150KG.
4. It is widely used for general forging works, such as drawing out, upsetting, punching, chiseling, forging, welding, bending and twisting.
5. It is also used for forging in bolster dies.
|
SPECIFICATION
|
UNIT
|
C41-40kg(single)
|
C41-40kg(single with base)
|
|
Max. hit energy
|
kj
|
0.53
|
0.53
|
|
Height of working area
|
mm
|
245
|
245
|
|
Hit number
|
min-1
|
245
|
245
|
|
Dimension of top and bottom die surface(L*W)
|
mm
|
120*50
|
120*50
|
|
Max. square steel can be forged
|
mm
|
52*52
|
52*52
|
|
Max. round steel can be forged(Diameter)
|
mm
|
68
|
68
|
|
Motor power
|
kw
|
4
|
4
|
|
Speeds of motor
|
r.p.m
|
1440
|
1440
|
|
Base plate weight
|
kg
|
-
|
100
|
|
Total weight
|
kg
|
880
|
980
|
|
Overall dimensions(L*W*H)
|
mm
|
1080*600*1389
|
1220*600*1630
|
Details Images
