Quick Details
-
Warranty:
-
1 Year
-
Certification:
-
FCC, CE, RoHS
-
Product name:
-
Portable Kit AC Home Small Mini Windmill Wind Turbine Generator
-
Rated power:
-
1000W
-
Rated voltage:
-
24v/48v
-
Blades number:
-
3 PCS
-
Blades material:
-
Reinforced glass fiber
-
Start up wind speed:
-
2.5m/s(5.6mph)
-
Rated wind speed:
-
12.5m/s(25mph)
-
generator:
-
Three-phase AC permanent magnet synchronous generator
-
Body material:
-
Casting aluminum
-
Tower type:
-
Guyed tower
Quick Details
-
Place of Origin:
-
Fujian,China
-
Brand Name:
-
Mars Rock
-
Model Number:
-
1000M5
-
Warranty:
-
1 Year
-
Certification:
-
FCC, CE, RoHS
-
Product name:
-
Portable Kit AC Home Small Mini Windmill Wind Turbine Generator
-
Rated power:
-
1000W
-
Rated voltage:
-
24v/48v
-
Blades number:
-
3 PCS
-
Blades material:
-
Reinforced glass fiber
-
Start up wind speed:
-
2.5m/s(5.6mph)
-
Rated wind speed:
-
12.5m/s(25mph)
-
generator:
-
Three-phase AC permanent magnet synchronous generator
-
Body material:
-
Casting aluminum
-
Tower type:
-
Guyed tower
Recommend Products
Product Description
![](https://cdn.bestsuppliers.com/seo_products_img/marsrock/12fa335b52013cb48ad3fceab377ee8b.jpg!/rotate/180)
Product features
1. Low start up speed; high wind energy utilization; beautiful appearance; low vibration;
2. Human friendly design, easy installation, maintenance and repair;
3. Precise injection molding blades together with the optimized design of aerodynamic contour and structure, the blades have such advantages: high uilization of wind energy which contributes to the annual
energy output;
4.the generators, adopting patented permanent magnet rotor alternator,with a special kind of stator design, efficiently decrease resistance torque. Meanwhile, it makes the wind turbines match the generators quite
well and increase its reliability;
5.Aluminum alloy body, anti-corrosion treatment, resistant to to acid and alkali, applicable in salty environment.
Reminder:
Dear customers, it's Wind turbine generator only, not include the tower pole, if you need tower pole, controlelr, etc, please contact our sales.
1000W M5 Series Wind Turbine Generator
![](https://cdn.bestsuppliers.com/seo_products_img/marsrock/ae5deee728e23b37a776d3237a375940.jpg!/rotate/180)
Specification
Model
|
700M2
|
800M4
|
1000M5
|
1500L
|
2000L
|
2500L
|
3000L
|
||||||
Max Power
|
700w
|
800w
|
1000w
|
1500w
|
2000
|
2500w
|
3000w
|
||||||
Rated voltage
|
24v/48v
|
24v/48v
|
24v/48v
|
24v/48v
|
48V/96V
|
48V/96V
|
96V
|
||||||
Start-up wind speed
|
2.5m/s
|
2.5m/s
|
2.5m/s
|
2.5m/s
|
2.5m/s
|
2.5m/s
|
2.5m/s
|
||||||
Rated wind speed
|
12m/s
|
11m/s
|
12.5m/s
|
11m/s
|
11m/s
|
11m/s
|
11m/s
|
||||||
Survival wind speed
|
45m/s
|
45m/s
|
40m/s
|
45m/s
|
45m/s
|
45m/s
|
45m/s
|
||||||
Top net weight
|
15.5kg
|
20kg
|
29kg
|
45kg
|
50kg
|
55kg
|
60kg
|
||||||
Wheel diameter
|
1.75m
|
1.85m
|
2.2m
|
2.9m
|
3.2m
|
3.7m
|
4.7m
|
||||||
Number of blades
|
3
|
3
|
3
|
3
|
3
|
3
|
3
|
||||||
Blades material
|
Reinforced glass fiber
|
|
|
|
|
|
|
||||||
generator
|
Three-phase AC permanent magnet synchronous generator
|
|
|
|
|
|
|
||||||
Body material
|
Casting aluminum
|
|
|
|
|
|
|
||||||
Control system
|
Electronic-magnet &automatically adjust the windward Angle
|
|
|
|
|
|
|
||||||
protection
|
Electronic magnet/mechanic furling
|
|
|
|
|
|
|
||||||
lubrication
|
Lubrication grease
|
|
|
|
|
|
|
||||||
Working temperature
|
-40℃-80℃
|
|
|
|
|
|
|
||||||
Tower type
|
Guyed tower
|
|
|
|
|
|
|
||||||
Gross Weight
|
21kg
|
27kg
|
36kg
|
55kg
|
63kg
|
70kg
|
75kg
|
Reasonable installation location
The best location to install a wind turbine is often a compromise. Local building restrictions, the height of surrounding structures, cable length, and available open space may require cable be installed in a less than optimum location. In general cable will produce more power if installed on a taller tower.However, towers are expensive so it is important to balance performance( tower height) to installed cost in order to achieve the lowest cost of energy and the quickest payback.
![](https://cdn.bestsuppliers.com/seo_products_img/marsrock/fdde10cc98513690b9e4c63b27722970.png!/rotate/180)
Item
|
Wind Series
|
S series
|
M series
|
L series
|
|
G series
|
|
||
|
Wind Power
|
100W-600W
|
500W-1KW
|
1K
|
2K-2.5KW
|
3KW-5KW
|
5K-10K
|
||
Tower Pole
|
High/H1
|
6 M
|
6 M
|
6 M
|
9 M
|
9 M
|
12 M
|
||
|
Diameter
|
48mm
|
48mm
|
76mm
|
89mm
|
165mm
|
219mm
|
||
|
Thickness
|
2.5mm
|
2.5mm
|
3.5mm
|
4mm
|
5mm
|
6mm
|
||
Obstacle Distance
|
O1
|
4 M
|
4 M
|
4 M
|
6.5 M
|
6.5 M
|
6.5 M
|
||
|
O2
|
30 M
|
30 M
|
30 M
|
35 M
|
35 M
|
35 M
|
||
Steel Cable
|
L1
|
7.5 M
|
7.5 M
|
7.5 M
|
7.5 M
|
7.5 M
|
7.5 M
|
||
|
L2
|
0
|
0
|
0
|
12 M
|
12 M
|
16 M
|
||
|
H1
|
5.5 M
|
5.5 M
|
5.5 M
|
5.5 M
|
8.5 M
|
8.5 M
|
||
|
H2
|
0
|
0
|
0
|
8.5 M
|
8.5 M
|
11.5 M
|
MPPT
Wind Turbines Grid Tie Inverter with Limiter
Stystem Connecting
On Grid System.
This system combining with a small grid tie inverter and a wind turbine, dump load resistor, and a set of the installation kit.
The inverter can be connected to any outlets of the utility grid at the house. The small grid tie inverter monitors the volume, frequency, and phase of the home utility grid, producing pure sine wave AC power that the frequency and phase are the same as the grids. The volume is a bit higher than the grid's, then according to the current-controlled PWM, to control the output power to the grid. The small grid tie inverter puts out power when the home grid is on.
When the wind turbine is rotating, and its output of the voltage is in the range of the rated input voltage of the inverter, the wind turbine will produce power, and the grid tie inverter will change the power from the wind turbine to the home grid. When the total power of the electric appliance that is using in the house is larger than the output power of the inverters, this power from the inverters will be consumed in the house.
(Click picture for more detatils about the on grid inverter with limiter)

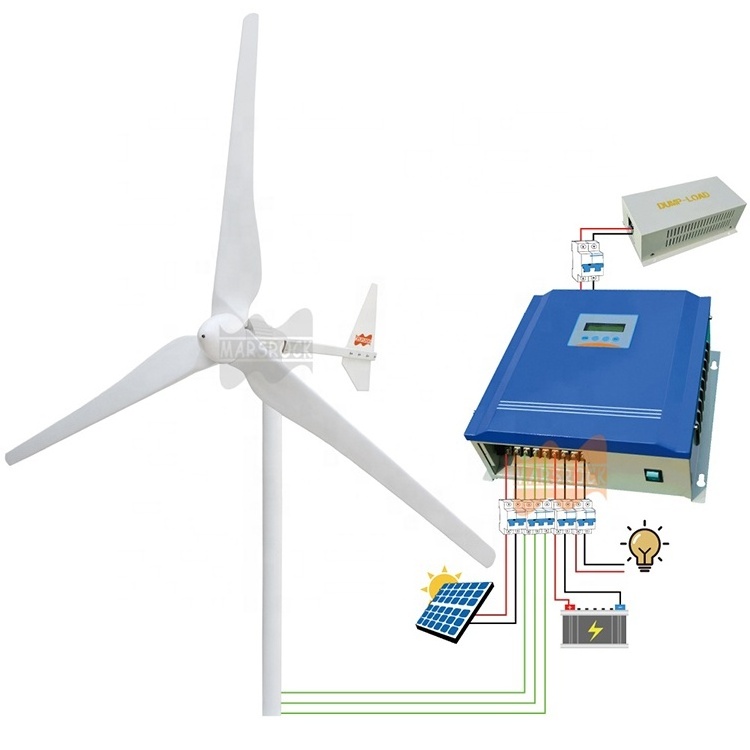

MPPT Hybrid Wind Solar Controller Stystem Connecting
(1)
P
ilot Version
;
Hyrid Wind Solar Controller
Full
protection
function with
LCD
display,
It support
lithium battery
(ternary and iron phosphate) and user set own data.
Solar module workable power: 0W-600W
Wind turbine workable power: 0W-800W
(Click picture for more detatils about the controller)
(2)Deluxe
Version; Hyrid Wind Solar Controller
Inherit all the advantages of the pilot version controller; It support
48V
system voltage; The maximum power available respectively is:
Wind 1000W, solar 1000W;
Optional
Wi-Fi
function to inspect all data on mobile or PC through
APP
.
(Click picture for more detatils about the controller)
(Click picture for more detatils about the controller)
(3)Black Whirlwind Version;
Hyrid Controller
The
core components adopts well-known brands
such as Japan, Germany, and the United States, so the quality is the best and the performance is the most stable;
There are
12V, 24V, 48 system voltage
can be can be selected;
The maximum power available respectively is:
Wind 1000W, Solar 1500W;
Only workable for sealed(Lead-acid) and GEL battery.
(Click picture for more detatils about the controller)
(4)To big power Hybrid PWM controller
It can flexibly customize any powers of solar and wind power, and voltage, but it can only be applied to sealed battery(Lead-acid and GEL);
The large size which has superior heat dissipation performance;
The unloader is large in size, strong in forwarding excess current, and superior in unloading protection performance.
(Click picture for more detatils about the controller)
Product Application
Reminder:
Dear customers, it's Wind turbine generator only, not include the tower pole, if you need tower pole, controlelr, etc, please contact our sales.
Dear customers, it's Wind turbine generator only, not include the tower pole, if you need tower pole, controlelr, etc, please contact our sales.
Packing & Delivery
Reminder:
About sample cost:
The sample is
made by order, it takes time to produce. We offer two method to set your sample out. Sent by Express directly from our office or sent to our oversea warehouse firstly, then dispatch to your address, it will greatly save your shipping cost and tariff, but is time consuming, please contact us for more detail about it.
Certifications
CE Approved.
