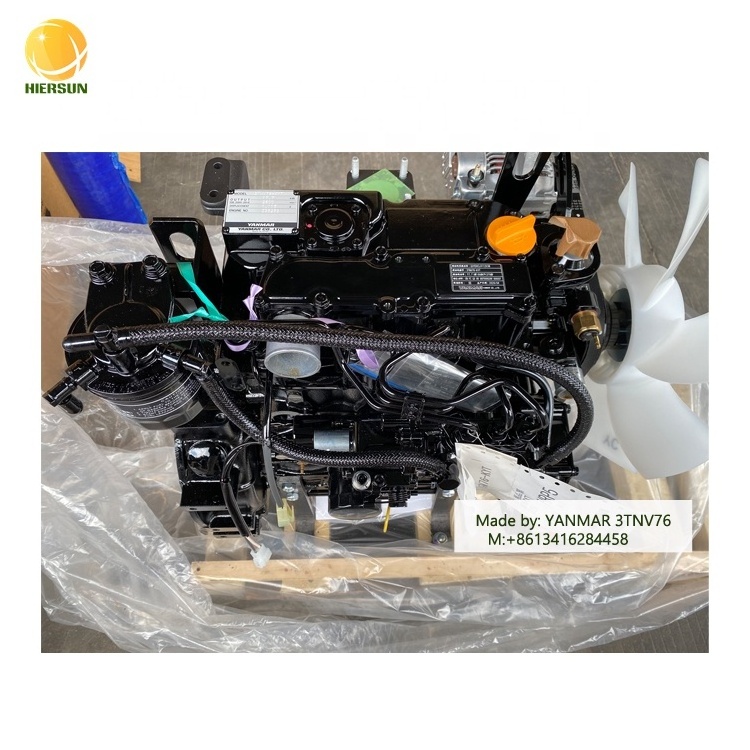

3TNV76 Engine Made By Yanmar Engine 3TNV76 Diesel Engine 17.7KW 2800rpm

FOB Reference Price: Get Latest Price

≥1 Sets

US $3000

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Place of Origin:: Japan

Dimension(L*W*H):: 91*80*93cm

Weight:: 150

Rated power/speed:: 20KW

Marketing Type:: New Product 2022

12/24V start:: water cooled engine

variable speed:: SAE 7 1/2"

Flywheel Housing, SAE #5 t=124:: strong matrial

optional radiator cooling system:: mechanical governor

origin Japan:: made by Yanmar

custom skid size as request:: with folklift device

built inside mulffer:: Liquid Cooled Diesel Engine

Water Pump, Belt Driven:: EPA Tier

international quality standard:: spare parts available worldwide

Application: for agriculture:: Application: for construction

Quick Details

Displacement:: 2L

Emission Standard:: Euro 3

Power:: 14.1KW

Place of Origin:: Japan

Dimension(L*W*H):: 91*80*93cm

Weight:: 150

Rated power/speed:: 20KW

Marketing Type:: New Product 2022

12/24V start:: water cooled engine

variable speed:: SAE 7 1/2"

Flywheel Housing, SAE #5 t=124:: strong matrial

optional radiator cooling system:: mechanical governor

origin Japan:: made by Yanmar

custom skid size as request:: with folklift device

built inside mulffer:: Liquid Cooled Diesel Engine

Water Pump, Belt Driven:: EPA Tier

international quality standard:: spare parts available worldwide

Application: for agriculture:: Application: for construction

3TNV76 Engine Made By Yanmar Engine 3TNV76 Diesel Engine 17.7 2800rpm

Product Description

Diesel Engine 3TNV76 Made by Yanmar engine Industrial Engine water Cooled

Building off the proven TNE design, this engine made by YANMAR has achieved superior exhaust emissions by improving the combustion chamber and fuel injection equipment design. Engines are compliant with 2008 EPA Tier 3 and EU stage III A exhaust emissions regulations.

The TNV engines now proudly take up the running of premium small industrial diesel. They offer even more enhanced durability due to better block cooling, a stiffer crank and pistons, finer tolerance in the journal, and more. CAE analysis has brought lower vibrations and higher strength to the mounting structure for even better reliability in heavy-duty jobs.

Diesel Engine 3TNV76 Made by Yanmar engine Industrial Engine water Cooled application

Application: Small tractors, air compressors, mini excavators, skid-steer loaders, ride-on mowers, and a wide range of other applications in the agricultural, lawn and garden, construction, and materials handling industries.

Diesel Engine 3TNV76 Made by Yanmar engine Industrial Engine water Cooled Specification

Type	3 Cylinder, 4-Cycle, Liquid-Cooled Diesel Engine
Bore	mm
Stroke	mm
Displacement	1.16 L
Aspiration	Naturally Aspirated
Combustion System	Direct Injection
Rotation (from flywheel end)	Counterclockwise
Dry Weight	326 lbs (148 kg)
Number of Cylinders	3
Rated Output	17.7/2800 (hp/rpm)

Fuel Delivery and Economy

A newly designed, in-line ML type fuel injector pump is utilized to assure more precise fuel delivery and control. The result is reduced emissions, improved performance over a wide range of applications, and good fuel economy which assures reputation for superior starting characteristics continues.

Noise Level Reduction

original CAE techniques have optimized the stiffness, minimized transformation, and reduced radiant noise in the cylinder block. Gear noise reduction is achieved through an improved gear tooth profile resulting in less mechanical noise.

Lubrication System

6.7 L Capacity Deep Oil Pan

Trochoid Oil Pump

Paper Element Oil Filter

Oil Pressure Switch

Crankcase Breather, Closed Type

Electrical System

12V, 40 Amp Alternator

12V Starter Motor

12V Super Quick Glow Plugs

Preheat Timer, 15 seconds (shipped loose)

Stop Solenoid Timer, 1 second (shipped loose)
