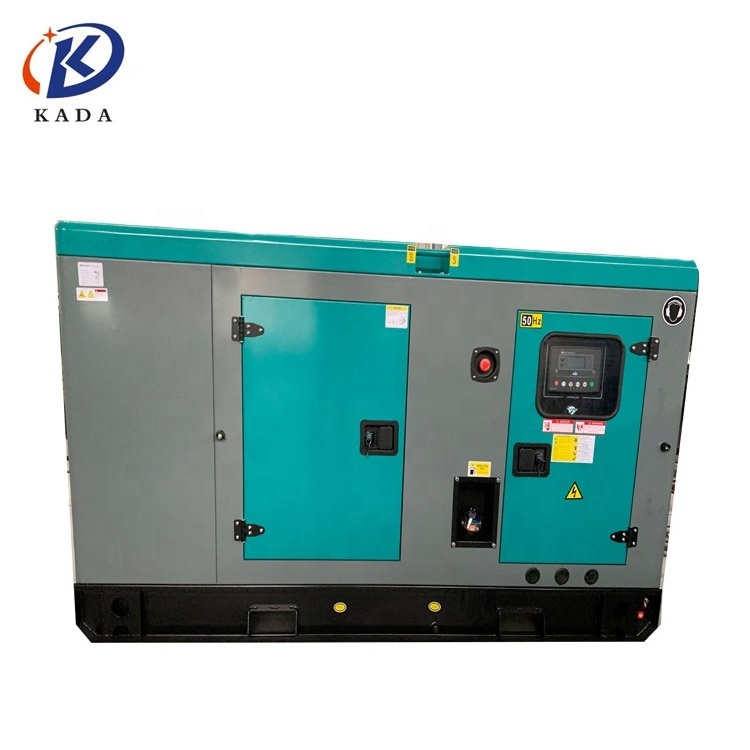

KADA YDS-10KW yangdong generator engine diesel 10kva silent diesel generator price south africa generator silent diesel

KADA YDS-10KW yangdong generator engine diesel 10kva silent diesel generator price south africa generator silent diesel

FOB Reference Price: Get Latest Price

≥1 Sets

US $2462

≥2 Sets

US $2255

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Place of Origin:: Fujian, China

Brand Name:: KADA

Model Number:: YDS-10KW

Speed:: 1500RPM

Weight:: 650KG

Type:: Diesel Generator

Brands:: KADA, OEM

Style:: Silent Canopy

Connecting type:: 1 phase, 2 wire

Cooling method:: Water cooled

Protection grade:: IP23

Speed governing:: Mechanical governor

Starting method:: Auto Start

ATS:: Optional

Fuel Tank:: 10-12 hours

Certification:: CE

Quick Details

Rated Voltage:: 220V

Rated Current:: 45A

Frequency:: 50HZ

Place of Origin:: Fujian, China

Brand Name:: KADA

Model Number:: YDS-10KW

Speed:: 1500RPM

Weight:: 650KG

Type:: Diesel Generator

Brands:: KADA, OEM

Style:: Silent Canopy

Connecting type:: 1 phase, 2 wire

Cooling method:: Water cooled

Protection grade:: IP23

Speed governing:: Mechanical governor

Starting method:: Auto Start

ATS:: Optional

Fuel Tank:: 10-12 hours

Certification:: CE

Introduction

KADA Diesel generator set : Safety – Stability – Economy - Reliability Power

1. Our cooperate with famous diesel engine –Powered by Cumis, Peks, Detz , Doosan, Weichai, Ricardo, Yangdong,ect.
2. Equipped with famous Brushless alternators.
3. Equipped with 50°C radiator with fan, enough engine cooling system guarantee long time working.
4. Equipped with advanced generator set control system, ATS system, remote control system, parallel operation system.
5. Generator set use High-quality steel are thickness canopy -- 2MM to 6MM
6. Equipped with high density sound-absorbing material -- sound insulation, fireproofing
7. Generator equipped with 12V/ 24V DC battery with charger, battery connects wire.
8. Generator equipped with 10-12 hours fuel tank with fuel indicator, long time for working.
9. High protect class control box and power output box. IP55, Waterproof, Electric leakage protect, Breaker
10. New design of turn-back type for air inflow & air outlet which can reduce the noise and improve engine efficiency.
11. Beautiful & practicably design, Bottom hole for forklift, Water outlet & oil outlet for easy maintenance
12. Double open door on both sides of the Gensets. Spacious doors can check for every part of the engine and alternator.
13. All new design for diesel generator set of Silent, Supper silent, Soundproof, Trailer type, Container type.

Diesel generator set Silent / Soundproof type / Open type / Trailer type / container generator

Our generator set compliance with all main standards, such as : GB/T2820, ISO8528,IEC34, CE, EPA Tier4 standard
Diesel generator Prime output power: from 5KVA to 2500KVA
Rated voltage: 120V/240V, 220/380V, 230V/400V, 254V/440V etc. other voltage is optional
Generator Phase and connecting: 3 phase, 4wire.
Rated frequency: 50Hz@1500rpm or 60Hz@1800rpm
Alternator excited type: Brushless, self excited or PMG optional
Alternator Insulation: Class H
Alternator Protection: IP21 ~ IP23
Voltage regulation: AVR automatic control 1%
Altitude above sea level: ≤1000 meters
Ambient air temperature: ≤40°C
Relative air humidity: ≤ 90%

Diesel generator set noise level produced by 6 major sources as below

* Engine noise – from 100 dB(A) to 121 dB(A)
* Cooling fan noise – from 100 dB(A) to 105 dB(A)
* Alternator noise – from 80 dB(A) to 90 dB(A)
* Induction noise – from 80 dB(A) to 90 dB(A)
* Engine exhaust – from 120 dB(A) to 130 dB(A)
* Structural/mechanical noise – caused by mechanical vibration

Advanced design of canopy structure and inner structure made our generators More Silent

Humanized design in canopy and base frame made our generators More Convenient

Special design in details made our generators Rainproof & Rustproof

Specification

Technical data
Genset Model:	YDS-10KW
Prime Power :	10KW/10KVA
Rated Voltage:	220V
Frequency:	50Hz
Power Factor:	1.0(lagging)
The regulating rate of steady voltage :	≤±0.5%
The regulating rate of instantaneous voltage :	≤-15%/ +20%
The time of steady voltage :	≤1.5sec
The waving rate of voltage :	≤1.0%
The regulating rate of steady frequency :	≤3%
The regulating rate of instantaneous frequency:	≤±10%
The time of steady frequency:	3sec
Dimension (L×W×H) (mm) :	19009001200
Genset weight (kg):	800
Diesel Engine Brand:	Chinese yangdong
Number of Cylinders :	4
Rotating Speed :	1500RPM
Cycle:	Four stroke
Type :	Vertical,direct inector,nature aspiration
Bore×Stroke(mm):	80*90
Displacement(L):	1.809
Lubricating Capacity(L):	18
Speed Governor:	Mechanical
Cooling System:	Water-cooled
Speed Stability (%):	≤5%
Fuel Consumption at 100% Load:	2.8L/H
Starting Method:	DC12V Electrical starting
Alternator Brand:	KADA
Model:	KD164C
Number of Phase:	1
Connecting Type:	SAE Flange
Number of Bearing:	1
Grading Protection:	IP23
Altitude :	≤1000m
Exciter Type:	Brushless (AVR automatic voltage regulating)
Insulation Class:	H degree
The components of the genset:	(1) Yangdong Diesel Engine; (2)KADA Alternator; (3) Controller

Specification

Brief Introduction

All diesel generating sets include diesel engine, alternator and control box.Our diesel engine is powered by Cumis, Peks, Detz , Doosan, Weichai, Ricardo, Yangdong,ect.and equipped with famous Brushless alternators and equipped with advanced generator set control system, ATS system, remote control system, parallel operation system, optional control model, Deep sea, Smartgen , ComAp .ect.

Generator Supply Scope

1. Brand New water cooled diesel engine
2. Brand New Stamford,AC alternator, Ratings: 400/230V, 3Ph, 50Hz, 1500Rpm, IP23, H insulation class
3. Radiator with engine driven fan mounted on skid.
4. CHNT,DELIXI,MCCB mounted
5. Anti-vibration mountings as to ensure the compete genset running under stabilization.
6. 24V AC Electric start system and engine driven battery charger, lead-acid type starting batteries

Generator Supply Scope

7. Industrial silencers with flexible connects and elbow
8. Base fuel tank, with fuel gauge integrated in the base frame of generating set
9. Test report of generator, Set of drawings and OEM manuals
10.Optional Choice:Soundproof, ATS (automatic transfer switch), AMF panel, Trailer, Parallel system by your extra choose Engine

Canopy

All canopy designed with modular principles
All metal canopy parts painted by electrostatic polyester power paint
Water proof design ensure that the noise level be controlled in small scope
Convenient to lift and move
Easy to maintain and operate.

Choose of material and canopy structure is the key to lower noise.

Control Systerm

Standard control panel include

digital genset control model, voltmeter, frequency meter, ampere meter, water temperature gauge, oil temperature gauge, oil pressure gauge, emergency button, preheating button, battery voltage gauge, running calculagraph, fuel level meter, circuit breaker,ect

1. Low Oil Pressure ,Volt adjuster and frequency adjuster
2. Over/under voltage ,Over current,Over /under speed
3. Emergency stop ,Fail to start ,High Engine Temperature

The control panel is Quadruplication protection control panel, with the display of frequency table/water temperature/schedule/battery voltmeter. The genset with low oil pressure, high water temperature, over speed emergency, stop and other pre-protection.

The producing progress of generator divide into 8 steps

Steel Cutting > Steel Bending > Steel Welding

> Canopy Assembling > Canopy Painting > Generator Assembling

> Generator Testing >Generator Packing

The enclosure body is made of 2.5mm thickness CRCA/cold rolling cold annealing , and installed on the metallic structural plate frame, it is durable. We use laser cutting, cut steel into the requested size, bend them into different part by machine, final welding into a completed canopy part. Before spray painting, we will assemble these canopy parts into enclosure mould.Worker will fine finish each part into good performance. All canopy components adopt assemblage design. After high-temperature baking, powdered resin coating has some advantage of wear resistance, corrosion resistance, impact resistance, chemical action resistance and so on. Painted canopy , diesel engine , alternator and control system will be assembled into a completed diesel generator set by skilled workers. Each diesel generator set have been got through 2 hours load test for running 0%, 25%,50%, 75%, 100% and 110% load, all protective devices and control function are simulated and checked before packed into standard plastic film and plywood case.

Standard auto-start Protective functions Include
*Low oil pressure
*High water temperature
*High/low voltage
*High Engine Temperature and Overspeed.
*Voltage regulator frequency regulator
*Emergency stop
*Start failure

Battery charge, Automatic transfer switch/ATS or Remote control panel is optional choice for you.

Our generator meets the following quality standards:
BS4999, BS5000, BS5514, IEC 34, VDE0530, NEMA MG-1.22

We give one year warranty for kadapower generator.
All equipment is guaranteed for the period of 1000hours or 12 months from the date of commissioning or 18 months from shipping,whichever occurs first.
