Quick Details
-
Weight:
-
380 kg
-
Production Capacity:
-
100%
-
Power:
-
1.5KW
-
Dimension(L*W*H):
-
830*1000*1200mm
-
Product name:
-
Single head corner combining machine
-
Function:
-
aluminum profile corner combining
-
Keyword:
-
corner combining machine
-
Power supply:
-
380V /220V 50Hz
-
Operation air pressure:
-
0.5 ~ 0.8Mpa
-
Air consumption:
-
2L/min
-
Most pressure:
-
16 Mpa
-
Contour dimension(L*W*H):
-
830*1000*1200mm
-
Machine weight(about):
-
380kg
-
Brand:
-
eworld
Quick Details
-
Marketing Type:
-
Hot Product 2023
-
Brand Name:
-
EWORLD
-
Voltage:
-
380V /220V
-
Weight:
-
380 kg
-
Production Capacity:
-
100%
-
Power:
-
1.5KW
-
Dimension(L*W*H):
-
830*1000*1200mm
-
Product name:
-
Single head corner combining machine
-
Function:
-
aluminum profile corner combining
-
Keyword:
-
corner combining machine
-
Power supply:
-
380V /220V 50Hz
-
Operation air pressure:
-
0.5 ~ 0.8Mpa
-
Air consumption:
-
2L/min
-
Most pressure:
-
16 Mpa
-
Contour dimension(L*W*H):
-
830*1000*1200mm
-
Machine weight(about):
-
380kg
-
Brand:
-
eworld

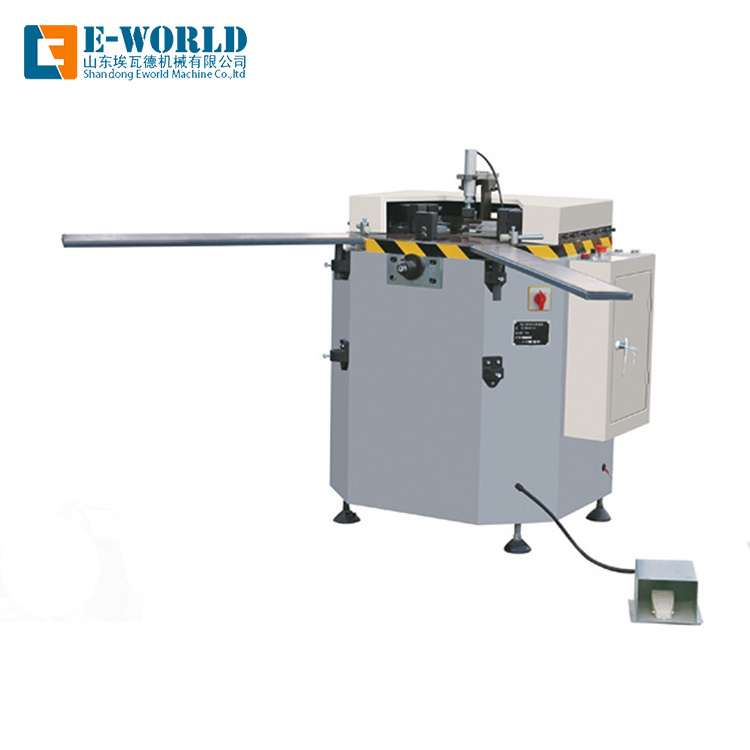

Aluminum window profile combining machine single head aluminum corner crimping machine/window and door making machine
Equipment features
1). The machine is used for production line of hi-grade alu-alloy doors and windows. mainly used for extrusion and connection of 90º seam casement window with angle jointing operation, place an angle-alu in cavities of two driven striking blocks punch towards the flute of angle-alu, Extruding the seam of two profiles makes strength, efficiency and precision of the connection higher than using any means for connection.
2).This machine is used for combining the aluminum profile together to be a whole frame after processed.
3).We also have double head corner combining machine, and four corner combining machine, if you need, I can also list in the quotation, but generally, from begining production, use the single head type is enough for your Aluminum window door production.
4).Before you buy the machine, please make sure then tell me your local power supply,then we can make the right according to your true voltage.
5).We have in store, if you need, we can ship in short time for you.
|
Name
|
Single head corner combining machine
|
|
Operation air pressure
|
0.5 ~ 0.8Mpa
|
|
Motor power
|
1.5 kw
|
|
Air consumption
|
2L/min
|
|
Most pressure
|
16 Mpa
|
|
Contour dimension(L×W×H)
|
830×1000×1200mm
|
|
Machine weight(about)
|
380kg
|
|
Voltage
|
380v/50Hz
|
The machine is used for production line of hi-grade alu-alloy doors and windows. mainly used for extrusion and connection of 90º seam casement window with angle jointing operation, place an angle-alu in cavities of two driven striking blocks punch towards the flute of angle-alu, Extruding the seam of two profiles makes strength, efficiency and precision of the connection higher than using any means for connection.
Before you buy the machine, please make sure then tell me your local power supply,then we can make the right according to your true voltage.
*20years factory production experience
*3 years machine warranty
*156 exported country experience
*20000 square meters Glass machine&upvc windows machine factory
*Shandong Eworld Machine Co., Ltd
Shandong Eworld Machine Co., Ltd is one of the famous and big manufacturers of glass equipment, windows equipment, CNC equipment.
Since its inception in 2002, and after many years of development and growth, the company is now playing a leading role in glass machinery and windows door machine in China .
Eworld group has 2 factories, which are located in Jinan City. Advanced products, exquisite techniques, solid working, and cordial services.
