Quick Details
-
Warranty:
-
1 year
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
OEM
-
Model Number:
-
U5
-
Torque:
-
0-800 Customized
-
Product name:
-
Linear actuator
Quick Details
-
Speed(RPM):
-
3400rpm
-
Continuous Current(A):
-
0.8-5A
-
Efficiency:
-
IE 1
-
Warranty:
-
1 year
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
OEM
-
Model Number:
-
U5
-
Torque:
-
0-800 Customized
-
Product name:
-
Linear actuator
Installation Instructions
Electric actuator Application Photovoltaic, Military Medical Smart Home
Please confirm the product details with customer service before placing an order for all products in this store!
Waterproof 150mm Stroke 24V Compact Electric Linear Actuator For Industry
Please confirm the product details with customer service before placing an order for all products in this store!
Waterproof 150mm Stroke 24V Compact Electric Linear Actuator For Industry
Our electric linear actuators are widely used in Solar Tracking, Electric Sofa/ Bed, Massage Chair, Medical Care Bed, Industrial Automation, etc.
To get quick response and cost advantage, we built a complete manufacturing chain-- 70% parts built-in-house. Our management systems and product solutions are certified in accordance with ISO 9001:2015, ISO14001, OHSAS18000 and the safety test report. (CE, UL, KCC, etc.)
To get quick response and cost advantage, we built a complete manufacturing chain-- 70% parts built-in-house. Our management systems and product solutions are certified in accordance with ISO 9001:2015, ISO14001, OHSAS18000 and the safety test report. (CE, UL, KCC, etc.)

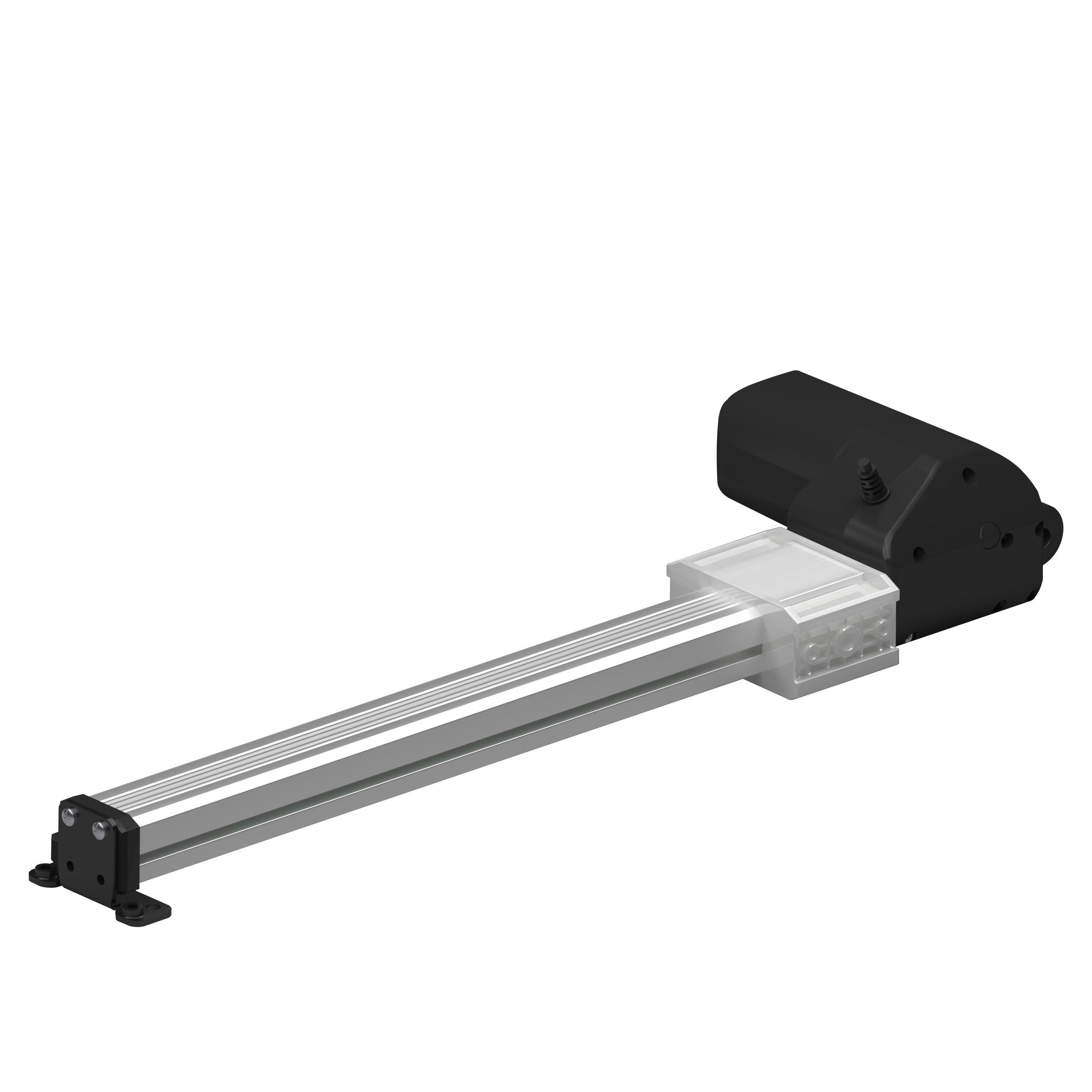

U5 linear actuator for furniture is designed for recliner, electeic sofa, old-man chair, etc. It has strong body to pull max. to 3,000N. With its slide design, it save much space for installation.
|
Code
|
Ratio
|
Rated Load (N)
|
|
Rated Current(A)
|
Rated Speed(mm/s)
|
|
||||||
|
|
|
Push
|
Pull
|
|
No Load (29V)
|
Full Load (24V)
|
||||||
|
Standard Motor(2600RPM)
|
|
|
|
|
|
|
||||||
|
A
|
39*3.5*1
|
3,000
|
3,000
|
4.5
|
5.1
|
3.9
|
||||||
|
B
|
39*3.9*1
|
3,000
|
3,000
|
4.5
|
5.6
|
4.1
|
||||||
|
C
|
39*2.6*2
|
2,500
|
2,500
|
4.5
|
7.5
|
5.2
|
||||||
|
E
|
38*2*4*2
|
2,000
|
2,000
|
4.5
|
23.7
|
16.4
|
||||||
|
F
|
38*2*4*3
|
1,200
|
1,200
|
4.5
|
35.6
|
23.3
|
||||||
Product Overview
Successful Project
SALES AND SERVICE NETWORK
FAQ
FREQUENTLY ASKED QUESTIONS
PROBLEM
1. Excuse me, is the module product I selected in stock?
When purchasing our module products, please communicate with us in time. If Wangwang's customer service is not online, please call Tel/whatsapp:86-15989856315. All the common specifications are in stock. For the customization of non-standard modules, please consult the customer service staff. After ordering according to the drawings provided by customers, the products will be delivered within 4-5 working hours.
2. Can the products I choose be customized according to my requirements?
Yes, the screw rod and guide rail can be processed according to your required length. The stroke, total length, screw rod diameter and lead, motor mounting plate, mounting hole, motor mounting method and various combinations of modules can be customized according to your requirements.
3. What is the repeated positioning accuracy of the module?
The repeated positioning release of screw module is 10.01MM, and the precision of synchronous belt module is 0.1MM.
4. What is the maximum load of the module?
The load of each product is different, and it is related to the size of the module, screw, motor and installation method. Please consult customer service staff for details.
5. How many MM can this module I chose run in 1 second?
This is related to your motor and lead. The specific calculation method is as follows: screw drive: walking speed per second-motor speed /60' screw lead.
Belt drive: walking speed per foot = speed of motor /60* number of guard wheels * width of groove.
6. Do you have a 3D picture of the product?
Yes, after your company signs the contract with our company, our company will give you a 3D drawing according to your company's requirements. If there is no problem, we will place an order for customized production.
