Quick Details
-
Dimension(L*W*H):
-
6500*2250*2450mm
-
Weight:
-
11500 KG
-
Marketing Type:
-
Hot Product 2022
-
Product name:
-
used hdd machine
-
Mobility:
-
0-280m/min
-
Rated power(kW/r/min):
-
160/2200
-
Max pressure(bar):
-
80
-
Torque(N m):
-
14000
-
Max inclination angle:
-
23
-
Max Flow rate(L/min):
-
320
-
Application:
-
pipe laying
Quick Details
-
Place of Origin:
-
henan
-
Brand Name:
-
YG
-
Voltage:
-
220V/380V
-
Dimension(L*W*H):
-
6500*2250*2450mm
-
Weight:
-
11500 KG
-
Marketing Type:
-
Hot Product 2022
-
Product name:
-
used hdd machine
-
Mobility:
-
0-280m/min
-
Rated power(kW/r/min):
-
160/2200
-
Max pressure(bar):
-
80
-
Torque(N m):
-
14000
-
Max inclination angle:
-
23
-
Max Flow rate(L/min):
-
320
-
Application:
-
pipe laying
Product Features

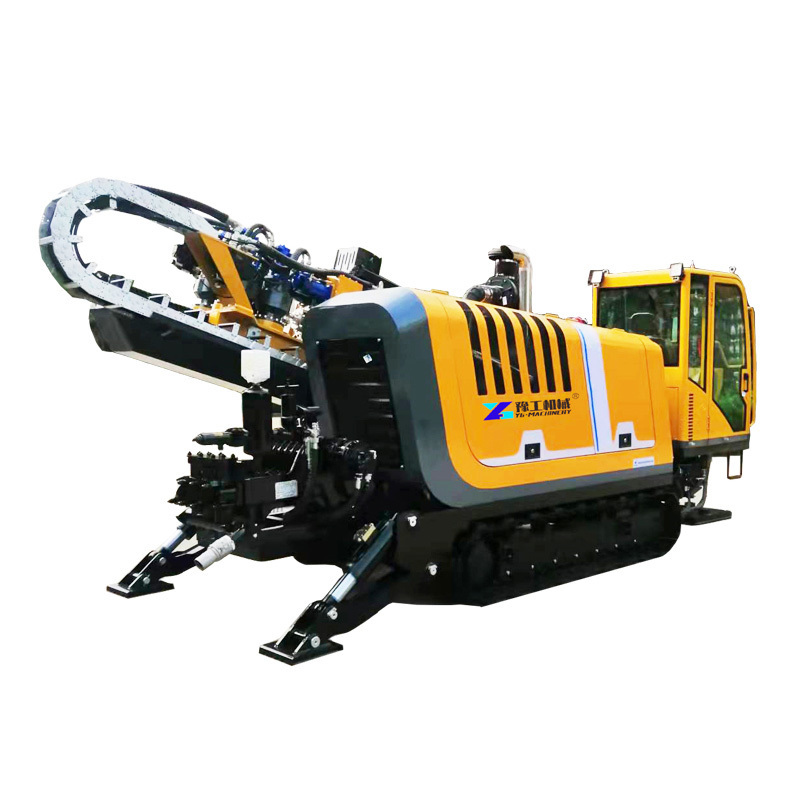

Discount horizontal directional drilling equipment
1. Strong power, adopting 153kW high-horsepower national II emission standard engine with sufficient power reserve to ensure that the drilling rig can complete pipe laying operations under various complex geological conditions;
2. The rack and pinion push and pull to ensure the stability of power head operation and the reliability of transmission;
3. The patented technology of dual-floating power head and vise can greatly protect the drill pipe thread and improve the service life of the drill pipe;
4. The optimized design of the hydraulic system realizes the dual-speed control of power head rotation and push-pull, which increases the adaptability of the drilling rig and improves the construction efficiency of the drilling rig;
5. To support the diversification of customer needs, the whole machine can be equipped with automatic (semi-automatic) drill pipe loading and unloading device, automatic anchoring device, cab, heating and cooling air conditioning, cold start, mud antifreeze, mud cleaning, mud throttling and other devices.
Specification
|
Model
|
Unit
|
XZ320
|
|
Engine
|
|
Shang-chai/Cum.
|
|
Rated power
|
kW
|
153
|
|
Push-pull
|
|
Cylinder
|
|
Max. pullback/thrusting
|
kN
|
320/200
|
|
Spindle torque (max)
|
N.m
|
1200
|
|
Spindle speed
|
r/min
|
0-140
|
|
Taeling speed of power head
|
m/min
|
0-22
|
|
Backreaming diameter
|
mm
|
800
|
|
Pipe length(single)
|
m
|
3
|
|
Pipe diameter
|
mm
|
73
|
|
Entry angle
|
°
|
10-20
|
|
Mud flow rate (max)
|
L/min
|
320
|
|
Mud pressure (max)
|
bar
|
80
|
|
Overall weight
|
T
|
11.5
|
|
Dimension (L*W*H)
|
mm
|
6400*2250*2450
|
