SM 9/125
- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
Gongfeng
-
Use:
-
FTTH
-
Warranty Time:
-
1 year
-
Product name:
-
fiber adapter LC UPC
-
Application:
-
FTTTH FTTTB FTTTX
-
Wavelength:
-
1310/1550nm
-
Model:
-
MM SM
-
Insertion Loss:
-
IL<0.3db
-
Return Loss:
-
≥50dB
-
Connector:
-
SC-lc Adapter
-
Brand:
-
gongfeng
Quick Details
-
Type:
-
LC Female To SC Male
-
Model Number:
-
fiber adapter
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
Gongfeng
-
Use:
-
FTTH
-
Warranty Time:
-
1 year
-
Product name:
-
fiber adapter LC UPC
-
Application:
-
FTTTH FTTTB FTTTX
-
Wavelength:
-
1310/1550nm
-
Model:
-
MM SM
-
Insertion Loss:
-
IL<0.3db
-
Return Loss:
-
≥50dB
-
Connector:
-
SC-lc Adapter
-
Brand:
-
gongfeng
Products Description

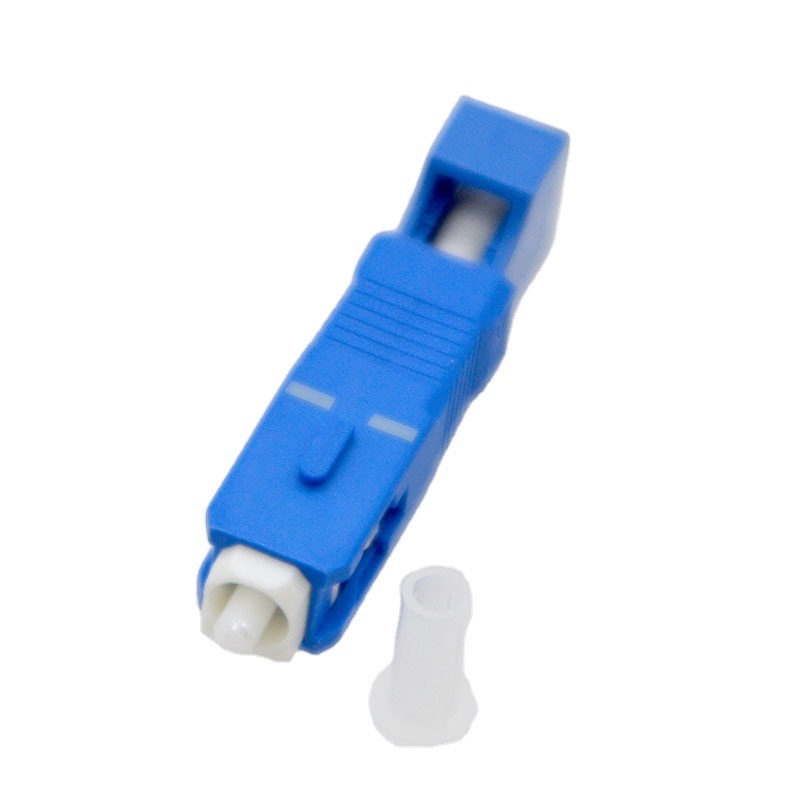

High-Quality low price LC Female To SC Male Optical Fiber Adapter Connector SM / Multimode Adapter Flange Coupler Wholesale
It can convert LC connector into SC connector
Female to Male Hybrid Adapter Series
Female to male hybrid adapter, using embedded fiber, ferrule and sleeve precision connection technology, Converts a type of
connector to another type of connector, Provides a simple and reliable solution for connecting two or more different optical fiber
transmission joints, Users can choose 9/125, 50/125, 62.5/125 and other fiber types and the corresponding connector type. Technical parameter insertion loss Single mode (sm-9 / 25) ≤ 0.3dB Multimode (mm-50 / 125, mm-62.5 / 125) ≤ 0.3dB Return loss: PC ≥ 45dB; UPC≥50dB; APC≥60dB Consistency: 0.1dB Operating temperature: - 40 ℃ ~ + 75 ℃ Usage times: ≥ 1000 times Product features
connector to another type of connector, Provides a simple and reliable solution for connecting two or more different optical fiber
transmission joints, Users can choose 9/125, 50/125, 62.5/125 and other fiber types and the corresponding connector type. Technical parameter insertion loss Single mode (sm-9 / 25) ≤ 0.3dB Multimode (mm-50 / 125, mm-62.5 / 125) ≤ 0.3dB Return loss: PC ≥ 45dB; UPC≥50dB; APC≥60dB Consistency: 0.1dB Operating temperature: - 40 ℃ ~ + 75 ℃ Usage times: ≥ 1000 times Product features
1.
Convert a variety of connectors into another
2.
compliance with IEC international standards
3.
Select 9/125, 62.5/125 and 50/125 fiber types as required
4.
Custom APC and UPC face connection
5.
High reliability, low insertion loss
6.
High precision of mechanical dimensions
7. Good interchangeability and reliability.
8. Low insertion loss and high return loss.
Product use
1.
Optical fiber data transmission
2.
Fiber optic equipment testing
3.
Repair of optical fiber network system
4.
Telecommunication, network, Broadband, CATV
LC /UPC Female TO
SC /UPC Male
Optical Fiber Connector Adapter Flange Coupler
