Quick Details
-
Place of Origin:
-
China
-
Brand Name:
-
LUZHONG
-
Model Number:
-
Z5035A
-
Voltage:
-
220V 380V
-
Weight (KG):
-
430 KG
-
Marketing Type:
-
Hot Product 2024
-
Warranty of core components:
-
18 months
-
Name:
-

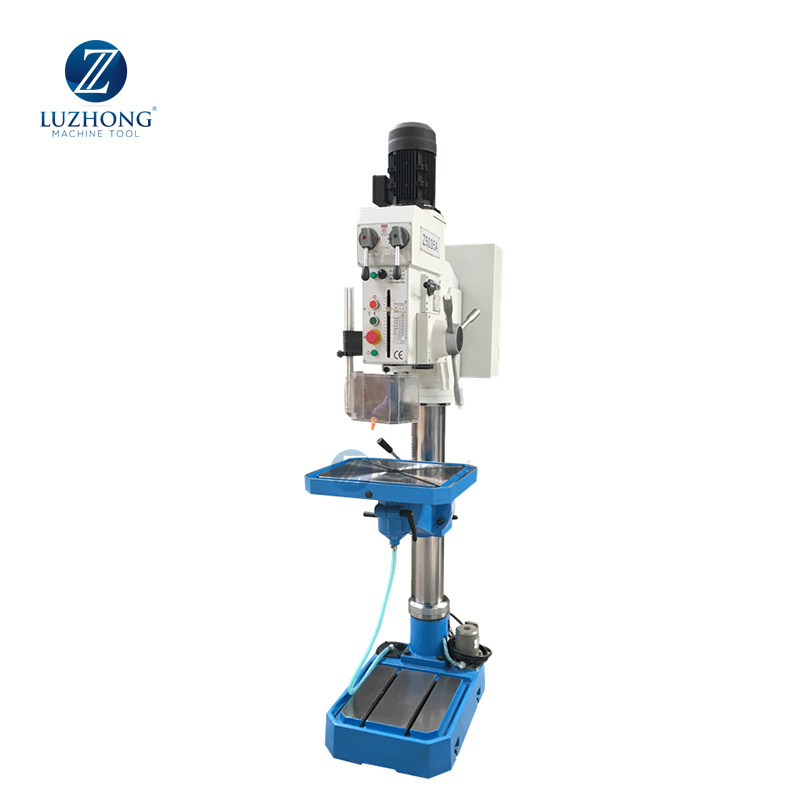

Gear Type Pillar Vertical Drilling Machinery Z5035A Drill Machine
-
Type:
-
Vertical Drilling Mahine
-
Max drilling diameter:
-
35mm
-
max.tapping capacity:
-
M22
-
Spindle travel:
-
155mm
-
Spindle taper:
-
MT4
-
Dia.of column:
-
120mm
-
Table size:
-
500*420mm
-
Color:
-
blue and white
-
Power(W):
-
1
Quick Details
-
type:
-
Column Drilling Machine
-
Max. Drilling Dia. (mm):
-
35
-
Range of Spindle Speed(r.p.m):
-
125 - 3030 r.p.m
-
Place of Origin:
-
China
-
Brand Name:
-
LUZHONG
-
Model Number:
-
Z5035A
-
Voltage:
-
220V 380V
-
Weight (KG):
-
430 KG
-
Marketing Type:
-
Hot Product 2024
-
Warranty of core components:
-
18 months
-
Name:
-
Gear Type Pillar Vertical Drilling Machinery Z5035A Drill Machine
-
Type:
-
Vertical Drilling Mahine
-
Max drilling diameter:
-
35mm
-
max.tapping capacity:
-
M22
-
Spindle travel:
-
155mm
-
Spindle taper:
-
MT4
-
Dia.of column:
-
120mm
-
Table size:
-
500*420mm
-
Color:
-
blue and white
-
Power(W):
-
1
Product Description
|
Model
|
unit
|
Z5035A
|
|
Max. drilling capacity
|
Mm
|
35
|
|
Max. tapping capacity
|
Mm
|
M22
|
|
Distance spindle axis to column surface
|
Mm
|
590
|
|
Max. distance spindle nose to base
|
Mm
|
1150
|
|
Max. spindle travel
|
Mm
|
155
|
|
Spindle table
|
|
MT4
|
|
Number of speed step of the spindle
|
Step
|
12
|
|
Spindle speed range
|
r/mm
|
125-3030
|
|
Feed steps of the spindle
|
degree
|
3
|
|
Feed range of the spindle
|
Mm/r
|
0.1,0.2,0.3
|
|
Max. stroke of the worktable and its bracket
|
Mm
|
530
|
|
Rotation degree of worktable and its bracket in cross direction
|
Degree
|
±45°
|
|
Working area of the worktable
|
Mm
|
500*420
|
|
Dia. of colun
|
mm
|
120
|
|
Main motor power
|
KW
|
1.0/1.2
|
|
Max. external dimension
|
Mm
|
875*510*2140
|
|
N.W
|
Kg
|
430
|
Details Display
