Quick Details
-
Brand Name:
-
Secukey
-
Model Number:
-
S7-BLE
-
Type:
-
RFID
-
Keyword:
-
TT Lock RFID Access Control
-
Card Type:
-
13.56MHz IC Card
-
Mobile App:
-
TT Lock
-
Working Mode:
-
Standalone
-
Material:
-
Metal case
-
Working Temperature:
-
-40oC-60oC
-
Operating Voltage:
-
12 V DC
-
Read range:
-
3-8 cm
-
Dimension:
-
Diameter: 73mm, Thickness: 20mm
Quick Details
-
Special Features:
-
Waterproof / Weatherproof
-
Customized support:
-
Online technical support
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Secukey
-
Model Number:
-
S7-BLE
-
Type:
-
RFID
-
Keyword:
-
TT Lock RFID Access Control
-
Card Type:
-
13.56MHz IC Card
-
Mobile App:
-
TT Lock
-
Working Mode:
-
Standalone
-
Material:
-
Metal case
-
Working Temperature:
-
-40oC-60oC
-
Operating Voltage:
-
12 V DC
-
Read range:
-
3-8 cm
-
Dimension:
-
Diameter: 73mm, Thickness: 20mm

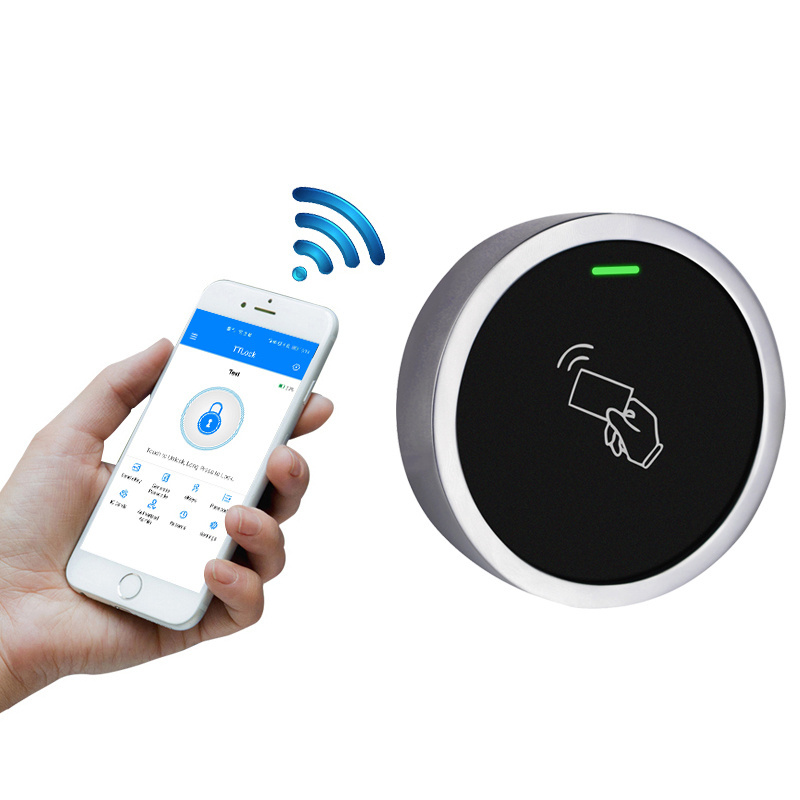

TTLock Bluetooth RFID Access
> Waterproof, conforms to IP66
> Metal housing, anti-vandal
> Card type: 13.56MHz Mifare Card
> iOS and Android available
> Add / Delete users by APP
> Support checking Opening Record
> Support Gateway
> Support Time Attendance
> Multiple Access Modes: Smartphone, Card, PIN
> Multiple language
(MIFARE
®
and
MIFARE
®
DesFire are trademarks of NXP B.V., our product is just a reader work with it)
(HID is trademark of HID, our product is just a reader work with it)
| Blutooth | BLE Bluetooth (BLE 4.1) |
| Mobile Phone | Android 4.3/IOS7.0 above |
| PIN User Capacity |
Custom password : 150
dynamic password: 150 |
| Card User Capacity | 200 |
| Card Type | 13.56MHz Mifare card, M1 card |
| Multi-language |
English, Spanish, French, German, Italian, Russian, Portuguese,
Serbian, Malaysian, Japanese, Vietnamese etc. |
| Card Reading Distance | 2~4 cm |
| Keypad | Capacitive TouchKey |
| Operating Voltage | 12V DC |
| Working Current | ≤80mA |
| Lock Output Load | ≤2A |
| Operating Temperature | -20°C~+60°C |
| Operating Humidity | 0%RH~85%RH |
| For Outdoor | Waterproof, IP66 |
|
Physical
Colour Dimensions Unit Weight Shipping Weight |
Zinc-Alloy
Silver & Black Diameter: 73mm, Thickness: 20mm 300g 500g |
