Quick Details
-
Width of bed (mm):
-
300
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
www.ycjixie.com
-
Model Number:
-
CD6241
-
Voltage:
-
Customer's Requirement
-
Dimension(L*W*H):
-
1900X900X1600mm
-
type:
-
CD6241
-
Usage:
-
Spline Rolling Machine
-
Precision:
-
Precision
-
Processing Types:
-
Metal
-
Workpiece and Weight:
-
Instrument Machine Tool
-
Controlling Mode:
-
manual
-
Machine Type:
-
High Speed Lathe
-
Max Swing Diameter:
-
410mm
-
Weight:
-
1200kg
-
Power:
-
2.8/3.3kw
Quick Details
-
Max. Length of Workpiece (mm):
-
1500
-
Machining Capacity:
-
Light Duty
-
Spindle Bore(mm):
-
52
-
Width of bed (mm):
-
300
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
www.ycjixie.com
-
Model Number:
-
CD6241
-
Voltage:
-
Customer's Requirement
-
Dimension(L*W*H):
-
1900X900X1600mm
-
type:
-
CD6241
-
Usage:
-
Spline Rolling Machine
-
Precision:
-
Precision
-
Processing Types:
-
Metal
-
Workpiece and Weight:
-
Instrument Machine Tool
-
Controlling Mode:
-
manual
-
Machine Type:
-
High Speed Lathe
-
Max Swing Diameter:
-
410mm
-
Weight:
-
1200kg
-
Power:
-
2.8/3.3kw

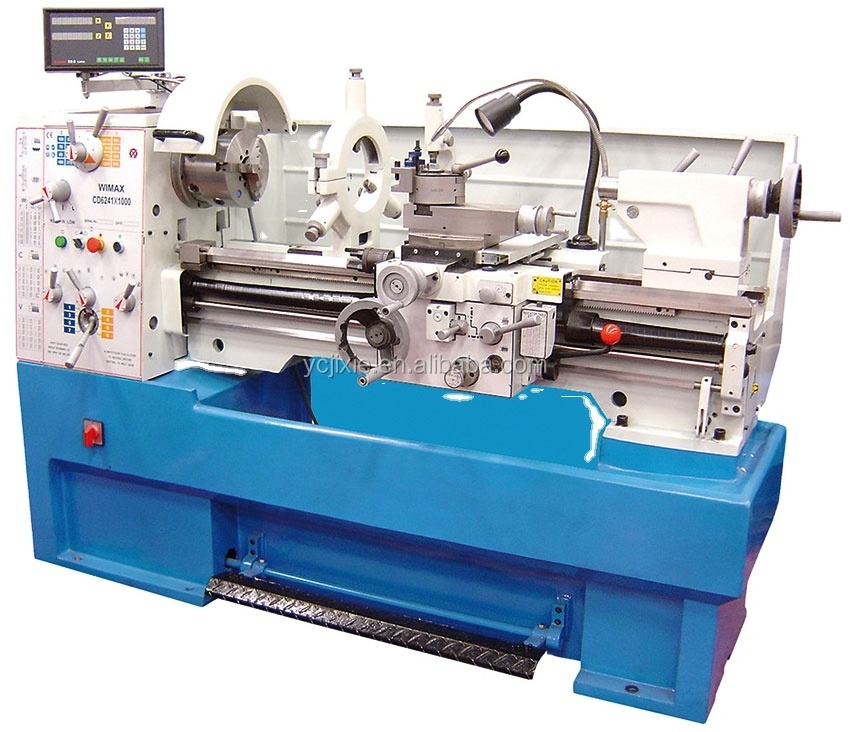

universal lathe machine CD6241 ( Torno ) used metal lathe machine for sale
universal lathe machine CD6241 ( Torno ) used metal lathe machine for sale
Top universal lathe CD6241 is a fantastic model for small to medium-size turning works. Even its basic configuration includes important accessories, such as 3-jaw chuck, steady and follow rest, change gears etc. Ingreasing the application area of this model significantly.
Inductive hardened, polished grey cast-iron machine bed
Mechanical foot brake reduces downtime significantly
Centrally located, logical switches for feeds and threads with lead screw and feed rod
State-of-the-art main spindle bearing with high-quality angular ball bearings
3-axis digital readout and quick tool post can be optional
Large, hardened, polished gears
Straightforward speed and feed adjustment
Hardened, polished fears and shafts, also in feed gear unit
The removable bridge allows machining of workpieces with a big diameter, hand wheels feature adjustable sacle (0, 02 mm)
Very robust and professional machine.
Triple bearings supporting headstock spindle
Adjustable taper roller bearings providing spindle accuracy
Precision 'V'-beds & headstock gears are all hardened & ground
One piece cast iron base increases rigidity
Overload protection on drive motor and coolant system
Universal enclosed gearbox incorporating metric & imperial thread capabilities
Inching button incorporated on the control panel for convenient spindle speed selection
Foot operated spindle brake with safety cut out switch
250mm wide induction hardened heavy duty cast iron bed
Removable gap bed allowing work piece to swing up to 580mm
Chuck guard fitted with safety micro switch
Powered longitudinal and cross feeds
Adjustable 6 position length-stop on bed-way for accurate repetitive operation
Dual calibrated dials incorporating metric & imperial graduations
Coolant system with flexible hose enabling operator to manipulate flow direction
Oil sight glass for head stock and gearbox
Low voltage halogen work light
Lubrication pump on saddle oiling slides
D1-6 camlock spindle for quick chuck removal
Large 52mm spindle bore
2 speedmotor
Standard accessories:
3-jaw chuck DK11-200 mm / D6
Independent chuck K72-250 mm / D6
Face plate 350 mm
Steady rest
Follow rest
Coolant device
4-way tool post holder
Micrometer-longitudinal stop
Thread dial
Foot brake
Halogen light
Change gears
2 dead centers
Splash guard
Tools
| SPECIFICATION | MODELS | |
| CD6241× 1000 | ||
| CAPACITY | ||
| Swing over bed | 410mm(16" ) | |
| Swing over cross slide | 255mm(10" ) | |
| Swing in gap | 580(23" ) | |
| Length of gap | 250(10" ) | |
| Distance between centers | 1000mm(40" ) | |
| Center height | 20.5" | |
| Width of bed | 250(10" ) | |
| HEADSTOCK | ||
| Spindle nose | D1-6 | |
| Spindle bore | 52mm(2" ) | |
| Taper of spindle bore | No. 6Morse | |
| Range of spindle speed | 16 changes 45-1800r/min | |
| FEEDS AND THREADS | ||
| Max. travel of compound rest | 102mm(4" ) | |
| Max. travel of cross slide | 210mm(8-1/4" ) | |
| Leadscrew pitch | 4T. P. I. | |
| Max. Section of tool | 20× 20mm(13/16" ) | |
| Longitudinal feeds range | 0.05-1.7mm/rev(0.002" -0.067" /rev) | |
| Cross oeeds range | 0.025-0.85mm(0.001" -0.0335" /rev) | |
| Metric threads range | 39kinds 0.2-14mm | |
| Inch threads range | 45kinds 2-72T. P. I | |
| Diametrical pitchesrange | 21kinds 44D. P. | |
| Module pitches range | 18kinds 0.3-3.5M. P. | |
| TAILSTOCK | ||
| Dia. of tailstock sleeve | 50mm(2" ) | |
| Travel of tailstock sleeve | 120mm(4-3/4" ) | |
| Morse taper of tailstock sleeve | No. 4 Morse | |
| Cross adjustock | ± 13mm(± 1/2" ) | |
| MOTOR | ||
| Power of main motor | 2.8/3.3kw(3.8/4.5HP)3PH | |
| Power of coolant pump | 0.1KW(1/8HP), 3PH | |
| DIMENSION AND WEIGHT | ||
| Overall dimension(L× W× H) mm | 1940× 850× 1300 | 1940× 850× 1320 |
| Packing size(L× W× H)mm | 2060× 900× 1640 | 2060× 900× 1640 |
| Net weight/Gross weight | 1500/1750 | 1550/1800 |
| STANDARD ACCESSORIES | ||
| 200mm Three Jaw Chuck and Adapter 320mm Four Jaw Chuck and Adapter 300mm Face Plates Steady Rest Follow Rest Thread Chasing Dial Mt/6/4 Sleeve and MT 4 Center Oil Gun One set of Wrenches Operation Manual | ||
| SPECIAL ACCESSORIES | ||
|
1.200mm Driving plate 2. Quick change Tool Post 3. Taper Turning Attachment |
||
