Quick Details
-
Description:
-

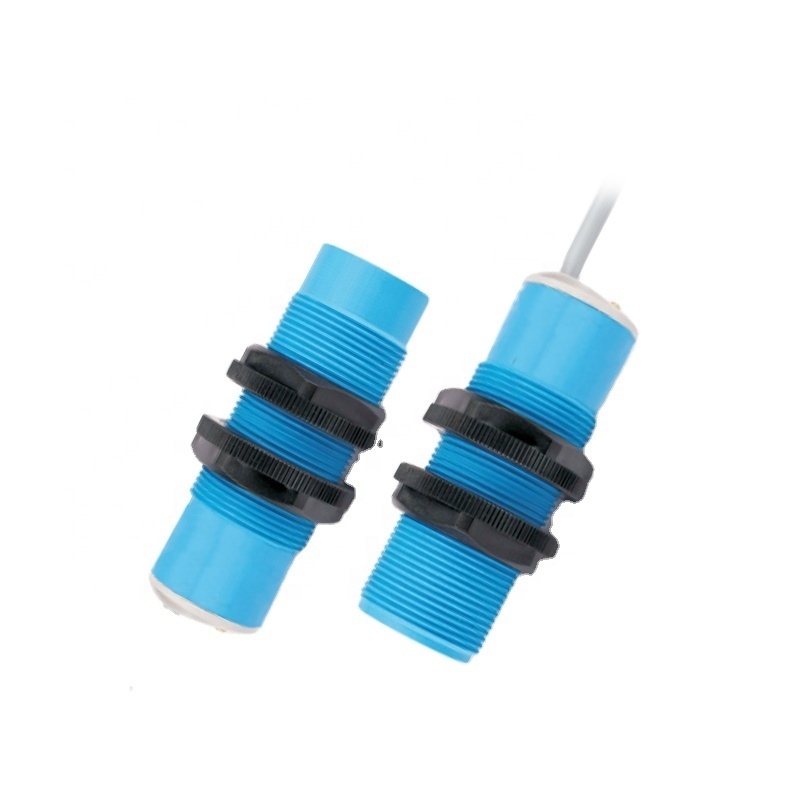

M30, Capacitive Proximity Sensor
-
Model Number:
-
M30
-
Place of Origin:
-
Nanjing,China
-
Brand Name:
-
KJTDQ
-
Theory:
-
Capacitive Proximity Sensor
-
Output:
-
2 wire,3 wire, NO, NC
-
Name:
-
M30 Capacitive Proximity Sensor
-
Output type:
-
Switching Transducer
-
Usage:
-
Position Sensor
-
Connection:
-
Pre-wired/Connector
-
Sensing distance:
-
10/15mm
-
Cable Wire:
-
PVC 2m
-
Protection Level:
-
IP67,IP68,IP69
-
Material:
-
Plastic
-
Temperature:
-
-25~+70℃
-
Supply Voltage:
-
10-36VDC,90-250VAC,20-250VAC/DC
Quick Details
-
Use:
-
Universal
-
Series:
-
Capacitive Proximity Sensor
-
Mounting Type:
-
Flush/Non-flush
-
Description:
-
M30, Capacitive Proximity Sensor
-
Model Number:
-
M30
-
Place of Origin:
-
Nanjing,China
-
Brand Name:
-
KJTDQ
-
Theory:
-
Capacitive Proximity Sensor
-
Output:
-
2 wire,3 wire, NO, NC
-
Name:
-
M30 Capacitive Proximity Sensor
-
Output type:
-
Switching Transducer
-
Usage:
-
Position Sensor
-
Connection:
-
Pre-wired/Connector
-
Sensing distance:
-
10/15mm
-
Cable Wire:
-
PVC 2m
-
Protection Level:
-
IP67,IP68,IP69
-
Material:
-
Plastic
-
Temperature:
-
-25~+70℃
-
Supply Voltage:
-
10-36VDC,90-250VAC,20-250VAC/DC
Products Description
Product Paramenters
|
Product No
|
M8
|
M12
|
M18
|
M30
|
|||
|
Installation method
|
Flush/Non-Flush
|
|
|
|
|||
|
Detection distance
|
1MM/2MM
|
2MM/4MM
|
5MM/8MM
|
10MM/15MM
|
|||
|
Specification size (mm)
|
M8*1*45
|
M12*1*50
|
M18*1*55
|
M30*1.5*55
|
|||
|
Output Mode
|
NPN/PNP/NC/NO
|
|
|
|
|||
|
Response Frequency
|
100hz
|
|
|
|
|||
|
Movement Differential
|
Less than 10% of detection distance
|
|
|
|
|||
|
Supply Voltage Service Voltage Range
|
DC12-24V ripple (P-P) 10% or less (DC10-30V)
|
|
|
|
|||
|
Consumed Current
|
less than 13mA
|
|
|
|
|||
|
Switching capacity
|
less than 200mA
|
|
|
|
|||
|
Residual voltage
|
Under 2V (load current 200mA, conductor 2m long)
|
|
|
|
|||
|
Indicator
|
Action display (red)
|
|
|
|
|||
|
Protection circuit
|
Reverse protection, surge absorption, load short circuit protection
|
|
|
|
|||
|
Ambient temperature range
|
Working: -25~ + 70°C, Storing: -40~+ 85°C(no freeze, no dew)
|
|
|
|
|||
|
Ambient humidity range
|
Working / Storing: 35~95%RH (no dew)
|
|
|
|
|||
|
Temperature Effect
|
Temperature range from-25 °C to 70 °C is 23 °C, detection distance is less than
±10%
|
|
|
|
|||
|
Insulation Resistance
|
Above 50MΩ ( DC500V megger) between the whole charging part and the shell
|
|
|
|
|||
|
Withstand voltage
|
AC1, 000V 50/60Hz lmin between the whole charging part and the shell
|
|
|
|
|||
|
Vibration (Durability)
|
10~55Hz up and down amplitude is 1.5mm, 2 hours in X,Y,Z directions
|
|
|
|
|||
|
Impact (Durability)
|
300m/s² 10 times in X, Y, Z directions
|
|
|
|
|||
|
IP Grade
|
IEC standard IP67
|
|
|
|
|||
|
Connection mode
|
2m PVC cable
|
|
M12 4-pin connector
|
|
|||
|
weight
|
About 52-54kg
|
|
About 14-15kg
|
|
|||
|
Material
|
Case: nickel-plated brass, Test surface: heat-resistant ABS, standard cable
(black) PVC
|
|
|
|
|||
Product Dimensions
Product Wiring Diagram
PRODUCT APPLICATION
FAQ
Q1. Are you a trader or a manufacturer?
A: KJT electric is a manufacturing enterprise. We have more than 12 years of experience in R&D and production.
Q2: Can you send a sample for us to test ?
A: For proximity sensors ,it is available to send samples .
Q3: What is the minimum order quantity(MOQ)?
A: Small quantity is also available.MOQ can be negotiated for customized products.
Q4. Does your company accept customization?
A: Yes, we welcome OEM&ODM and label customization according to your requirements.
Q5 : How about the quality guarantee period ?
A : Our warranty period is 18-month since from shipping date.
Q6 : What's your leadtime?
A : 1-3 working days shipping guarantee for stock item , for non-stock items, our delivery date will be determined according to
the quantity you order. If your need is urgent, we will try our best to shorten the delivery time.
Q7 : What's your payment term?
A : We accept T/T, Credit card , Paypal and Western Union.
Q8: What is your shipping way?
A: We support DHL, UPS, FedEx, TNT, EMS express and so on.
