Quick Details
-
Color:
-
Black/White
-
Place of Origin:
-
Guangdong, China
-
Model Number:
-
OA55W
-
Brightness:
-
2500 nit, 2500 nit,customizable
-
Display Ratio:
-
16:9
-
Response Time:
-
8 ms (typ)
-
Contrast Ratio:
-
1200:1
-
Lifespan (hours):
-
50,000 hrs (typ.)
-
IP Rating:
-
55
-
Installation Type:
-
floor stand/wall mount
-
HS Code:
-
8528591090
-
Resolution:
-
1920*1080/3840*2160
-
View Angle（H/V）:
-
178° / 178°
-
Name:
-

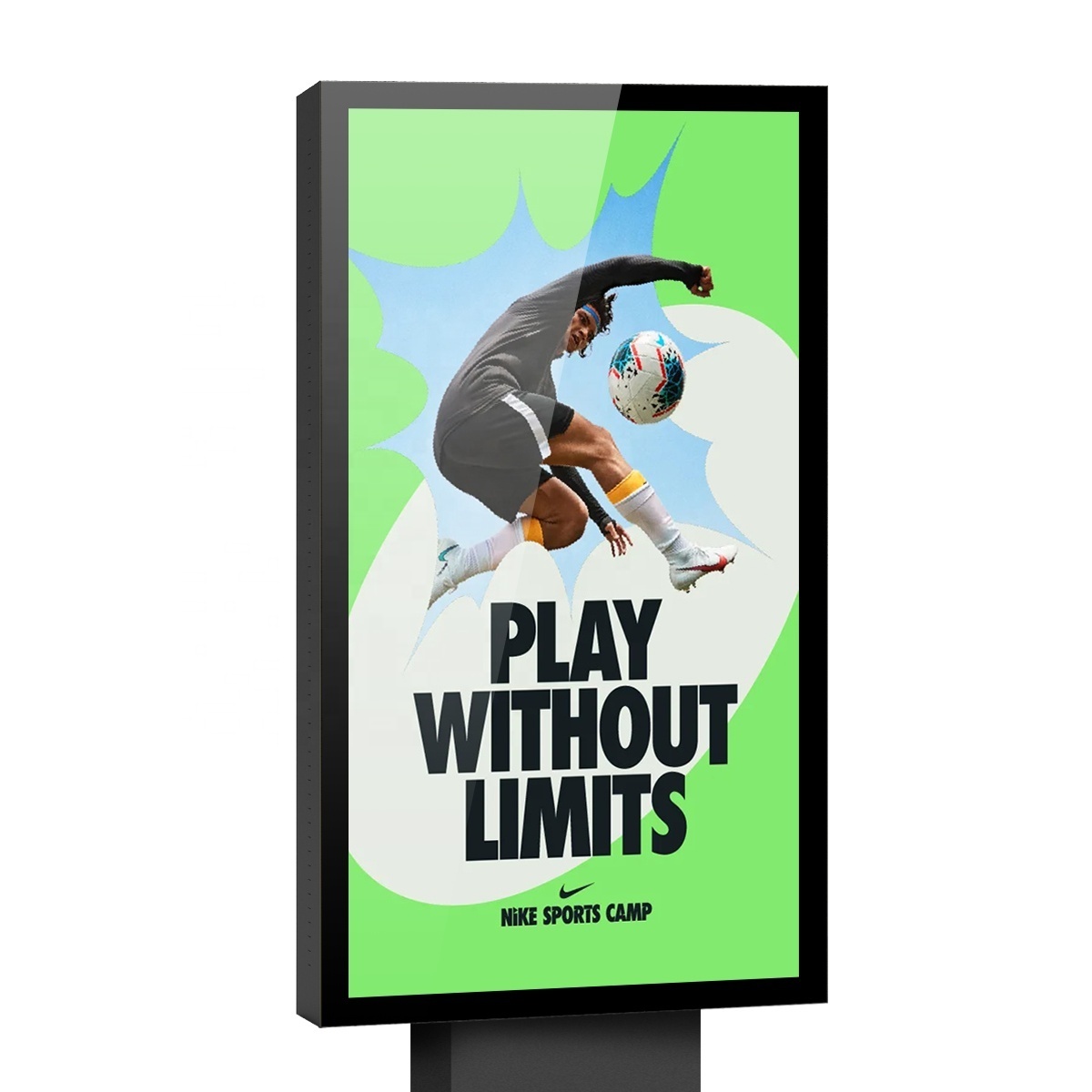

Floor Stand Waterproof Outdoor Digital Signage Display
-
Size:
-
55 inch,customizable
-
Operating system:
-
Android,Window 7/8/10,Linux,Auto-p
-
Network:
-
WIFI,LAN ,3G 4G Optional
-
Installation:
-
Ceiling ,Hang,Mounting ,Floor Standing
-
Certificate:
-
CE, FCC, CCC, ROHS & ISO9001
-
Custom:
-
Color,Logo,Border Design,etc
Quick Details
-
Application:
-
Outdoor
-
Type:
-
LCD
-
Brand Name:
-
Refee
-
Color:
-
Black/White
-
Place of Origin:
-
Guangdong, China
-
Model Number:
-
OA55W
-
Brightness:
-
2500 nit, 2500 nit,customizable
-
Display Ratio:
-
16:9
-
Response Time:
-
8 ms (typ)
-
Contrast Ratio:
-
1200:1
-
Lifespan (hours):
-
50,000 hrs (typ.)
-
IP Rating:
-
55
-
Installation Type:
-
floor stand/wall mount
-
HS Code:
-
8528591090
-
Resolution:
-
1920*1080/3840*2160
-
View Angle（H/V）:
-
178° / 178°
-
Name:
-
Floor Stand Waterproof Outdoor Digital Signage Display
-
Size:
-
55 inch,customizable
-
Operating system:
-
Android,Window 7/8/10,Linux,Auto-p
-
Network:
-
WIFI,LAN ,3G 4G Optional
-
Installation:
-
Ceiling ,Hang,Mounting ,Floor Standing
-
Certificate:
-
CE, FCC, CCC, ROHS & ISO9001
-
Custom:
-
Color,Logo,Border Design,etc
Product Description
Specification
Floor standing series is commercial grade LCD screen technology with Android OS . They are widely used in public environments, including airport, hotel, Bank, Metro station.
*
Slim&Light
Design
* Truly
Sunlight Readable
* IP55 Waterproof&Dustproof
*
Easy Data Control & Maintenance
* 2500nits High Brightness Screen
*
IK10
Protective Glass
|
Specification:
|
|
|
|
|
|
|
|
|
||||||||
|
Electric/Heat dissipation
|
Waterproof loudspeaker
|
|
Waterproof high quality 2*10W speaker
|
|
|
|
|
|
||||||||
|
|
Power supply
|
|
Industrial power supply from Meanwell
|
|
|
|
|
|
||||||||
|
|
SPD
|
|
Level 3 lightning protection
|
|
|
|
|
|
||||||||
|
|
leakage protector
|
|
Protection current 30mA
|
|
|
|
|
|
||||||||
|
|
Timer
|
|
Set the switching time by day and week
|
|
|
|
|
|
||||||||
|
|
Ventilation
|
|
High precision filter, filter 99.6% dust
|
|
|
|
|
|
||||||||
|
Structure
|
The housing material
shell |
|
All aluminum, surface spray outdoor special powder, protection capacity of more than 7 years.
|
|
|
|
|
|
||||||||
|
|
Glass
|
|
Adopt 6mm high light transmittance AG glass
|
|
|
|
|
|
||||||||
|
|
Waterproof structure
|
|
Door design waterproof structure, seal with outdoor rubber strip, meet IP65 protection level
|
|
|
|
|
|
||||||||
|
Model No.:
|
|
|
OA32W
|
OA43W
|
OA55W
|
OA65W
|
OA75W
|
OA86W
|
||||||||
|
Optional
|
|
|
10points Capacitive Touch Optional ; 4G SIM optional
|
|
|
|
|
|
||||||||
|
Panel
|
|
|
|
|
|
|
|
|
||||||||
|
LCD Panel Type
|
|
|
32 inch IPS LCD
|
43 inch IPS LCD
|
55 inch IPS LCD
|
65 inch IPS LCD
|
75 inch IPS LCD
|
86 inch IPS LCD
|
||||||||
|
Resolution
|
|
|
1920*1080
|
1920*1080
|
1920*1080
|
1920*1080
|
3840*2160
|
3840*2160
|
||||||||
|
Backlight
|
|
|
LED
|
|
|
|
|
|
||||||||
|
Brightness
|
|
|
2500 nit
|
|
|
|
|
|
||||||||
|
Contrast Ratio
|
|
|
1200:1
|
|
|
|
|
|
||||||||
|
Color Depth
|
|
|
8 bits
|
|
|
|
|
|
||||||||
|
Response Time
|
|
|
8 ms (typ)
|
|
|
|
|
|
||||||||
|
Viewing Angle
|
|
|
178° / 178°
|
|
|
|
|
|
||||||||
|
Light Life Time
|
|
|
50,000 hrs (typ.)
|
|
|
|
|
|
||||||||
|
POWER
|
|
|
|
|
|
|
|
|
||||||||
|
Power Supply
|
|
|
Internal
|
|
|
|
|
|
||||||||
|
Rated Voltage
|
|
|
AC 100 V ~ 240 V, 50 Hz / 60 Hz
|
|
|
|
|
|
||||||||
|
Power Consumption
|
|
|
80W (max)
|
110W (max)
|
175W (max)
|
270W (max)
|
450W(max)
|
750W(max)
|
||||||||
|
USER INTERFACE
|
|
|
|
|
|
|
|
|
||||||||
|
Language
|
|
|
English (by default)
|
|
|
|
|
|
||||||||
|
Dimming Control (DCR)
|
|
|
Yes
|
|
|
|
|
|
||||||||
|
Ambient Light Sensor
|
|
|
Yes
|
|
|
|
|
|
||||||||
|
Internal Temperature Sensor
|
|
|
Yes
|
|
|
|
|
|
||||||||
|
I/O PORTS
|
|
|
|
|
|
|
|
|
||||||||
|
HDMI
|
|
|
In (x1)
|
|
|
|
|
|
||||||||
|
Audio
|
|
|
Out (x1)
|
|
|
|
|
|
||||||||
|
INTERNAL PLAYER
|
|
|
|
|
|
|
|
|
||||||||
|
Processor
|
|
|
ARM Cortex -A55 , Quad-core, 2.0GHz
|
|
|
|
|
|
||||||||
|
Main memory interface
|
|
|
2GB DDR3
|
|
|
|
|
|
||||||||
|
Graphics
|
|
|
Mali-G52
|
|
|
|
|
|
||||||||
|
Storage (FDM)
|
|
|
eMMC 16GByte(2GB occupied by o/s)
|
|
|
|
|
|
||||||||
|
Multimedia
|
|
|
Decoder:4K60fpsH.265/H.264/VP9. Encoder: 1080P 100fps H.265/H.264
|
|
|
|
|
|
||||||||
|
IO ports
|
|
|
USB 2.0 x2, micro SD slot x1
|
|
|
|
|
|
||||||||
|
Operating system
|
|
|
Android 11
|
|
|
|
|
|
||||||||
|
Network
|
|
|
WLAN 802.11 b/g/n (2.4GHz) ,RJ45
|
|
|
|
|
|
||||||||
|
ENVIRONMENT
|
|
|
|
|
|
|
|
|
||||||||
|
Operating Temperature
|
|
|
-20° C ~ 60° C
|
|
|
|
|
|
||||||||
|
Storage Temperature
|
|
|
-10° C ~ 60° C
|
|
|
|
|
|
||||||||
|
Humidity
|
|
|
10% ~ 80% RH Non-condensing
|
|
|
|
|
|
||||||||
|
CERTIFICATION
|
|
|
|
|
|
|
|
|
||||||||
|
CE, FCC&Rohs
|
|
|
CE, FCC&Rohs
|
|
|
|
|
|
||||||||
|
MECHANICAL SPECS
|
|
|
|
|
|
|
|
|
||||||||
|
Orientation
|
|
|
Portrait /LandScape
|
|
|
|
|
|
||||||||
|
Cabinet Color
|
|
|
Black
|
|
|
|
|
|
||||||||
|
Dimension (LxHxD)
|
|
|
804.5*499*100mm
|
1050*638*100mm
|
1315 *786*100mm
|
1534.5*909.5*100mm
|
1756*1034*100mm
|
2001*1172*100mm
|
||||||||
|
Weight (N.W)
|
|
|
18kg
|
28kg
|
48kg
|
62kg
|
75kg
|
85kg
|
||||||||
|
Weight (G.W)
|
|
|
35kg
|
50kg
|
88kg
|
95kg
|
105kg
|
120kg
|
||||||||
