Quick Details
-
Model Number:
-
DRD FRP
-
Specification:
-
DN50-DN5000
-
Length:
-
11.8m/pc, 5.8m/11.8m
-
Thickness:
-
As requirement
-
Standard:
-
ISO4427, AS/NZS4130, DIN8074, GB/T13663-2000
-
stifness:
-
SN100
-
pressure:
-
Pn1 - PN 25
-
Color:
-
Customized Colors
-
working temperature:
-
-40℃~70℃
-
feature:
-
Corrossion Resistance
-
Shape:
-
round
-
usage:
-
underground
-
type:
-
FRP Pipe GRP Pipe Fiberglass FRP cable protection plastic pipe
Quick Details
-
Processing Service:
-
Moulding, Cutting
-
Place of Origin:
-
Tianjin, China
-
Brand Name:
-
DRD
-
Model Number:
-
DRD FRP
-
Specification:
-
DN50-DN5000
-
Length:
-
11.8m/pc, 5.8m/11.8m
-
Thickness:
-
As requirement
-
Standard:
-
ISO4427, AS/NZS4130, DIN8074, GB/T13663-2000
-
stifness:
-
SN100
-
pressure:
-
Pn1 - PN 25
-
Color:
-
Customized Colors
-
working temperature:
-
-40℃~70℃
-
feature:
-
Corrossion Resistance
-
Shape:
-
round
-
usage:
-
underground
-
type:
-
FRP Pipe GRP Pipe Fiberglass FRP cable protection plastic pipe
factory prices GRP GRE RTR Pipe Fiberglass Pipe FRP Pipes
GRP pipeline is a New composite materials, which based on resin as unsaturated resin or vinyl ester resin, Glass fiber Reinforced material.
It is the best choice in Chemical industry, water supply and drainage projects and pipeline project,
which have good Corrosion resistance, low water resistance characteristics,lightweight,
high strength, high transport flow, easy installation, short construction period and
low comprehensive investment and other excellent performances.
Features:
1. low weight, high stiffness and good fatigue resistance
2. High strength and high hydraulic characteristic
3. good corrosion resistance and long service life, more than 50 years
4. easy connection and installation and saving cost
5. superior anti-aging and anti-freeze
6. good insulation performance
7. Smooth internal surface , low friction coefficient and high delivery efficiency.
GRP pipe specification:
Technical Data Sheet:
|
Item |
Index |
Test method |
|
Bending strength (Mpa) |
≥135 |
GB/T1449-2005 |
|
Tensile strength (Mpa) |
≥120 |
GB/T1447-2005 |
|
Tube stiffness(Mpa) |
≥5.0 |
GB/T5352-2005 |
|
Bending strength reserved rate After soaking (%) |
≥80 |
GB/T10703-1989 |
|
Bending load the heat distortion temperature (°C) |
≥130 |
GB/T1634.2-2004 |
|
Barcal Hardness |
≥35 |
GB/T3854-2005 |
|
Oxygen index (%) |
≥26 |
GB/T8924-2005 |
|
Coefficient of sliding friction |
≤0.34 |
GB/T3960-1983 |
|
Heat resisting coefficient (°C)M/W |
≤4.8 |
GB/T3139-2005 |
Tianjin Dingrunda Group Co., Ltd was founded in 2004, which is engaged in manufacturing, processing, supplying and
exporting an unparalleled range of pipeline and fittings of HDPE pipes,HDPE double wall corrugated pipes, Steel belt reinforced
HDPE corrugated pipes, Glass Reinforced Plastic pipes, Plastic coated steel pipes, PVC double wall corrugated pipes, Processed
s teel pipes and the other construction and building materials.
Application
1) Residential cold and hot water system
2)Underground heating system
3)Conveyor of industrial water and chemical material
4)Sanitary and pure water
5)Hot water recycling system
6)Compressed air pipeline
7)Drink manufacturing and conveying system
8)Other industrial and agricultural pipeline

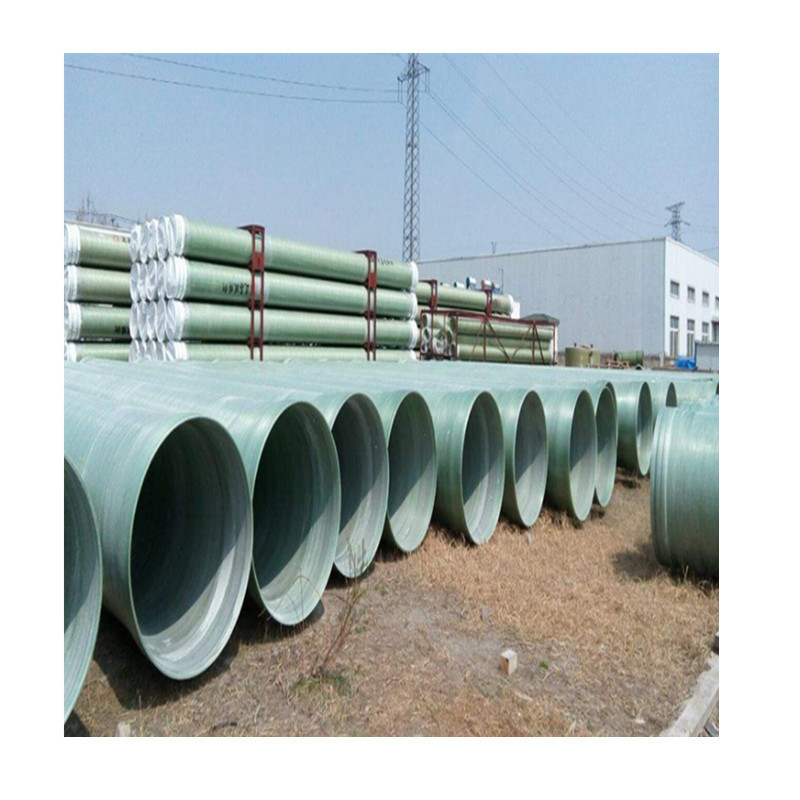

FRP / GRP pipes have in stock:
