Quick Details
-
Insulation Material:
-
PVC
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
Yiteng
-
Model Number:
-
BV/BVR/ RV/ RVV
-
color:
-
red, brown , black , yellow/green
-
standard to:
-
IEC, JB ,DIN , ASTM , BS,
-
sectional area:
-
0.75- 35 mm
-
Rated Voltage:
-
450 /750V
-
temp:
-
75 deg C
-
FRLS/ FROH:
-
fire resistant , zero halogen
-
Certification:
-
ROHS, ISO 9001, ISO14000
-
Name:
-
35mm copper cable
-
type:
-
3 core electrical wire and cable
Quick Details
-
Application:
-
house wiring
-
Conductor Material:
-
Copper
-
Conductor Type:
-
Stranded
-
Insulation Material:
-
PVC
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
Yiteng
-
Model Number:
-
BV/BVR/ RV/ RVV
-
color:
-
red, brown , black , yellow/green
-
standard to:
-
IEC, JB ,DIN , ASTM , BS,
-
sectional area:
-
0.75- 35 mm
-
Rated Voltage:
-
450 /750V
-
temp:
-
75 deg C
-
FRLS/ FROH:
-
fire resistant , zero halogen
-
Certification:
-
ROHS, ISO 9001, ISO14000
-
Name:
-
35mm copper cable
-
type:
-
3 core electrical wire and cable
copper conductor house wiring electrical cable 1.5mm 2.5mm 4mm 6mm 10mm 16mm 25mm 35mm copper electric wire
other name h05 vv-f h07vv-f nnym-j nym-o
voltages: 450v -750v
insulation: pvc insulation max 65/75/90/105 degc
solid copper or stranded copper
awg 18ag -4# awg
copper class 1,2,5 purity 99.99% annealed copper
|
||
| Supper fine stranded copper wire | Solid copper wire | Flexible soft copper wire |
Data sheet
|
AWG |
outer diameter |
cross sectional area (mm2) |
electric resistance (W/km) |
AWG |
outer diameter |
cross sectional area (mm2) |
electric resistance (W/km) |
||
|
metric mm |
British inch |
metric mm |
British inch |
||||||
|
4/0 |
11.68 |
0.46 |
107.22 |
0.17 |
22 |
0.643 |
0.0253 |
0.3247 |
54.3 |
|
3/0 |
10.40 |
0.4096 |
85.01 |
0.21 |
23 |
0.574 |
0.0226 |
0.2588 |
48.5 |
|
2/0 |
9.27 |
0.3648 |
67.43 |
0.26 |
24 |
0.511 |
0.0201 |
0.2047 |
89.4 |
|
1/0 |
8.25 |
0.3249 |
53.49 |
0.33 |
25 |
0.44 |
0.0179 |
0.1624 |
79.6 |
|
1 |
7.35 |
0.2893 |
42.41 |
0.42 |
26 |
0.404 |
0.0159 |
0.1281 |
143 |
|
2 |
6.54 |
0.2576 |
33.62 |
0.53 |
27 |
0.361 |
0.0142 |
0.1021 |
128 |
|
3 |
5.83 |
0.2294 |
26.67 |
0.66 |
28 |
0.32 |
0.0126 |
0.0804 |
227 |
|
4 |
5.19 |
0.2043 |
21.15 |
0.84 |
29 |
0.287 |
0.0113 |
0.0647 |
289 |
|
5 |
4.62 |
0.1819 |
16.77 |
1.06 |
30 |
0.254 |
0.0100 |
0.0507 |
361 |
|
6 |
4.11 |
0.1620 |
13.30 |
1.33 |
31 |
0.226 |
0.0089 |
0.0401 |
321 |
|
7 |
3.67 |
0.1443 |
10.55 |
1.68 |
32 |
0.203 |
0.0080 |
0.0316 |
583 |
|
8 |
3.26 |
0.1285 |
8.37 |
2.11 |
33 |
0.18 |
0.0071 |
0.0255 |
944 |
|
9 |
2.91 |
0.1144 |
6.63 |
2.67 |
34 |
0.16 |
0.0063 |
0.0201 |
956 |
|
10 |
2.59 |
0.1019 |
5.26 |
3.36 |
35 |
0.142 |
0.0056 |
0.0169 |
1,200 |
|
11 |
2.30 |
0.0907 |
4.17 |
4.24 |
36 |
0.127 |
0.0050 |
0.0127 |
1,530 |
|
12 |
2.05 |
0.0808 |
3.332 |
5.31 |
37 |
0.114 |
0.0045 |
0.0098 |
1,377 |
|
13 |
1.82 |
0.0720 |
2.627 |
6.69 |
38 |
0.102 |
0.0040 |
0.0081 |
2,400 |
|
14 |
1.63 |
0.0641 |
2.075 |
8.45 |
39 |
0.089 |
0.0035 |
0.0062 |
2,100 |
|
15 |
1.45 |
0.0571 |
1.646 |
10.6 |
40 |
0.079 |
0.0031 |
0.0049 |
4,080 |
|
16 |
1.29 |
0.0508 |
1.318 |
13.5 |
41 |
0.071 |
0.0028 |
0.0040 |
3,685 |
|
17 |
1.15 |
0.0453 |
1.026 |
16.3 |
42 |
0.064 |
0.0025 |
0.0032 |
6,300 |
|
18 |
1.02 |
0.0403 |
0.8107 |
21.4 |
43 |
0.056 |
0.0022 |
0.0025 |
5,544 |
|
19 |
0.912 |
0.0359 |
0.5667 |
26.9 |
44 |
0.051 |
0.0020 |
0.0020 |
10,200 |
|
20 |
0.813 |
0.0320 |
0.5189 |
33.9 |
45 |
0.046 |
0.0018 |
0.0016 |
9,180 |
|
21 |
0.724 |
0.0285 |
0.4116 |
42.7 |
46 |
0.041 |
0.0016 |
0.0013 |
16,300 |
| type | TW | THW | THW-2 | TFF |
| working temperature | 60℃ | 75℃ | 90℃ | 60℃ |
| voltage | 600V | 600V | 600V | 600V |
| cross sectional(AWG) | cores/single diameter(cores/mm) | sheath thinkness(mm) | Max out diameter(mm) |
| 1 | 208/0.511 | 2.03 | 13.43 |
| 2 | 168/0.511 | 1.52 | 11.76 |
| 4 | 133/0.45 | 1.52 | 9.79 |
| 6 | 133/0.36 | 1.52 | 8.44 |
| 8 | 168/0.254 | 1.14 | 6.78 |
| 10 | 104/0.254 | 0.76 | 4.60 |
| 12 | 65/0.254 | 0.76 | 3.97 |
| 14 | 41/0.254 | 0.76 | 3.38 |
| 16 | 26/0.254 | 0.76 | 2.92 |
| cross sectional(AWG) | cores/single diameter(cores/mm) | sheath thinkness(mm) | Max out diameter(mm) |
| 14 | 7/0.62 | 0.76 | 3.38 |
| 12 | 7/0.77 | 0.76 | 3.83 |
| 10 | 7/0.98 | 0.76 | 4.46 |
| 8 | 7/1.23 | 1.14 | 5.97 |
| 6 | 7/1.56 | 1.53 | 7.71 |
| 4 | 7/1.96 | 1.53 | 8.74 |
| 2 | 7/2.47 | 1.53 | 10.45 |
| 1/0 | 19/1.89 | 2.03 | 13.46 |
| 2/0 | 19/2.12 | 2.03 | 14.86 |
| 4/0 | 19/2.68 | 2.03 | 17.26 |
| 350Kcmil | 37/2.47 | 2.41 | 22.34 |
| 500Kcmil | 37/2.95 | 2.41 | 25.47 |
| 750Kcmil | 61/2.82 | 2.79 | 30.96 |
copper conductor house wiring electrical cable 1.5mm 2.5mm 4mm 6mm 10mm 16mm 25mm 35mm copper electric wireApplication field:
house wiring wire
industrial wiring
auto car battery wiring

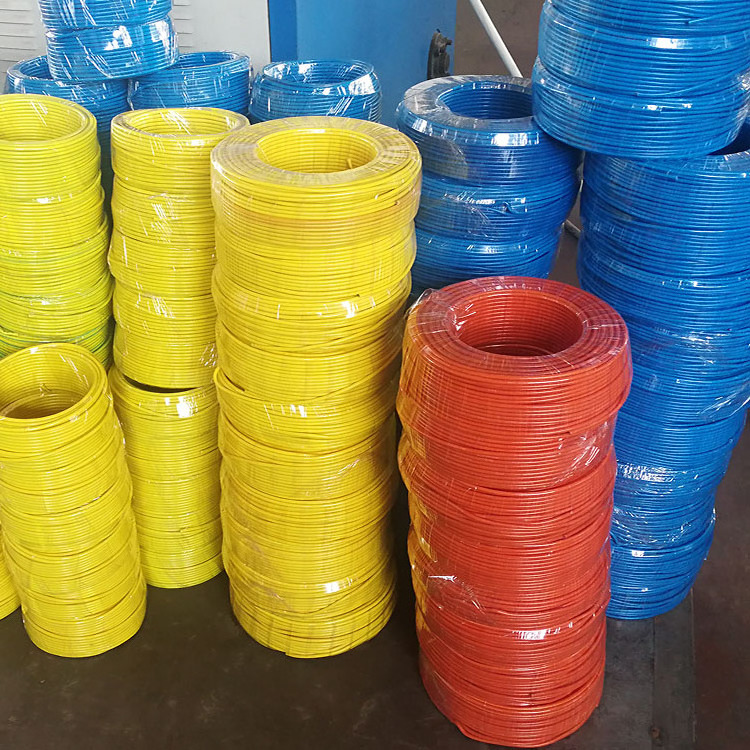

cable packing
1. packed in standard export drums or other ways per customer's requirement;
2. handled and shipped carefully to ensure perfect package unpon customer's receiving.
3. packed in circle, length 100m long.
4. packed in bundle length no less than 100m.
5. in wooden case plastic reel then on pallet
as per the agreement
1. soft package 100/200 meters per coil then on wooded pallet
2. on wodden drum size 1.4m*0.7m*0.4m or to be customized
3. tough packing ensure the goods safety during handling and transporting
Certificates
the certification we have available
ISO9001 ISO14001 CCC CE ROHS SGS etc
Yiteng Cable Technology Hebei Co., Ltd Workshop for house wiring wire
contact yiteng cable supplier
Mr Peter Shi
The sales manager
Tel: +86 311 68022933
Fax: +86 311 88837555
whatsapp/wechat: +86 18931155779
Email: peter@ cable-yt.com
Trade Manager: CN1515358360
