Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Shunli Motor
-
Model Number:
-
GM24FMN20/N30
-
Torque:
-
Customized
-
Rated Voltage:
-
3V ~ 12V
-
Gear type:
-
Customized
-
Brush:
-
carbon or metal
-
Shaft shape:
-
Customized
-
Weight:
-
Approx. 9.5g
-
Direction:
-
CW/CCW
-
Basilar Plate:
-
Copper Gear Case
-
Gearbox Length:
-
9mm
-
End Play:
-
0.05-0.35mm
Quick Details
-
Speed(RPM):
-
Customized
-
Continuous Current(A):
-
0.08-0.75A
-
Efficiency:
-
45%~90%
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Shunli Motor
-
Model Number:
-
GM24FMN20/N30
-
Torque:
-
Customized
-
Rated Voltage:
-
3V ~ 12V
-
Gear type:
-
Customized
-
Brush:
-
carbon or metal
-
Shaft shape:
-
Customized
-
Weight:
-
Approx. 9.5g
-
Direction:
-
CW/CCW
-
Basilar Plate:
-
Copper Gear Case
-
Gearbox Length:
-
9mm
-
End Play:
-
0.05-0.35mm

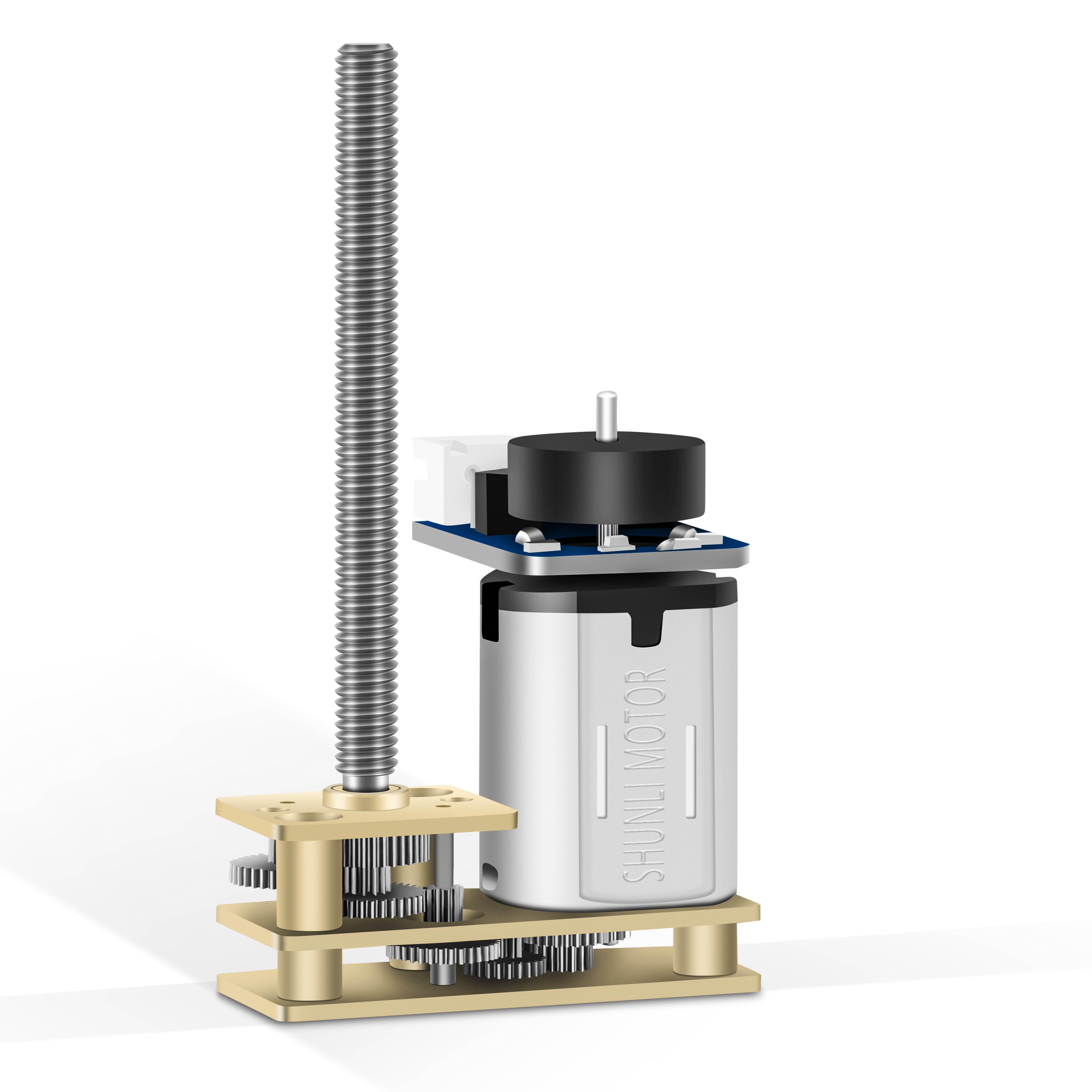

DC 6V 12V Gear Motor 1024GA20 Thread Flip N20 Gear Motor M4 x 55mm Shaft(6V 30RPM)
Product Details
Specification
Gearbox Technical Date
| Ratio | 10K / 50K / 100K / 150K / 200K / 298K / 500K |
| Max. Rated Torque | 300~800 gf.cm |
| Max. Gear Breaked Torque | 1000~3000 gf.cm |
| Gearbox Efficiency | 45%~90% |
Gearmotor Technical Date
| Gearmotor Model | Ratio | Rated Voltage (V) | No-Load | Rated | Stall | ||||
| Speed | Current | Speed | Current | Torque | Current | Torque | |||
| RPM | mA | RPM | mA | mN.m / gf.cm | mA | mN.m / gf.cm | |||
| GM24FMN20-150K | 1 : 150 | 4.5 VDC | 92 | ≤ 55 | 80 | ≤ 150 | 2.5 / 250 | ≤ 700 | 100 / 1000 |
| GM24FMN30-50K | 1 : 50 | 12 VDC | 500 | ≤ 60 | 440 | ≤ 190 | 18 / 180 | ≤ 400 | 140 / 1400 |
PMDC MOTOR Technical Date
| PMDC MOTOR Model | Length “L”(mm) | Rated Voltage (V) | No-Load | Rated | Stall | |||||
| Speed | Current | Speed | Current | Torque | Current | Torque | ||||
| RPM | mA | RPM | mA | mN.m / gf.cm | mA | mN.m / gf.cm | ||||
| SL-N20 | 04514000 | 15 | 4.5 VDC | 14000 | ≤ 40 | 12000 | ≤ 130 | 0.25 / 2.5 | ≤ 650 | 1.5 / 15 |
| SL-N30 | 1225400 | 20 | 12 VDC | 25400 | ≤ 50 | 22600 | ≤ 170 | 0.5 / 5 | ≤ 380 | 4.2 / 42 |
Shenzhen Shunli Motor Co. Ltd has been established in 2005. It's a high-tech enterprise integrating the research, development, production and sales of various kinds of micro DC motor, geared motor, planetary geared motor, shade pole geared motor and special gearbox motor. Products are widely used in automobiles, communications equipment, smart home, medical equipment, intelligent security, household appliances, western kitchen equipment, machinery and electronics and other high-end transmission structures, products are exported to more than 50 countries and regions at home and abroad.
