Quick Details
-
Application:
-
Kitchen
-
Design Style:
-
Modern
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
CYMA & VKS FUJI
-
Model Number:
-
AL700
-
Product name:
-
Dumbwaiter Elevator
-
Cabin material:
-
304 Hairline stainless steel
-
Landing doors:
-
304 Hairline stainless steel
-
Load capacity:
-
100KG/200KG/300KG
-
Control system:
-
Microcarmark control
-
Control method:
-
Serial communication
-
Maximum interface capacity:
-
2 Floors ~ 32 Floos available
-
Door Opening Direction:
-
90° corner opening door
-
Scope of application:
-
Window type/Special civil structure
Quick Details
-
Warranty:
-
5 years
-
After-sale Service:
-
Online technical support, Onsite Installation, Onsite Training, Onsite Inspection, Free spare parts
-
Project Solution Capability:
-
graphic design, total solution for projects
-
Application:
-
Kitchen
-
Design Style:
-
Modern
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
CYMA & VKS FUJI
-
Model Number:
-
AL700
-
Product name:
-
Dumbwaiter Elevator
-
Cabin material:
-
304 Hairline stainless steel
-
Landing doors:
-
304 Hairline stainless steel
-
Load capacity:
-
100KG/200KG/300KG
-
Control system:
-
Microcarmark control
-
Control method:
-
Serial communication
-
Maximum interface capacity:
-
2 Floors ~ 32 Floos available
-
Door Opening Direction:
-
90° corner opening door
-
Scope of application:
-
Window type/Special civil structure
Dumbwaiter Elevator control parts
Control Cabinet A
Model:
TC-MINI-A
Specification:
2.2KW-7.5KW
Speed:
0.4m/s
Floor:
2-32 Floors
Communication method:
Serial communication
Control Cabinet B
Model:
TC-MINI-B
Specification:
2.2KW-3.7KW(
Variable frequency
)
Speed:
1m/s
Floor:
2-32 Floors
Communication method:
Serial communication
Control Cabinet C
Model:
TC-MINI-C
Specification:
2.2KW-3.7KW(
Single speed, variable frequency speed adjustment
)
Speed:
0.4m/s
Floor:
2-5 Floors
Communication method:
Parallel communication
Control Cabinet A
Model:
TC-MINI-BS
Specification:
1.5KW-3.7KW
(Variable frequency)
Speed:
1 m/s
Floor:
2-32 Floors
Input:
AC220V 1P single phase
Output:
AC220V 3P three phases
Door machine controller
Easy to use:
modular design, that is, plug and play
●
Applicable to the car door control (through the door)
●
Used in the hall door machine control (automatic door machine or rolling door)
Door lock:
electromagnetic function control
Well Wiring and Standard Reessive Plug -in Box
Mainline branch:
take "one meter" as a unit, the length is available
Public branches:
Limited position branch; extreme branch
Each layer branch line:
Externally call branch; urgent stop branch; door lock branch; electromagnetic branch; door zone branch
Accompanying branch:
It can be divided into 5 cores, 7 cores, 12 cores, 16 cores according to different requirements according to different requirements.
Car roof function:
Safe loop, door lock circuit, sedan roof lighting, sedan roof inspection
Door District Collection
: Tongdao collection method; sedan roof collection method
Door opening of Dumbwaiter Elevator

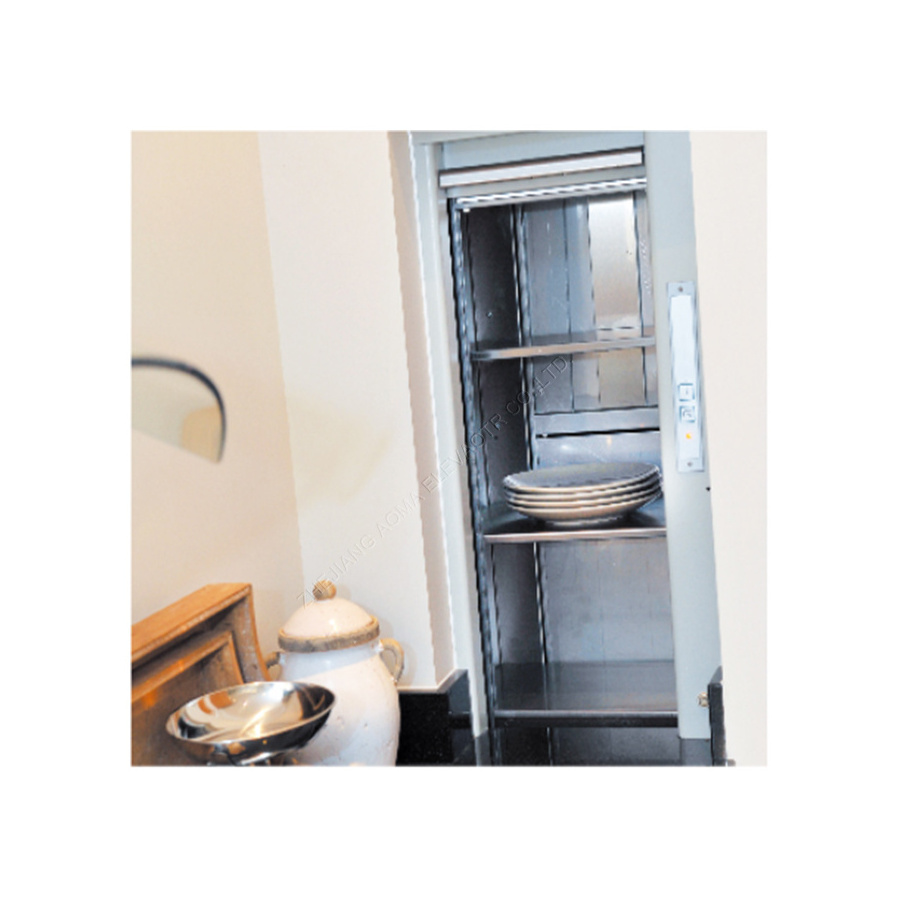

Window type
(Up and down diractly separated)
Ground type
(Up and down diractly separated)
FAQ
Q1:How to order ?
●
Inquiry with specification
●We provide
quotation
●
Confirm the
specification and drawing
●
Send Pl
●
Make the payment
●
Aarrange the parts
●Load and shipping
●R
eceive the goods.
Q2:What the parameters I need to provide before asking price for Dumbwaiter?
●How many capacity?(100KG/200KG/300KG)
●
Shaft size
●Drawing structure for Dumbwaiter(
If you have it provide）
Q4:
What is the minimum order
?
●
Our minimum order quantity is
1 set
, which can meet the customer's quantity requirements.
Q5:
Can you customize products?
●
Yes, we are mainly doing customized products according to the customers’ requirements.
Q6:
How long is your delivery time?
●
Non-customized products
usually 25-35 days can be delivered.
●
If the quantity is large or there are customization requirements, the time is to be discussed.
Q7:
How to guarantee the quality of your goods?
●Firstly, we will do the inspection after every process for the finished products, we will do 100% inspection according to thecustomers’ requirements.
we have 100% gurantee.
