Quick Details
-
Weight:
-
630 KG
-
Power:
-
51.2, 600w
-
Product name:
-
Water Cooled Chiller
-
Application:
-
Industrial Cooling Solutions
-
Function:
-
Circulating Cooling Water
-
MOQ:
-
1
Quick Details
-
Place of Origin:
-
Sichuan, China
-
Brand Name:
-
Lxry
-
Voltage:
-
380V
-
Weight:
-
630 KG
-
Power:
-
51.2, 600w
-
Product name:
-
Water Cooled Chiller
-
Application:
-
Industrial Cooling Solutions
-
Function:
-
Circulating Cooling Water
-
MOQ:
-
1

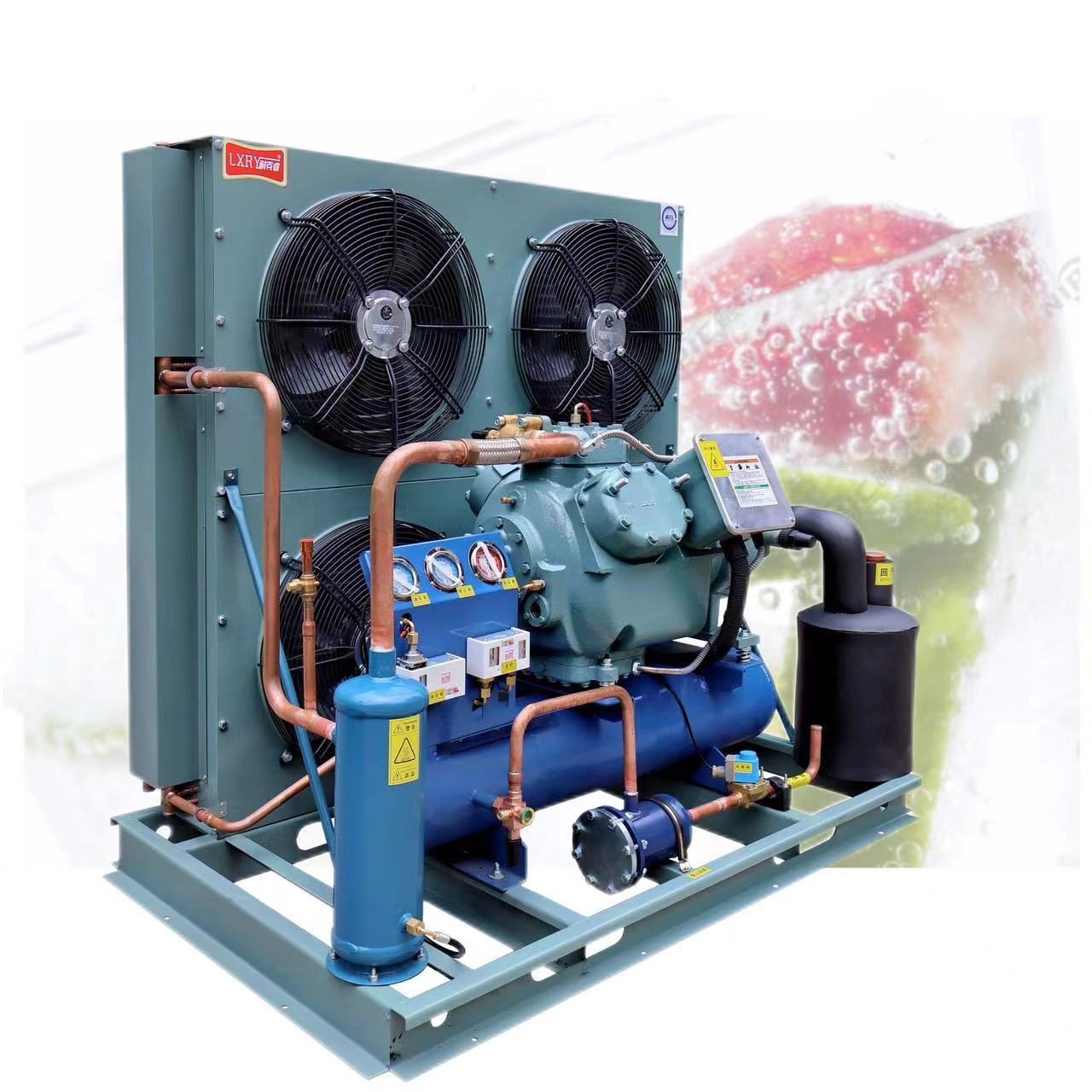

PRODUCT INTRODUCTION
The product adopts a sheet metal frame bottom frame with forklift holes and lifting holes.
The main engine adopts "American Carrier semi-enclosed piston" which is suitable for vari- ous high and low temperature situations. It is durable, reliable and stable.
Using fin-type air condenser, the heat exchange efficiency is high and the service life is long.
The product is easy to install and flexible, and is suitable for construction environments under various extreme conditions. (Such as lack of water, extremely small space)
Unit Configuration Description
NK F/S 003 HE P
F/S: (F: air-cooled, S: water-cooled)
003: Single compressor nominal power (HP)
H: Applicable temperature (H: high temperature M: medium temperature L: low temperature)
E: Applicable refrigerant code (E: R404a/R507, B: R22)
P: Applicable power supply (S: 220V, P: 380V)
Products Parameters
|
model number
|
|
|
NKF005HEP
|
NKF010HEP
|
NKF025HEP
|
NKF030HEP
|
|||||
|
Applicable stock stability
|
|
|
’-5~+5℃
|
|
|
|
|||||
|
power supply
|
|
|
380V/3HP/50HZ
|
|
|
|
|||||
|
applicable refrigerant
|
|
|
R507
|
|
|
|
|||||
|
Compressor model
|
|
|
06DM316
|
06DA825
|
06EA550
|
06EA565
|
|||||
|
Air-cooled condenser
|
Number of fans
|
|
2
|
4
|
\
|
\
|
|||||
|
|
Fan voltage
|
|
380V
|
|
|
|
|||||
|
|
Fan power
|
|
2X216
|
4X164
|
\
|
\
|
|||||
|
cooling capacity power
|
evaporation temperature of 0℃
|
cooling capacity of KW
|
\
|
24.18
|
52.12
|
66.78
|
|||||
|
|
|
power of KW
|
\
|
8.16
|
18.22
|
22.96
|
|||||
|
|
evaporation temperature of -5℃
|
cooling capacity of KW
|
13.18
|
19.29
|
42.01
|
53.68
|
|||||
|
|
|
power of KW
|
4.96
|
7.7
|
17.23
|
20.93
|
|||||
|
|
evaporation temperature of -10℃
|
cooling capacity of KW
|
10.32
|
15.1
|
33.44
|
42.23
|
|||||
|
|
|
power of KW
|
4.55
|
7.1
|
16.04
|
18.62
|
|||||
|
interface
|
supply liquid interface
|
|
Φ12
|
Φ12
|
Φ22
|
Φ22
|
|||||
|
|
discharge port
|
|
Φ28
|
Φ28
|
Φ42
|
Φ42
|
|||||
|
external dimensions
|
A(mm)
|
|
1150
|
1250
|
1350
|
1500
|
|||||
|
|
B(mm)
|
|
940
|
940
|
990
|
810
|
|||||
|
|
C(mm）
|
|
820
|
1120
|
1340
|
1135
|
|||||
|
|
installation dimensions(mm)
|
|
1150*940
|
1250*940
|
1350*990
|
1500*810
|
|||||
Technical Diagram
Application Field
2.Commercial air conditioning: Commercial air conditioning requires higher performance from refrigeration compressors and can be used in air conditioning systems in large commercial office buildings,hotels, shopping malls, and other places.
3.Refrigeration equipment: Refrigeration equipment includes ice makers, freezers, etc. The refrigeration compressor is the core component to achieve its refrigeration performance.
4.Industrial refrigeration: including pharmaceutical, chemical, food
refrigeration processing and other fields, refrigeration compressors are widely used in these fields
