Quick Details
-
Weight:
-
Depends on capacity
-
Size:
-
Depends on capacity
-
Power:
-
Depends on capacity
-
Productivity:
-
0-50 m3/day
-
Weight (KG):
-
25000 kg
-
Product name:
-
Clarification Neotech Wastewater Clarifiers
-
Type:
-
Circular
-
Water Source Type:
-
Industrial Effluent
-
Industry:
-
Petroleum Industry
-
Treatment Technique:
-
Membrane Bioreactor
-
Treatment Capacity:
-
2500 m3/hr
-
Bridge Width:
-
0.75 m
-
Operating Temperature:
-
normal
-
Capacity:
-
150 M3/HR
Quick Details
-
Place of Origin:
-
Gujarat, India
-
Brand Name:
-
NEOTECH WATER
-
Material:
-
Mild Steel
-
Weight:
-
Depends on capacity
-
Size:
-
Depends on capacity
-
Power:
-
Depends on capacity
-
Productivity:
-
0-50 m3/day
-
Weight (KG):
-
25000 kg
-
Product name:
-
Clarification Neotech Wastewater Clarifiers
-
Type:
-
Circular
-
Water Source Type:
-
Industrial Effluent
-
Industry:
-
Petroleum Industry
-
Treatment Technique:
-
Membrane Bioreactor
-
Treatment Capacity:
-
2500 m3/hr
-
Bridge Width:
-
0.75 m
-
Operating Temperature:
-
normal
-
Capacity:
-
150 M3/HR
Product Description

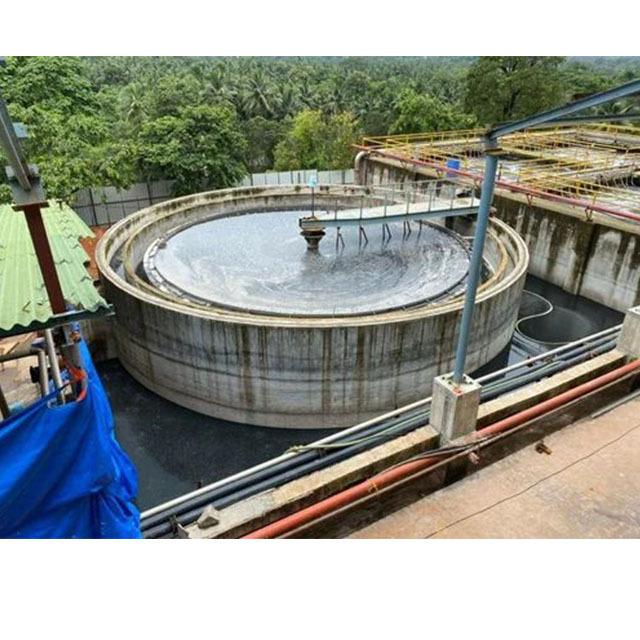

NeoTech Water Solutions are supplying the industry’s highest quality and most reliable clarifier mechanisms for basic bridge or pier supported mechanisms to those with the most complex and demanding special requirements. Our drive units are high performance and deliver high torque. Standard Designs exist for basic mechanisms for a wide range of tank sizes. These standard mechanisms are effective, low cost and meet all design codes with minimal engineering costs. Bridge supported mechanisms are supported by a structural bridge that spans the tank diameter and is generally used for the lower end of the range of clarifier diameters.
Features:
High torque drive
Torque Alarms
Hydraulic or Electrical Drive System
Forward & Reverse (Optional)
Variable speed (Optional)
Manual or Motorised Central Pipe Lifting arrangement
Low maintenance
High quality components
Indoor or Outdoor operation
Central Drive Unit
Bridge spanning full tank diameter (with Center Shaft) / half the tank diameter (with Center Cage)
Rake arms spanning full tank diameter
Range of rugged Central Drive heads with torque overload sensing Surface skimmer (Optional)
Manual / semi-automatic / automatic rake lifting (Optional)
Designs upto 30M diameter (Full Bridge) and (Half Bridge)
Lamella / Tube Settler options available for high rate clarification
Peripheral Drive Unit:
Rotating Bridge spanning half the tank diameter or more
Clariflocculator design with 2 / 4 Flocculation paddles
Rake arms suspended from the bridge
Peripheral drive designs with Rubber / PU tyred wheels running on concrete wall / Steel wheels running on rails
Surface skimmer (Optional)
Designs upto 60M diameter and above
Central Drive Clariflocculator:
Fixed Bridge spanning full/half tank diameter. Rake arms spanning the full tank diameter
Centrally driven rake arms through rugged drive head
Designs with 2/4 Floc Paddles with independent drives
Alternate Single flocculator drive with concentric dual stack drive design upto 40M diameter and above
High Rate Solid Contact Clarifier - Reactor Type Features:
Mixing, Flocculation and Clarification in a SINGLE unit
High overflow rates and shorter detention time vs conventional clarifiers resulting in smaller footprint
Utilises the solids contact principle plus unique “controlled recirculation” bringing previously formed flocs “in contact” with the raw water.
Varied Applications in Surface Water Treatment for Removal of Turbidity, Suspended Solids, Softening, Colour, Taste and Odour; Primary and Tertiary Treatment of Municipal wastewater, Pulp & Paper, Metal Hydroxide Removal, Steel Waste etc.
Half Bridge with Bottom Feed:
Bridge spanning half the tank diameter & Rake Arms spanning full tank diameter
Rugged Drive Head with torque overload with independent mixer drive.
Feed from bottom of tank connecting to central draft tube
Available for sizes upto 50M and above
Full Bridge with Side Feed:
Bridge & Rake Arms spanning the tank diameter
Dual Stack drive arrangement with torque overload
Feed from side connecting to central draft tube
Available for sizes upto 18M and above
Suction Clarifier What is it
:
A clarifier mechanism employing a unitube header (a specially designed rectangular shaped arm provided with orifices) in place of conventional rake arms, which sucks the settled sludge hydraulically for further withdrawal.
Additional Information:
Delivery Time: 7-8 WEEKS
Specification
|
item
|
value
|
|
Condition
|
New
|
|
Applicable Industries
|
Hotels, Garment Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company
|
|
Showroom Location
|
Gujarat, India
|
|
Video outgoing-inspection
|
Provided
|
|
Machinery Test Report
|
Provided
|
|
Marketing Type
|
Hot Product 2019
|
|
Warranty of core components
|
1 Year
|
|
Core Components
|
Gearbox, Pressure vessel, Pump, Gear, Bearing, Engine, Motor, PLC
|
|
Place of Origin
|
India Gujarat
|
|
Brand Name
|
NEOTECH WATER
|
|
Material
|
Mild Steel
|
|
Weight
|
Depends on capacity
|
|
Size
|
Depends on capacity
|
|
Power
|
Depends on capacity
|
|
Warranty
|
1 Year
|
|
Productivity
|
0-50 m3/day
|
|
Weight (KG)
|
25000kg
|
|
Product name
|
Clarification Neotech Wastewater Clarifiers
|
|
Type
|
Circular
|
|
Water Source Type
|
Industrial Effluent
|
|
Industry
|
Petroleum Industry
|
|
Treatment Technique
|
Membrane Bioreactor
|
|
Treatment Capacity
|
2500 m3/hr
|
|
Bridge Width
|
0.75 m
|
|
Operating Temperature
|
normal
|
|
Capacity
|
150 M3/HR
|
Packing & Delivery
As per customer requirement.....
