High efficiency and energy saving, with world-class airborne variable frequency driving technology, which greatly improves energy efficiency of the unit, and the highest integrated part load performance coefficient (IPLV) could reach about 10
;
- Product Details
- {{item.text}}
Quick Details
-
Voltage:
-
Customized
-
Dimension(L*W*H):
-
3600*765*1650mm
-
Weight:
-
KG
-
After-sales Service Provided:
-
Overseas third-party support available
-
Compressor type:
-
Semi-enclosed Twin-screw Compressor
-
Refrigerant:
-
R22 or customized
-
Evaporator:
-
Tube Heat Exchanger
-
Application:
-
Industrial Cooling Solutions
-
Name:
-
water cooled industrial chiller
-
Marketing Type:
-
Hot Product
Quick Details
-
Condition:
-
NEW100%
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
XIECHENG
-
Voltage:
-
Customized
-
Dimension(L*W*H):
-
3600*765*1650mm
-
Weight:
-
KG
-
After-sales Service Provided:
-
Overseas third-party support available
-
Compressor type:
-
Semi-enclosed Twin-screw Compressor
-
Refrigerant:
-
R22 or customized
-
Evaporator:
-
Tube Heat Exchanger
-
Application:
-
Industrial Cooling Solutions
-
Name:
-
water cooled industrial chiller
-
Marketing Type:
-
Hot Product
Product Description

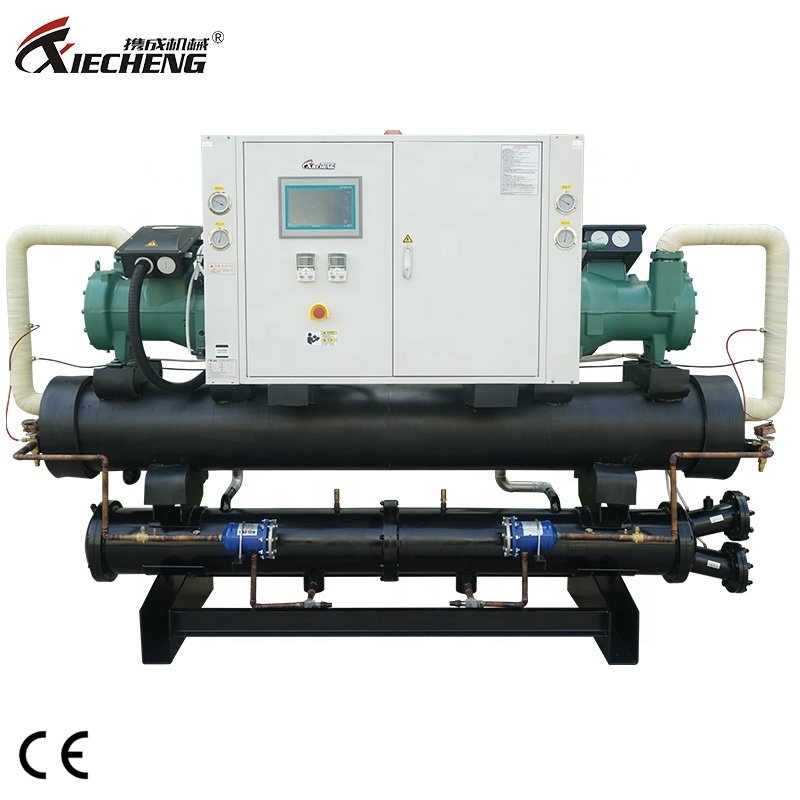

Water Chiller With Convertor
The frequency conversion control system of water chiller with convertor can realize stepless adjustment from 1% to 100%, so that the compressor is always at the optimal speed, thereby increasing the energy consumption ratio, and saving 20% to 30% compared with ordinary screw chillers.
It is widely used in plastics, electronics manufacturing, electroplating, pharmaceutical and chemical, ultrasonic cooling, printing and other industrial productions. It can precisely control the temperature required for modern industrial manufacturing and largely improve efficiency and product quality.
Suitable for various industries
Industrial water chiller is to provide a cooling process in plastic molding, to improve quality of molded products and shorten period of injection molding cycles. Hence maximizes productivity of plastic molding manufacturing.
Product Specifications
|
Model
|
Unit
|
XC-L50WS
|
XC-L60WS
|
XC-L80WS
|
|||
|
Refrigerating Capacity
|
KW
|
152
|
172
|
230
|
|||
|
|
Kcal/h
|
130720
|
147920
|
197800
|
|||
|
Input Power
|
KW
|
37
|
45
|
60
|
|||
|
Control Type
|
Expansion Valve
|
|
|
|
|||
|
Refrigerant
|
R22(R407C)
|
|
|
|
|||
|
Compressor
|
Type
|
Semi-hermetic Screw
|
|
|
|||
|
|
Quantity
|
1/2/4
|
|
|
|||
|
|
Startup Mode
|
Y-△start
|
|
|
|||
|
|
Capacity Control (%)
|
0-25-50-75-100
|
|
|
|||
|
Power
|
|
3PH-380V/50HZ(200V/220V/415V 50HZ/60HZ)
|
|
|
|||
|
Evaporator
|
Type
|
Shell and Tube Type
|
|
|
|||
|
|
Cooling Water Flow(m3/h)
|
26
|
30
|
39
|
|||
|
|
Water Pipe Diameter(inch)
|
3''
|
3''
|
4''
|
|||
|
Condenser
|
Type
|
Shell and Tube
|
|
|
|||
|
|
Cooling Water Flow(m3/h)
|
33
|
40
|
45
|
|||
|
|
Water Pipe Diameter(inch)
|
3''
|
4''
|
4''
|
|||
|
Safety Protection
|
High and Low Pressure Protection, Overload Protection,Overtemperature Protection, Phase Sequence Protection,etc.
|
|
|
|
|||
|
Dinmensions (L*W*H)
|
mm
|
2340*800*1670
|
2580*800*1720
|
3130*900*1860
|
|||
If you want more sizes, please contact us for details
Product Details
01
Semi-hermetic Compressors
▪ Adopted world
famous branded semi-hermetic compressors
for long term reliable and efficient running;
▪ Compressor runs with no stage limits to realize stageless continuous adjustment of cooling capacity in between
25%-100%
power loaded and maintaining stable outputs;
▪ Option:
HANBELL, BITZER
02
Shell and Tube Evaporator & Condenser
Shell and tube
condenser
adopts high-precision
external treaded copper
design and shell and tube type
evaporator
adopts
inner treaded copper
design, with larger heat exchanging area for higher efficiency and maximizing system performance.
03
Frequency Conversion Control System
▪
Advantage of frequency conversion, the soft start of chiller can reduce impact of the starting current, built-in DC reactor can minimize the harmonic interference;
04
PLC Controller
▪ Adopted the latest generation
PLC controller
to realize precision control of the unit, ensuring efficient and stable running;
▪ Accuracy of outlet chilled water temperature within
±0.5 Celsius degrees
;
▪ Equipped with
one week 24 hours timing function
to enable automatic operation by appointment;
▪ Equipped with
RS485 communication function
to realize automatic remote management.
Instead of capillary copper tube, it is resistant to high temperature and high pressure, and will not cause refrigerant leakage due to excessive pressure.
Product Actual Shooting
Protection System
Current overload protection, high and low pressure protection system and electronic time delay, and an abnormal visual displaysystem.
Application Range
The chiller is used in the plastic processing machinery mold cooling, electroplating industry,machinery industry, building
industry, vacuum coating and food industry,etc.
