Features

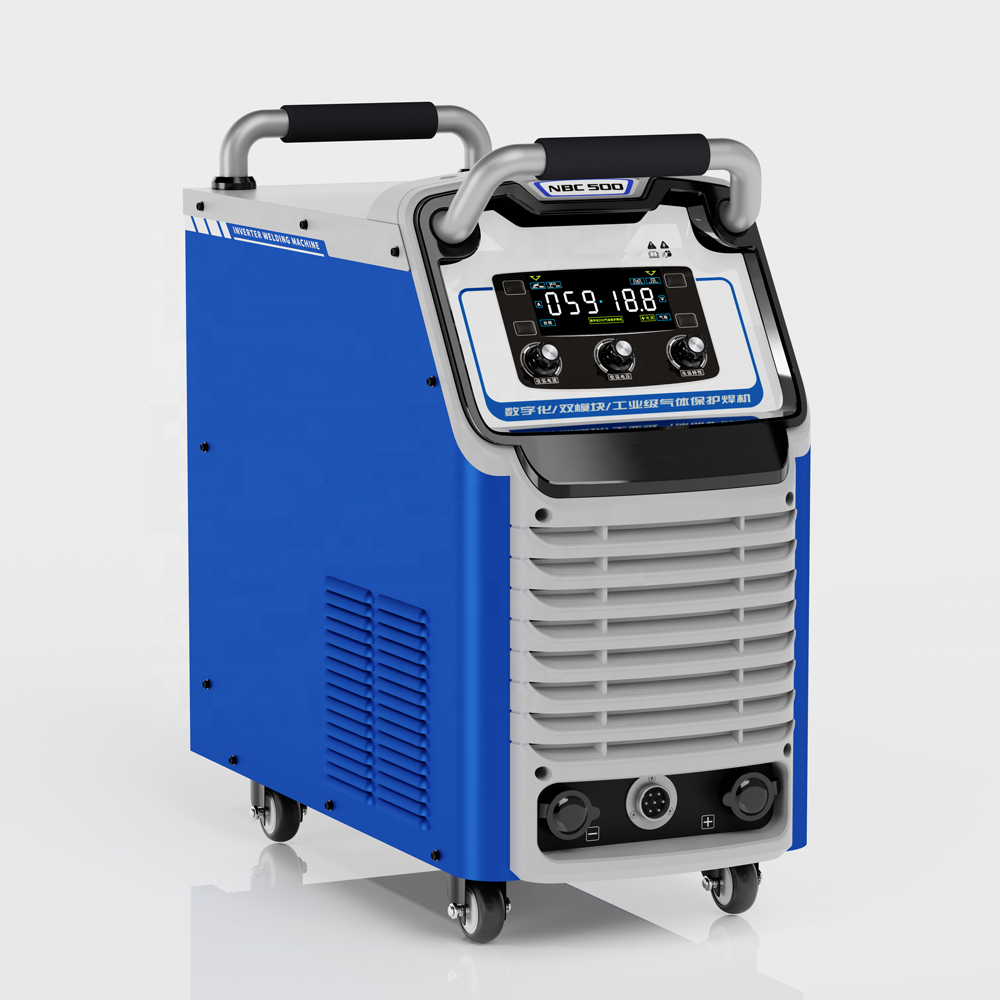

*MULTI FUNCTION MIG WELDER - 500A with MIG/ARC/LIFT TIG gas gasless multi Function 380V DC inverter welder
*GAS&GASLESS AVAILABLE - (0.8-1.6mm) solid wire with gas welding iron; 0.030 0.032 (0.8-1.2mm) flux-cored wire without gas welding carbon steel and stainless steel
Digital precise control, with a variety of intelligent control functions and modes. Accurately preset current voltage and excellent dynamic characteristics. IGBT inverter technology, , Sufficient output current, industrial usage: MIG/MAG & MMA.
Short -circuit transition waveform control, stable welding current, less spatter. Arc force and welding ball cutting circuit make sure arc start successfully. Full LED digital control system. Dustproof, waterproof, anti -corrosion
protection. With independent air ducts, for better heat dissipation and better dustproof. Solid wire with gas welding or flux-cored wire without gas welding carbon steel and stainless steel.
*QUALITY Optional ACCESSARIES -MIG torch, earth clamp, electrode holer
*1 YEAR WARRANTY
- Product Details
- {{item.text}}
Quick Details
-
Rated Input Voltage:
-
380 V
-
Rated Output Voltage (MIG):
-
50 V
-
Welding Current/Voltage Range:
-
50-5000A 15-50V
-
Wire Feeding Speed:
-
5 m/min
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Costar
-
Dimensions:
-
740*405*710mm
-
Use:
-
gas gasless mig mma welder
-
Weight (KG):
-
35.2 KG
-
Product name:
-
Induction 500amp mig welding machine
-
Application:
-
Industrial Metal Welding
-
Color:
-
Customized Color
-
LOGO:
-
Customized logo Available
-
Name:
-
MIG250
-
Wire diameter( mm):
-
0.8/1.0
-
MMA function:
-
Available
-
Duty Cycle:
-
40%
-
After-sales Service Provided:
-
Overseas Service Provided
-
Certification:
-
CCC,CE
Quick Details
-
Wire Melting Type:
-
Spray Transfer
-
Max. Load Power Capacity:
-
25KVA
-
Rated Duty Cycle @40°C (MIG):
-
60%
-
Rated Input Voltage:
-
380 V
-
Rated Output Voltage (MIG):
-
50 V
-
Welding Current/Voltage Range:
-
50-5000A 15-50V
-
Wire Feeding Speed:
-
5 m/min
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Costar
-
Dimensions:
-
740*405*710mm
-
Use:
-
gas gasless mig mma welder
-
Weight (KG):
-
35.2 KG
-
Product name:
-
Induction 500amp mig welding machine
-
Application:
-
Industrial Metal Welding
-
Color:
-
Customized Color
-
LOGO:
-
Customized logo Available
-
Name:
-
MIG250
-
Wire diameter( mm):
-
0.8/1.0
-
MMA function:
-
Available
-
Duty Cycle:
-
40%
-
After-sales Service Provided:
-
Overseas Service Provided
-
Certification:
-
CCC,CE
Products Description
|
Model Name
|
MIG500
|
|
Input Voltage(V,HZ)
|
380V±15% 50/60Hz
|
|
Input current(A)
|
38.5
|
|
Rated input power (KVA)
|
25
|
|
Output current adjustment range (A)
|
50-500
|
|
No load Voltage(V)
|
72
|
|
Rated output Voltage(V)
|
15-50
|
|
Duty cycle(%)
|
60
|
|
Efficiency(%)
|
80
|
|
Power factor(COSφ)
|
0.93
|
|
Wire diameter( mm)
|
0.8/1.0/1.2/1/6
|
|
Wire feeder
|
Out
|
|
Weight (kg)
|
35.2
|
|
Dimension(mm)
|
740*405*710
|
|
Insulation grade
|
F
|
|
Housing protection grade
|
IP21S
|
|
Optional accessories
|
3m torch
2.0m welding cable with earth holder,
2.0m welding cable with earth clamp
|
|
Related MIG series
|
MIG120, MIG200, MIG250, MIG315, MIG350IJ, MIG500IJ, MIG630IJ
Double Pulse MIG, MIG200P, MIG250P, MIG280P, MIG350P, MIG500P
Gasless MIG MIG160(1KG), MIG200(1-5KG), MIG250(5KG)
|
Accessories and packaging
WHAT CAN WE DO FOR YOU:
● WITHIN 12 HOURS TECHNOLOGICAL ANSWER.
● WITHIN 12 HOURS TECHNOLOGICAL ANSWER.
● WITHIN 24 HOURS TECHNOLOGICAL SOLUTION SUPPORT.
● WITHIN 72 HOURS SPARE PARTS SENDING.
● ONE YEAR WARRANTY FOR ALL PRODUCTS.
● TECHNOLOGICAL TRAINING AND VIDEO SUPPORT AVAILABLE.
● WITHIN 72 HOURS SPARE PARTS SENDING.
● ONE YEAR WARRANTY FOR ALL PRODUCTS.
● TECHNOLOGICAL TRAINING AND VIDEO SUPPORT AVAILABLE.
