Quick Details
-
Voltage:
-
220V
-
Power:
-
3.5KW
-
Dimension(L*W*H):
-
1800X1000X1500mm
-
Weight:
-
850
-
Product name:
-
Automatic Wet Tissue Packing Machine
-
Function:
-
Sealing
-
Packing speed:
-
180-260pcs/minute
-
Material:
-
304 Stainless Steel
-
Bag type:
-
Three Side
-
Length of bags:
-
60-220mm
-
Packaging width:
-
30-110mm
-
Packaging height:
-
5-55mm
-
Film Width:
-
120-230mm
Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
SOULYAM
-
Marketing Type:
-
New Product 2022
-
Voltage:
-
220V
-
Power:
-
3.5KW
-
Dimension(L*W*H):
-
1800X1000X1500mm
-
Weight:
-
850
-
Product name:
-
Automatic Wet Tissue Packing Machine
-
Function:
-
Sealing
-
Packing speed:
-
180-260pcs/minute
-
Material:
-
304 Stainless Steel
-
Bag type:
-
Three Side
-
Length of bags:
-
60-220mm
-
Packaging width:
-
30-110mm
-
Packaging height:
-
5-55mm
-
Film Width:
-
120-230mm
Products Description

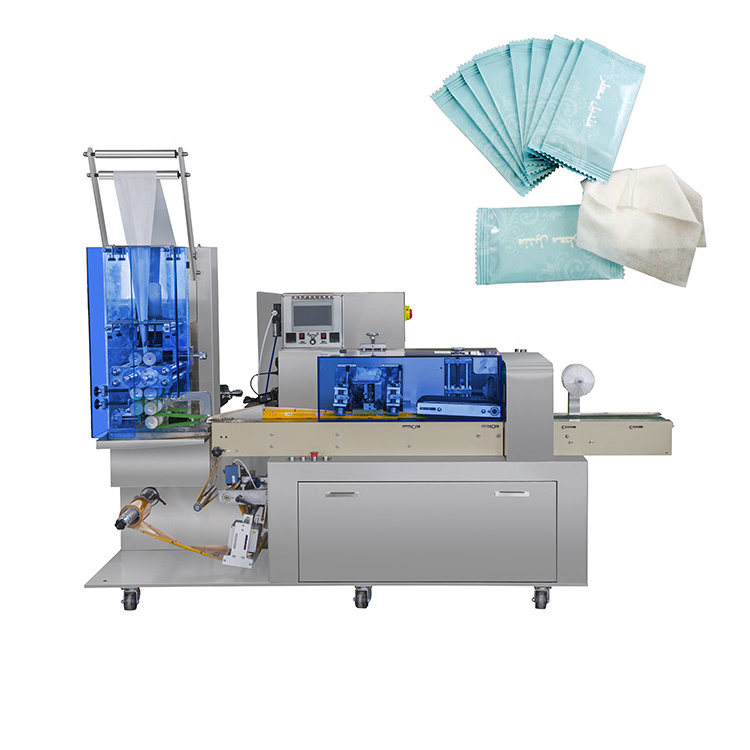

JBK-260 Full Automatic Wet Wipes/Tissue Packing Machine
|
Model
|
JBK-260
|
|
Packing Material
|
OPP heat sealing film, composite film, aluminum compound film
|
|
Productive Process
|
Automatic folding, humidifying, cutting, packing, printing date
|
|
Compressed Air Pressure
|
0.5-0.7 Mpa
|
|
Noise
|
60-70dB
|
|
Capacity:bag/min
|
150-220 bags/min
|
|
Size of bag
|
L:60-220mm W:30-110mm H:5-55mm
|
|
Total power
|
3.5kw 50Hz AC220V
|
|
Dimension(L*W*H)
|
1800*1000*1500mm(L*W*H)
|
|
Weight
|
850kg
|
|
Exhaust
|
With Exhaust
|
Machine Featrues
I
1). 3 Servo Motor control, flexible bag length cutting. Save time and film
2). 7 inch touch screen, easy operation and multiple language for choice.
3). Smart PLC system, machine performance is stable, convenient for change parameter
4). Self diagnosis failure function, machine error can be clearly displayed in the touch screen.
5). Separate PID temperature controller, suitable for various packing materials
6). High sensitivity optical photocell for eye mark tracking, digital input for cutting position.
7). Position stop function, no adhesive and no waste of membrane and protect cutter.
8). Simple driving system, stable performance and convenient maintenance.
9). According to different product, the input conveyor can use pusher, belt or film for transportation.
10). High sensitive sensor to track the color mark, so the position of sealing and cutting will be more accuracy.
11).Automatic Detect the products, if no product feeding into the film, the machine will stop, no empty bag and no cutting the products.
12). No limit for product length
2). 7 inch touch screen, easy operation and multiple language for choice.
3). Smart PLC system, machine performance is stable, convenient for change parameter
4). Self diagnosis failure function, machine error can be clearly displayed in the touch screen.
5). Separate PID temperature controller, suitable for various packing materials
6). High sensitivity optical photocell for eye mark tracking, digital input for cutting position.
7). Position stop function, no adhesive and no waste of membrane and protect cutter.
8). Simple driving system, stable performance and convenient maintenance.
9). According to different product, the input conveyor can use pusher, belt or film for transportation.
10). High sensitive sensor to track the color mark, so the position of sealing and cutting will be more accuracy.
11).Automatic Detect the products, if no product feeding into the film, the machine will stop, no empty bag and no cutting the products.
12). No limit for product length
Products Description
Touch Screen
Easy Control Touch Screen , it can be set up the relevant language according to customer’s requirement. Simple page, easy operation, automatic fault diagnosis function, so the fault can be seen and understood more clearly, easier to maintenance. Memory function, save debugging time for packing different products and save the packing film.
Verticle Back Sealing
Separate PID temperature controller, good sealing performance, suitable for various packing materials
Separate PID temperature controller, good sealing performance, suitable for various packing materials
Exhaust Belt
It can packing flat products less air inside
It can packing flat products less air inside
4 Servo Motor + 4 Servo Controller
Horizontal Sealing Blade :
Single/double/triple blade can be optional, Prevent cutting product, the Blade will reversing rotation and stop once its cutting the product
