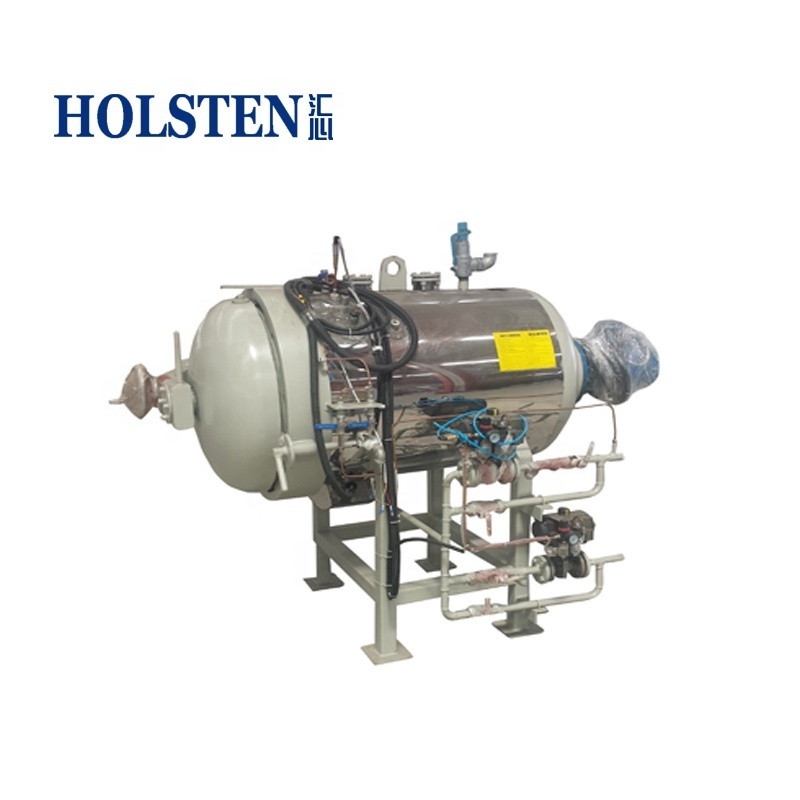

Composite carbon fiber laboratory autoclave baking oven lab autoclave
Composite carbon fiber laboratory autoclave baking oven lab autoclave
Composite carbon fiber laboratory autoclave baking oven lab autoclave
Composite carbon fiber laboratory autoclave baking oven lab autoclave
Composite carbon fiber laboratory autoclave baking oven lab autoclave
Composite carbon fiber laboratory autoclave baking oven lab autoclave
Composite carbon fiber laboratory autoclave baking oven lab autoclave
Composite carbon fiber laboratory autoclave baking oven lab autoclave

Composite carbon fiber laboratory autoclave baking oven lab autoclave

FOB Reference Price: Get Latest Price
≥1 Sets
US $5000
≥2 Sets
US $4800
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Brand Name:
Holsten
Dimension(L*W*H):
600mm*600mm
Capacity:
170L
Weight:
500
Inner Material:
carbon steel/stainless steel
Design Pressure(MPa):
1.5
Design Standard:
GB150
Working Temperature(℃):
150 - 180 ℃
Name:
Composite carbon fiber laboratory autoclave baking oven lab autoclave
Type:
Composite carbon fiber autoclave
Style:
Horizontal
Raw material:
Carbon steel / stainless steel
Function:
High temperature & high pressure
Application:
Composite carbon fiber material
Medium:
Hot air
Insulation:
Internal insulation / external insulation
Heating method:
Electric heating
Cooling method:
Water cooling / air cooling

Quick Details

Volume (m³):
0.17
Max Working Pressure(MPa):
1.2
Place of Origin:
Shandong, China
Brand Name:
Holsten
Dimension(L*W*H):
600mm*600mm
Capacity:
170L
Weight:
500
Inner Material:
carbon steel/stainless steel
Design Pressure(MPa):
1.5
Design Standard:
GB150
Working Temperature(℃):
150 - 180 ℃
Name:
Composite carbon fiber laboratory autoclave baking oven lab autoclave
Type:
Composite carbon fiber autoclave
Style:
Horizontal
Raw material:
Carbon steel / stainless steel
Function:
High temperature & high pressure
Application:
Composite carbon fiber material
Medium:
Hot air
Insulation:
Internal insulation / external insulation
Heating method:
Electric heating
Cooling method:
Water cooling / air cooling

Composite carbon fiber laboratory autoclave baking oven lab autoclave

Product Description

The autoclave is a key equipment for hot-pressing shaping of carbon fibers and resin matrix composites ( polyimide, bismaleimide, epoxy resin and thermoplastic resin matrices, etc. ), In fact, the quality of the product is obtained inside the autoclave reaching an increase of mechanical features up to 20-30% compared to other methods of polymerization .

Product application

The carbon fiber autoclave composite curing oven mainly used to the composite materials by high temperature and high pressure, such as military products,space vehicle.It also can be applied to strengthen the carbon fiber,glass fiber etc.

Product Details

1.Our ram material is national goverment pointed famous steel factory and standard pressure vessel special plate--Q345R .Each steel is tested before leaving factory.It have good bear pressure.

2.Heating area is uniform,according to your working technology to design inside heating system,we have special design heating sink,it is arranged in the up side,bottom,left side and right side.

3.Autoclave usually adopt external insulation ,the galvanized sheet is welded around the tank (it wont rust within 10 years),inside are 80mm insulation cottom,heat insulation head add 60mm thermal insulation, then add fixed bolt .To make inside heating value can be used enough and reduce consumtion, save cost.

Heating mode:

1.Heat conduction oil heating

2.Steam direct heating

3.Electrically heated air

4.Electrically heated steam

Door opening mode :

1.Power-driven

2.Hand-driven

3.Hydrodynamic-driven

4.Various types of vulcanization tank and quick-opening door safety interlocking devices can be provided separately.(Company advantage)

Sealing mode :

Inflatable silicone seal rings are used for tank door flanges which is simple and convenient to maintain and the sealing effect is obviously better than other methods with more than 2 years of service life.

Safety chain mode :

1.Pressure automatic safety interlock

2.Manual safety chain

Temperature control mode:

It uses double layer external insulation, saving thirty percent of energy consumption than ordinary insulation.
Pressure control mode:

(1) Pressure in vulcanization tank is automatically controlled by pneumatic corner valve .

(2) Set up manual valve for easy manual control .

(3) Set up another set of disc pressure gauge .

(4) The tank body is designed with two flanged open safety valves, which can be opened automatically after the designed pressure is reached.

Time control mode:

After setting working procedure, heating/keep-heating time and v ulcanization time all will be automatically controlled .

Loading mode:

Two rails in tank, using national standard guide rail.

Brand and Material of Major Components :

No.

item

material

1

dished head

carbon steel Q345R

2

tank

carbon steel Q345R

3

flange

f orged carbon steel

4

safety interlocking device (pressure automatic)

5

track

carbon or stainless steel

6

manual door opening device

7

saddle

carbon steel Q235B

8

High temperature and high pressure fan ventilator

air or water cooling

9

thermal insulation head

carbon steel Q235B

10

Insulation material (double layer)

aluminum silicate cotton
