Hot Sale Flaker Scraper Drum Dryer for Cassava Starch with Sulphuric Acid Treatment

1. High thermal efficiency. The principle of heat transfer of rotary dryer is heat conduction which heat conducting direction

keeps identical with operation cycle. Except cap heat dissipation and radiation loss, all heat energy can be used for evaporating wet materials on the wall of roller. Thermal efficiency could reach 80%-90%.

2. Large operation elasticity and wide application. Various drying factors of the rotary drier can be adjusted, such as density of feeding materials, thickness of materials film, temperature of heating medium, rotating speed of roller etc, which can change drying speed. As these factors have no interrelations with each other, it brings great convenient to dry operation, and makes it applicable to suit various materials and to meet different requirement of production.

3. Short drying period. The drying period of material is normally 10 to 15 seconds, so it is suitable for heat-sensitive material.It can be also working under less pressure condition if it is put in vacuum device.

4. Drying rate is very quick. As material film coated on the wall of roller is very thin. Normally thickness is 0.3-1.5 mm, plus

heat and mass transfer direction are identical, the evaporation capacity on the surface of film can keep at 15-70kg.H2O/m2.h.

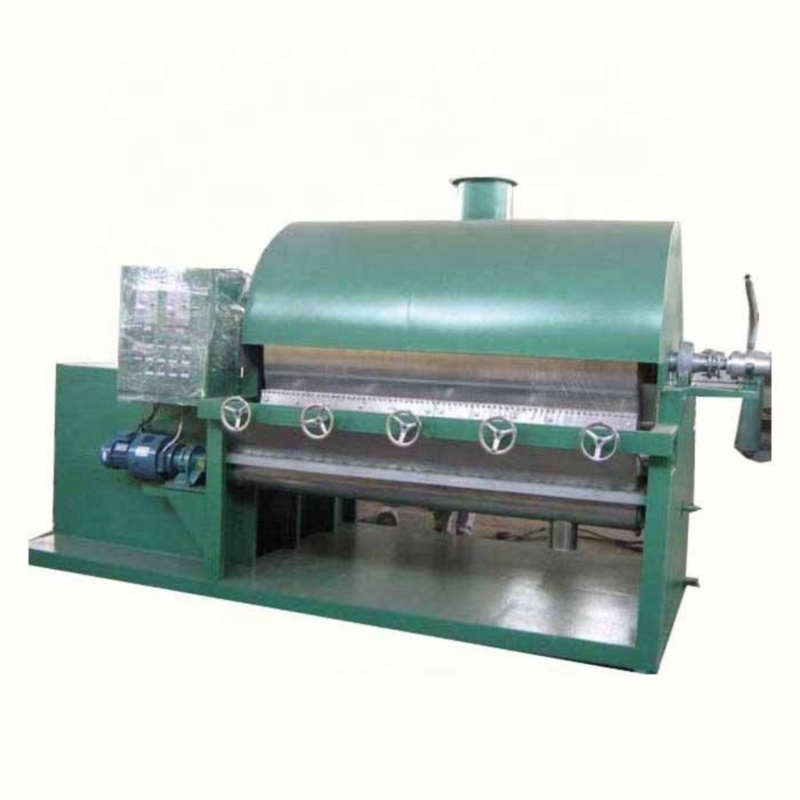

The rotary drum scraper dryer is a kind of internal heating conduction rotary continuous drying equipment.Rotating drum through its lower trough, adhered to a thickness of material film, heat through the pipe to the drum wall, conduction to the drum wall, and then conduction to the material film, so that the moisture in the material film evaporation, dehumidification, wet materials are dry.The dry material is shoveled away from the drum by the scraper on the surface of the drum, to the screw conveyor below the scraper, and the dry material is concentrated and packaged through the screw conveyor.
