Parker pilot operated acting reducing relieving valves regulated pressure PRH101S50 Threaded cartridge hydraulic

Parker pilot operated acting reducing relieving valves regulated pressure PRH101S50 Threaded cartridge hydraulic

FOB Reference Price: Get Latest Price

≥2 Pieces

US $30

≥100 Pieces

US $20

≥500 Pieces

US $18

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Place of Origin:: Shanghai, China

Weight:: 0.25

Power:: 0

Dimension(L*W*H):: 4*4*7

Maximum pressure:: 350bar

Maximum Flow Rate:: 56.3L/min

Type:: Hydraulic Fittings

Product name:: Pressure Reducing

Material:: Cast Iron

Usage:: Machinery Hydraulic System

Application:: Industrial Machinery

MOQ:: 1 Piece

Delivery Time:: 1-2Days

Media:: Hydrualic Oil

Brand:: X-hydraulics

Name:: HydraulicCartridge Valve

Quick Details

Warranty:: 1 Year

Valve type:: PRESSURE CONTROL VALVE

Brand Name:: X-hydraulics

Place of Origin:: Shanghai, China

Weight:: 0.25

Power:: 0

Dimension(L*W*H):: 4*4*7

Maximum pressure:: 350bar

Maximum Flow Rate:: 56.3L/min

Type:: Hydraulic Fittings

Product name:: Pressure Reducing

Material:: Cast Iron

Usage:: Machinery Hydraulic System

Application:: Industrial Machinery

MOQ:: 1 Piece

Delivery Time:: 1-2Days

Media:: Hydrualic Oil

Brand:: X-hydraulics

Name:: HydraulicCartridge Valve

Product Overview

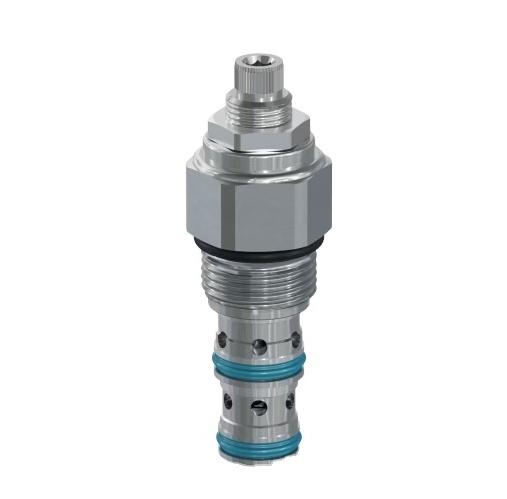

Pressure Reducing/Relieving Valve Series PRH101 Cavity C08-3

Pilot Operated Pressure Reducing/ Relieving Valve. For additional information see Technical Tips on pages PC1-PC6.

FEATURES AT A GLANCE

Features

• Hardened, precision ground parts for durability

• Low profile adapter for minimal space requirements

• Fully guided poppet for more consistent reseat

• Steel adapters are zinc plated

• Polyurethane “D”-Ring eliminates backup rings and prevents hydrolysis

• Internal screening protects pilot spring from debris

PRODUCT SPECIFICATIONS

No	Item	Data
1	Rated Flow	56.8L/min
2	Maximum Inlet Pressure Setting	350 Bar (5000 PSI)
	Maximum internal leakage @150 SSU (32 cSt)	5 cc per 100 PSI (6.8 Bar) setting
4	Operating Temp. Range/Seals	-45°C to +132°C (“D”-Ring) (-50°F to +270°F) -34°C to +121°C (Nitrile) (-30°F to +250°F) -26°C to +204°C(Fluorocarbon) (-15°F to +400°F)
5	Cavity	C10-3
