Metal clad enclosed high voltage switchgear details listed as belows:
General
KYN28-12KV removable AC metal-clad switchgear short for switchgear as below is a new product designed
and developed by our company It is based on the introduction of advanced foreign design and manufacturing
technology. Applied to 3.6-12KV,3-phase AC50Hz network,the panel is used for the reception and distribution
of power energy and the system’s control,monitor and protection.it can be arranged for single busbar, single
busbar sectionalized system and double busbar.The panel meets IEC298 “AC Metal Enclosed Switch and Control
Equipment above 1KV and below 52KV”IEC 694“Standard Common Clauses for High Voltage Switchgear"
DIN.VDE “AC Switchgear at Rated Voltage above 1KV”GB3906 “3~35KV AV Metal Enclosed Switchgear”and
so on. It has perfect and reliable prevention against misoperation.
Products feature
1.This product is applicable for our own made GPVN-12KVembedded or insulating sleeve vacuum circuit breaker or ABB's VD4 vacuum circuit
breaker.
2.We produce and configure GPVC vacuum contactor-fuse combination or ABB company’sVC vacuum contactors,which can be composed of F-C loop cubicle, to meet electricity system of power plants and.
3.The cabinet adopts double bending bending process and excellent aluminum-zinc steel plate produced by precision CNC machining equipment,which improve its strength.
4.The door surface adopts epoxy resin electrostatic powder spray process,with resistance of corrosion. oxidation and impact and strona adhesion.
5.The cabinet with enclosed structure is fully armored and the function units are completey separated.When the door is closed, it can achieve the operation of circuit breaker and earthing switch.
6.Precision screw drive mechanism ensures the chassis with good interchangeability.
7.The perfect primary plan meets the various needs of users and enables double chassis plan.
8.Fast grounding switch for earthing and short circuits achieves electric(Motorized) operation.
9.Simple and effective“Five Protection"interlocking device can reliably prevent misuse and ensure operators safety.
10.lt is arc-proof type.There are pressure relief devices on the top bus compartment,vacuum circuit breaker compartment and cable terminalcompartment.
10.
Cable compartment has enough space so it can be easy to connect several cab;es and ensure the right installation height of the cable plug
11.it has strict protection rating(IP4X) to effectively prevent foreign matter or pest invasion.
12.The security monitorina device of the optional secondary system has a self-diagnostic function and computer with data communication and intelligent .integration,to achieve remote controltelemetry,viewing and adjustment.
13.lt meets GB3906,GB/T11022,DL404 and IEC62271-1standard,and passes a comprehensive fest and plateau fest (3000m)1
14.lt passes electromagnetic compatibility tests in the high voltage equipment test laboratory.
|

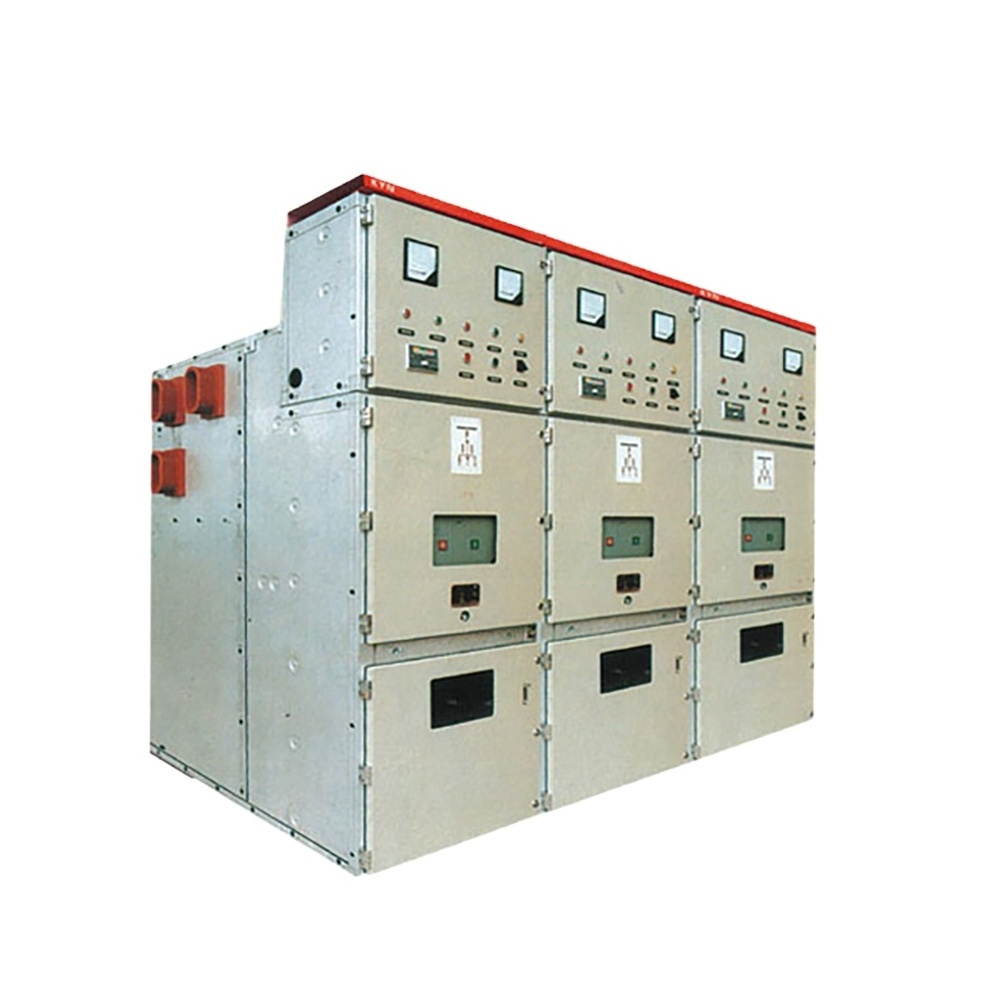

KYN28-12KV
|
|
|
|
|||
|
Item
|
|
Unit
|
Data
|
|||
|
Rated voltage
|
|
KV
|
6~12
|
|||
|
Rated frequency
|
|
Hz
|
50/60
|
|||
|
Rated current
|
|
A
|
630-4000
|
|||
|
Rated insulation level
|
1min power frequency(Phase to earth/across open contacts)
|
KV
|
42/48
|
|||
|
|
lightning impulse withstand voltage (Phase to earth/across open contacts)
|
KV
|
75/85
|
|||
|
Main busbar rated current
|
|
A
|
1250,1600,2000,2500,40000
|
|||
|
Sub-busbar rated current
|
|
A
|
630,1250,1600,2000,2500,3150
|
|||
|
Rated short time withstand current(4s)
|
|
KA
|
16,20,25,31.5,40,50
|
|||
|
Rated peak withstand current
|
|
KA
|
40,50,63,80,100,1250
|
|||
|
Protection degree
|
|
|
Enclosure IP4X,IP2X(VCB door opened)
|
|||
|
Outline dimension(W)*(D)*(H)
|
|
mm
|
650(800,1000)/1500(1300,1670,2000)/2300
|
|||
|
Weight
|
|
KG
|
500~1200
|
|||
