Quick Details
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
LOMBA
-
Model Number:
-
SYW-B
-
Product name:
-
Portable Hand Winch
-
Material:
-
Carbon Steel
-
Rope type:
-
Steel Wire
-
Capacity:
-
2600lbs
-
Color:
-
Silver White
-
Brake:
-
Automatic
-
Usage:
-
Cable Pulling Machine
-
Package:
-
Carton
Quick Details
-
Power:
-
1400W
-
Application:
-
BOAT
-
Voltage:
-
hand
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
LOMBA
-
Model Number:
-
SYW-B
-
Product name:
-
Portable Hand Winch
-
Material:
-
Carbon Steel
-
Rope type:
-
Steel Wire
-
Capacity:
-
2600lbs
-
Color:
-
Silver White
-
Brake:
-
Automatic
-
Usage:
-
Cable Pulling Machine
-
Package:
-
Carton

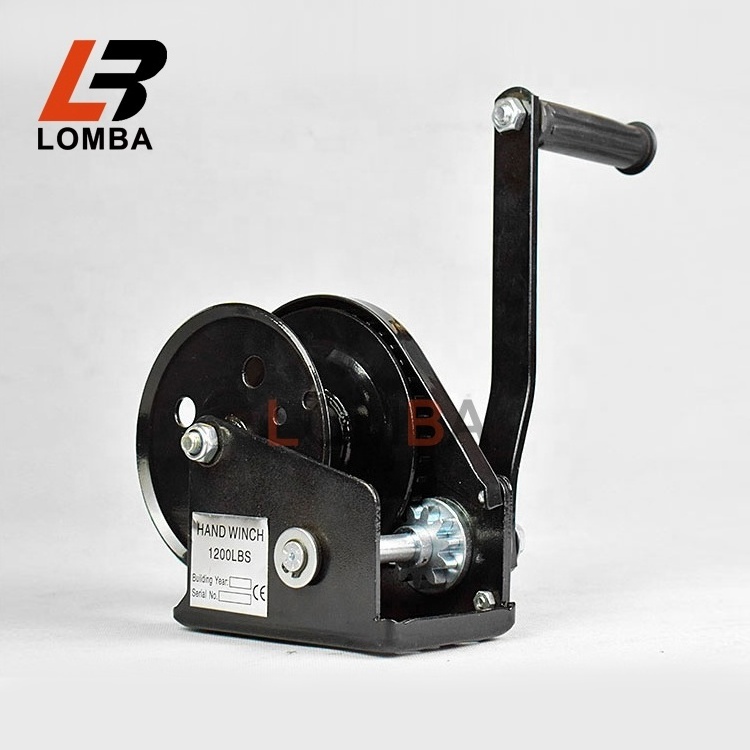

1200LBS 1800LBS 2600LBS Heavy Duty Wire Rope or Strap Manual Operated Hand Winch
Model: SYW-B
Technical Specialities
- Positive Weston-style brake will hold the load in any position.
- Compact, lightweight and rugged construction.
- Mechanical components enclosed for protection and safety.
- Available with a powder-coated or a marine-coated corrosion resistant finish.
- Rope to drum fixing clamp provided.
- Heat-treated gears.
- Strong removable handles.
- High precision construction minimises gear noise.
- CE and GS Compliance applies when correctly fitted with approved wire rope and fittings.
- SYW-B models available with marine-coated Kylan finish.
- SYW-B1200 / SYW-B1800 / SYW-B2600 also available in stainless steel.
- SYW-B1200 available as a noiseless model.
- Available with optional rope.
|
Model |
SYW-B12 |
SYW-B18 |
SYW-B26 |
|
|
Rated Capacity |
Lbs |
1200 |
1800 |
2600 |
|
Test Load |
KN |
8 |
12.13 |
17.64 |
|
Gear ratio |
4.2:1 |
5:1 |
10:1 |
|
|
Number of speed |
1 |
1 |
1 |
|
|
Dimenaion (mm) |
A |
156 |
203 |
216 |
|
B |
184 |
256 |
293 |
|
|
C |
88 |
107 |
127 |
|
|
D |
210 |
319 |
319 |
|
|
E |
27 |
27 |
27 |
|
|
F |
272 |
283 |
305 |
|
|
G |
51 |
60 |
63 |
|
|
H |
109 |
109 |
109 |
|
|
Net Weight |
kg |
3.7 |
7.7 |
10.1 |
|
Packing Measurement |
cm |
16x16x22 |
35x20x23 |
35x24x24 |
