Quick Details
-
Dimension(L*W*H):
-
1200x830x1100mm
-
Weight:
-
400kgs
-
Warranty:
-
1 year or 1500 running hours
-
Certification:
-
SASO/CIQ/CE/ISO
-
Product name:
-

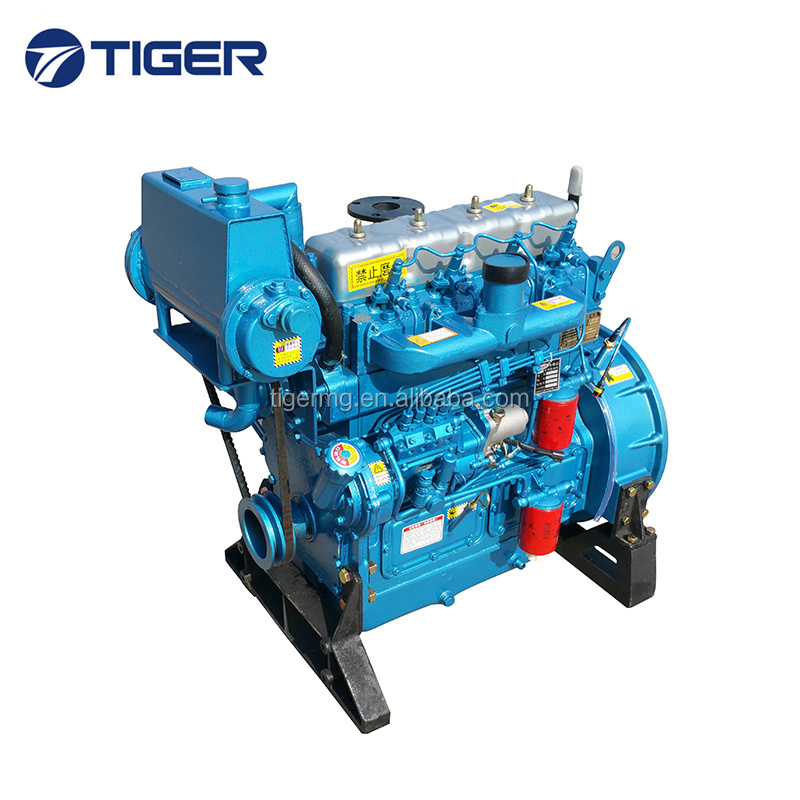

25 hp marine diesel engine
-
Rated power:
-
25hp
-
Engine type:
-
water-cooled 4-stroke
-
Governor type:
-
mechanical
-
Cylinders No.:
-
4
-
Bore* stroke:
-
100*115mm
-
Displacement:
-
3.61L
-
Start method:
-
12V electric start
-
Intake method:
-
naturally aspirated
-
Interface size:
-
SAE 3# 11.5'
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
TMTC
-
Model Number:
-
4100C
-
Dimension(L*W*H):
-
1200x830x1100mm
-
Weight:
-
400kgs
-
Warranty:
-
1 year or 1500 running hours
-
Certification:
-
SASO/CIQ/CE/ISO
-
Product name:
-
25 hp marine diesel engine
-
Rated power:
-
25hp
-
Engine type:
-
water-cooled 4-stroke
-
Governor type:
-
mechanical
-
Cylinders No.:
-
4
-
Bore* stroke:
-
100*115mm
-
Displacement:
-
3.61L
-
Start method:
-
12V electric start
-
Intake method:
-
naturally aspirated
-
Interface size:
-
SAE 3# 11.5'
The features of 25 hp marine diesel engine
1: specially reinforced parts for marine engine use
2: big reserved power for daily use
3: 100% copper material air cooler , heat exchanger & oil cooler.
4: high quality air filter for marine use only
5: digital monitors with protection functions
Basic parameters for 25 hp marine diesel engine
|
Item |
ZH4100C |
ZH4100ZC |
|
Prime power / speed |
20kw/1500rpm |
30kw/1500rpm |
|
22kw/1800rpm |
32kw/1800rpm |
|
|
Overload capacity |
can overload 10% for 1 hour every 12 hours |
|
|
Cylinder quantity |
4 |
|
|
Bore*stroke(mm) |
100x115 |
100x115 |
|
Displacement |
3.61L |
3.61L |
|
Compression ratio |
1:19 |
1:19 |
|
Fire order |
1-3-4-2 |
|
|
Governor type |
Mechanical |
|
|
Intake type |
NA |
Turbocharged |
|
Idle speed |
600 ± 50 rpm |
|
|
Max. idle speed |
≤ 1575rpm or ≤ 1890rpm |
|
|
Electric Starter |
12V |
|
|
Cooling method |
Water-cooled by sea-water & fresh water heat exchanger |
|
|
Fuel consumption |
≤ 230g/kw.h |
|
|
Oil consumption |
≤ 1.63g/kw.h |
|
|
Oil replaced period |
250 working hours |
|
|
Type of filters |
dry type |
|
|
Interface size |
SAE3# flywheel shell, 11.5' flywheel ; single bearing or double bearing |
|
|
Packing size(mm) |
1200x830x1100 |
|
|
Net weight(kg) |
400 |
420 |
1) diesel engine (mechanical governor, low inertia injectors)
2) copper material heat exchanger, copper material oil cooler
3) air filter, fuel filters, oil filter, silencer.
4) 24V Starter with relay, 14V 750W copper wires alternator with AVR
5) smart monitors to display paramters and send alarm.
6) tool case with free parts, instruction manual, parts catalogue.
Optional parts for 25 hp marine diesel engine
engine parts quality upgrade kits
1) parts: Only choose reliable parts like P type injectors, Weifu fuel pump, quenched liners, mo-sprayed piston rings, famous brand starter & alterantor etc
2) advanced equipments : like smart bolts tightening machine, air passage test equipment, cylinder block digital machine center, seal test center etc.
3)
workmanship
: 100% assembled as per technical drawing & request
4)
test:
professional 8 hours test on 0 , 25% , 50% , 75% , 100% , 110% load before deliver
y.
The reliable quality & service make us win the customer's deep trust.
1) Are you manufacurer?
Yes, we invested the factory and manufacture diesel engines since 2007, welcome you come here to visit us !
2) How much power of diesel engines do you produce?
We produce diesel engines with power from 10kw to 330kw.
3) What are the usages for the diesel engines produced?
The diesel engines can use used for generator, firefighting, marine, water pump for irrigation etc.
4) Which countries do you ever exported to?
The diesel engines has even been exported to Russia, Egypt, Nigeria, Suriname, Turkey, Philippines, KSA etc.
5) What about the warranty?
We offer international warranty for 1 year or 1500 running hours.
Any broken parts within warranty period will get free ones by express.
6) What about the delivery time?
Usually about 7-30 days according order quantity.
7) Is the quality good?
Yes, they are with good design and durable parts, as long as they are well maintenanced as per request, they will give you surprises.
