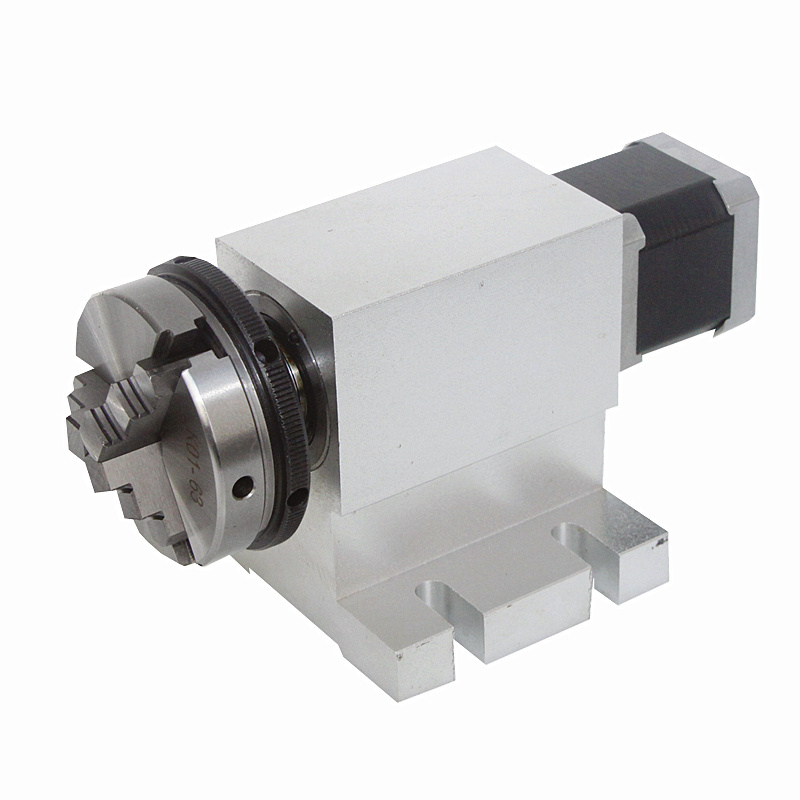

CNC harmonic drive reducer 3 jaw Chuck 50/65mm 4th axis rotary axis CNC dividing head 11-50-65 11-50-50 for Mini CNC router

CNC harmonic drive reducer 3 jaw Chuck 50/65mm 4th axis rotary axis CNC dividing head 11-50-65 11-50-50  for Mini CNC route r

Specifications:

Model Number: 11-50-65

Chuck: K01 65MM 3-jaw chuck
Center height: 65MM

Total height: 100MM
The output diameter of axle: 15MM

Angle: 0.036 degrees / step

Speed reducing ratio: 50:1
Stepper motor: two-phase stepper motor 42MM 1.6A
Size: 176MM*90MM*95MM

Weight: 3KG

Model Number: 11-50-50

Chuck: K01 50MM 3-jaw chuck
Center height: 65MM

Total height: 95MM
The output diameter of axle: 15MM

Angle: 0.036 degrees / step

Speed reducing ratio: 50:1
Stepper motor: two-phase stepper motor 42MM 1.6A
Size: 176MM*90MM*95MM

Weight: 3KG

Model Number: 11-50- drill chuck

Chuck: 2~10 drill chuck
Center height: 65MM

Total height: 95MM
The output diameter of axle: 15MM

Angle: 0.036 degrees / step

Speed reducing ratio: 50:1
Stepper motor: two-phase stepper motor 42MM 1.6A
Size: 176MM*90MM*95MM

Weight: 3KG

Model Number: 11-50-without chuck

Chuck: None
Center height: 65MM

Total height: 95MM
The output diameter of axle: 15MM

Angle: 0.036 degrees / step

Speed reducing ratio: 50:1
Stepper motor: two-phase stepper motor 42MM 1.6A
Size: 176MM*90MM*95MM

Weight: 2.5KG

Packaging:

Packaging material: Carton/Wooden case with foam inside.

Shipping:

A. 3-5 workdays shipping from China by Air/Express(DHL,FedEx,UPS,EMS etc.)

B. 3-5 workdays shipping from UK Warehouse to European union countries.No need to pay for customs duties and VAT.

C. 25-30 workdays shipping from China to Russian customers. No need to pay for customs duties and VAT.

D. We can arrange shipment by sea. Minium CBM requirement : 1 CBM

1.We provide you the friendly English User manual or operating videos for free.

2.24 hours technical support by email or calling.

3.Warranty: 1 year free , 2-3 years cost price and free technical support always.

4.Free training to make sure you master the operating of our products.

5. OEM/ODM accept . But the MOQ of OEM/ODM is 100 sets.
