Quick Details
-
Brand Name:
-
Efield/OEM available
-
Model Number:
-
EABR16-63
-
Heat Conductivity:
-
0.45w/mk
-
Specification:
-
1216-5163mm
-
Linear Expansion Coefficient:
-
0.025mm/m
-
Outer Diameter:
-
16-63mm
-
Thickness:
-
2.0-3.0mm
-
Standard:
-
CE, ISO , AENOR, SAI, WATERMARK
-
Color:
-
Yellow, Black as your requirement
-
Product name:
-

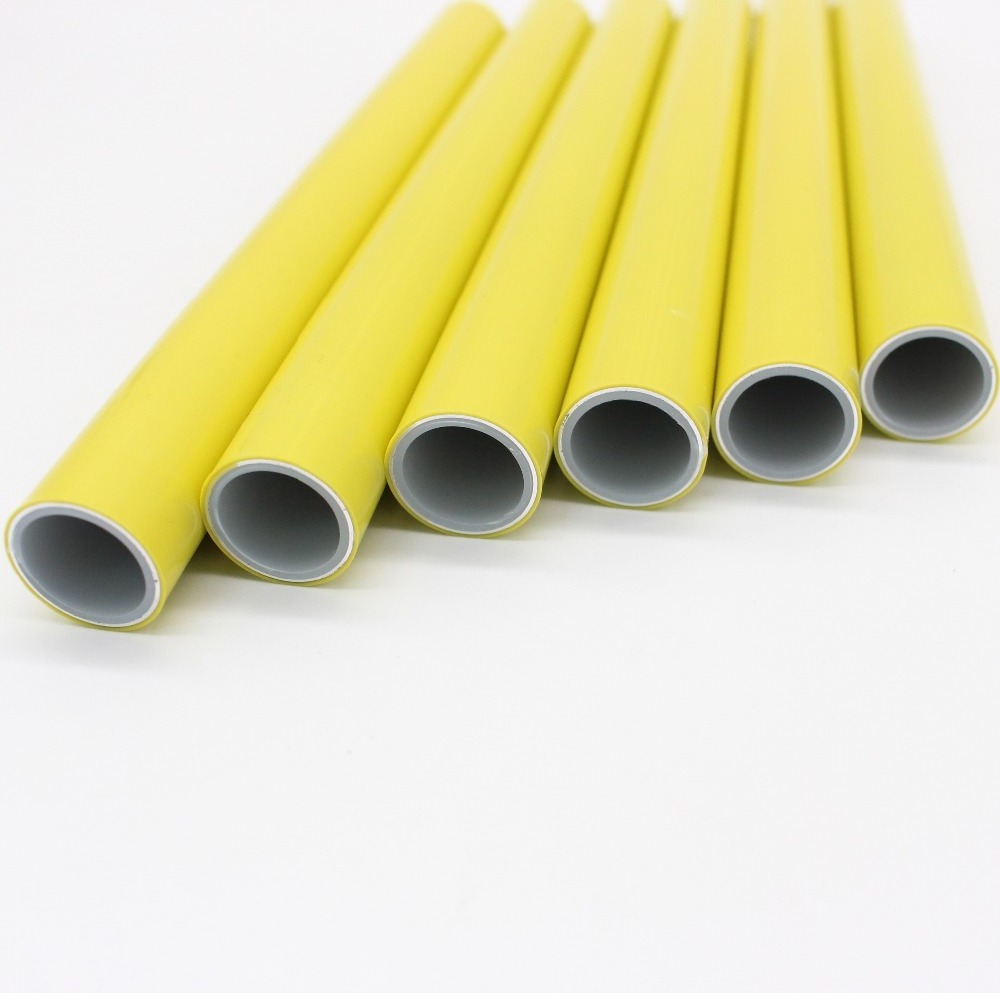

High Quality WaterMark Yellow Natural Gas Pipe, Pex Al Pex Gas Pipe
-
CERTIFICATION:
-
SAI, CE, AENOR, WATERMARK, ISO
-
Type:
-
Overlapped, Butt-welded
Quick Details
-
Material:
-
PEX + Aluminium
-
Length:
-
50M/100M/COIL, or as your required
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Efield/OEM available
-
Model Number:
-
EABR16-63
-
Heat Conductivity:
-
0.45w/mk
-
Specification:
-
1216-5163mm
-
Linear Expansion Coefficient:
-
0.025mm/m
-
Outer Diameter:
-
16-63mm
-
Thickness:
-
2.0-3.0mm
-
Standard:
-
CE, ISO , AENOR, SAI, WATERMARK
-
Color:
-
Yellow, Black as your requirement
-
Product name:
-
High Quality WaterMark Yellow Natural Gas Pipe, Pex Al Pex Gas Pipe
-
CERTIFICATION:
-
SAI, CE, AENOR, WATERMARK, ISO
-
Type:
-
Overlapped, Butt-welded
1. EFIELD Natural Gas System consists of multilayer pipes(PEX/AL/PEX), brass fittings, valves etc.
2. EFIELD has passed SAI Global and CE certification. Multilayer pipes have been used widely to gas installation in residential and commercial builidings based on stringent technical standards for gas distribution.
3. The middle aluminum layer assures no gas permeability. In outdoors installations, the multilayer pipes'resistance to rupture and other technical properties permit the use of innovative techniques such as " no sand and no dig" installations.
DIMENSIONS OF PEX-AL-PEX PIPE , PLASTIC ALUMINIUM PIPE ( for NATURAL GAS):
| Dimensions of PEX/AL/PEX Pipe (mm) | |||||
| Norminal Diameter | 16 | 20 | 25 | 26 | 32 |
| Mean External Diameter | 16 (0,+0.2) | 20(0,+0.2) | 25(0,+0.25) | 26(0,+0.3) | 32(0,+0.3) |
| Total Wall Thickness | 2.0 (0,+0.2) | 2.0 (0,+0.2) | 2.5(0,+0.25) | 3.0(0,+0.25) | 3.0(0,+0.25) |
| Mean Internal Diameter | 12(-0.2,+0.2) | 16(-0.2,+0.2) | 20(-0.2,+0.2) | 20(-0.2,+0.2) | 26(-0.2,+0.2) |
| Color | Yellow, Black with three strip, White or as required | ||||
TECHNICAL PARAMETERS OF GAS PIPE:
| PEX/AL/PEX technical parameters | |
| Working Temperature | ≤95℃ |
| Working Pressure | 1.25Mpa |
| Coefficient of Conductivity | 0.45W/M*K1 |
| Hand Bending Radius | ≥ 5D |
| Delamination Resistance | ≥50N/cm |
| Burst Pressure | ≥6-8Mpa |
| Gas(Oxygen) diffusion rate | 0 mg/1*d |
| Declaration of the cross link degree | ≥65. Silane crosslinking method. |
1, Non-toxic, corrosion resistance,light weight, good mechanical strength and heat-resisting performance, embrittlement of low temperature and long service life.
2, Fluid resistance inside pipe is small, not easy scaling, fluid not being polluted, and effective large diameter.
3, 100% insulating oxygen,stop oxygen's penetration. Aluminum-plastic pipes can be used as shielding of communications lines, and prevent various audio, magnetic interference; Because of their good antistatic performance, they are also suitable for conveying gas and fuel. Pipes can be bent freely and made straight back
EFIELD has four production lines to produce all plastic pipe, including PEX pipe, PERT pipe, EVOH-PEX/PERT pipe, ANTI UV PEX pipe.
EFIELD has six proudction lines to produce multilayer composite pipe, including PEX/AL/PEX pipe, PERT/AL/PERT pipe, PE/AL/PE pipe with over-lapped and butt-welded technology.
So EFIELD can guarantee products' quantity.
EFIELD has their own lab to make pipe testing, including Appearance, Dimension, Cross-linked degree, Pull-out Test, Delamination Resistance. Adherence and Cracking by Expansion, Hydraulic Strength, Bursting Test, Heating Behavior. EFIELD can also provide testing report for each order of each customer.
So EFIELD can guarantee products' quality.
EFIELD PIPE TESTING LAB
WE HAVE PASSED CE, AENOR, WATERMARK, SAI CERTIFICATION.
