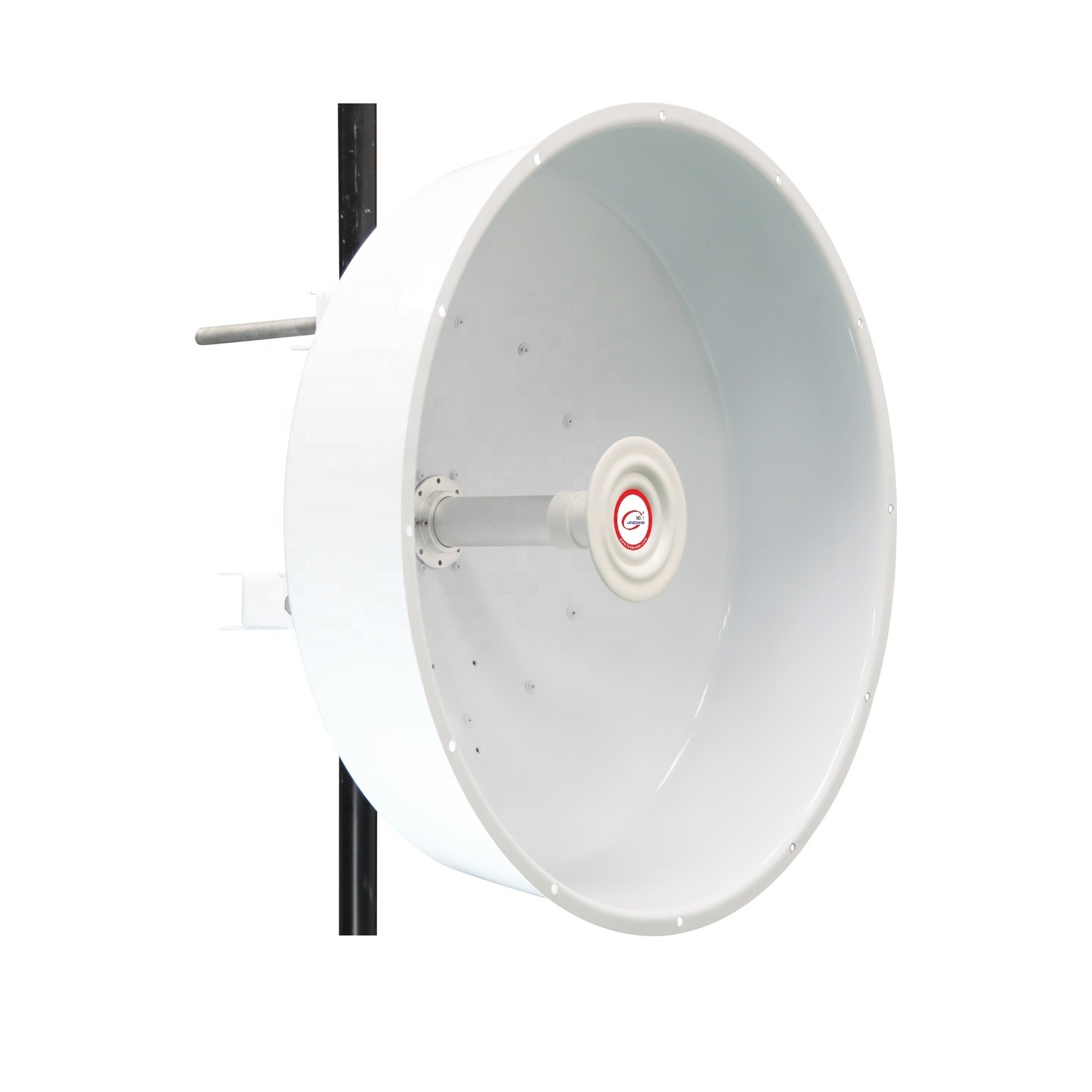

6GHz High Performance Parabolic mimo Dish Antenna rocketdish antenna for Ubiquiti Airfiber 5 mimosa b5c Radiowaves airFiber

6GHz High Performance Parabolic mimo Dish Antenna rocketdish antenna for Ubiquiti Airfiber 5 mimosa b5c Radiowaves airFiber

FOB Reference Price: Get Latest Price

≥2 Pieces

US $189

≥10 Pieces

US $179

≥100 Pieces

US $169

≥1000 Pieces

US $159

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Place of Origin:: Guangdong, China

Model:: ANT4965D30PB2-DP

Frequency Range-MHz:: 4.9-6.5GHz

Gain:: 30dBi

VSWR:: <2.0

Polarization:: Dual Slant (V/H or ±45°)

Isolation:: >30dB

Front to Back Ratio:: >35dB

Horizontal Beam width:: 5°

Vertical Beam width:: 5°

Antenna Size:: 0.6m

Quick Details

Type:: 2.4GHz & 5GHz Antenna

Brand Name:: LANBOWAN

Model Number:: ANT4965D30PB2-DP

Place of Origin:: Guangdong, China

Model:: ANT4965D30PB2-DP

Frequency Range-MHz:: 4.9-6.5GHz

Gain:: 30dBi

VSWR:: <2.0

Polarization:: Dual Slant (V/H or ±45°)

Isolation:: >30dB

Front to Back Ratio:: >35dB

Horizontal Beam width:: 5°

Vertical Beam width:: 5°

Antenna Size:: 0.6m

Product Description

Features

* 4.9-6.5GHz Frequency
* 30dBi High Gain
* MIMO
* Dual Slant
* 2 feet Dish

Application

* 4.9/5.1/5.3/5.4/5.8/6.4 GHz ISM and UNII Band
* MIMO and 802.11n Applications
* 802.11AX Applications
* Long Distance Backhaul and Point to Point Data Links

Product Paramenters

Electrical
Model	ANT4965D30PB2-DP
Frequency Range	4.9-5.1GHz	5.1-5.9GHz	5.9-6.5GHz
Gain( dBi)	29dBi	30dBi	31dBi
VSWR	<2.5	<2.0	<2.0
Polarization	Dual Slant (V/H or ±45°)
Isolation	>30dB
Front to Back Ratio	>35dB
Horizontal Beam width	5°
Vertical Beam width	5°
Maximum Power Per Port	50W
Impedance	50Ω
Lighting protection	DC Ground
Mechanical
Connector	2 * N Female
Antenna Size	φ0.6 m
Antenna Weight	10kg
Antenna color	white
Dish material	aluminum
Diameter of the Pole	Φ30 to φ80 mm
Operational Temperature	-40°C to +70°C (-32°F to +158°F)

Antenna Patterns
