Quick Details
-
Rated Voltage:
-
5.5KV
-
Tensile Strength:
-
175ppm/K
-
Working temperature:
-
-50~200℃
-
Color:
-
Pink, blue, custom
-
Sample:
-
Free Samples(No mail)
-
Usage:
-
Mechanical Protection
-
Features:
-
Low Viscosity, good leveling, seismic, good fire resistance
-
Thermal conductivity:
-
3.0~6.0W/m.k or customize
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
KUAYUE, KUAYUE
-
Model Number:
-
HCG
-
Rated Voltage:
-
5.5KV
-
Tensile Strength:
-
175ppm/K
-
Working temperature:
-
-50~200℃
-
Color:
-
Pink, blue, custom
-
Sample:
-
Free Samples(No mail)
-
Usage:
-
Mechanical Protection
-
Features:
-
Low Viscosity, good leveling, seismic, good fire resistance
-
Thermal conductivity:
-
3.0~6.0W/m.k or customize
Products Description

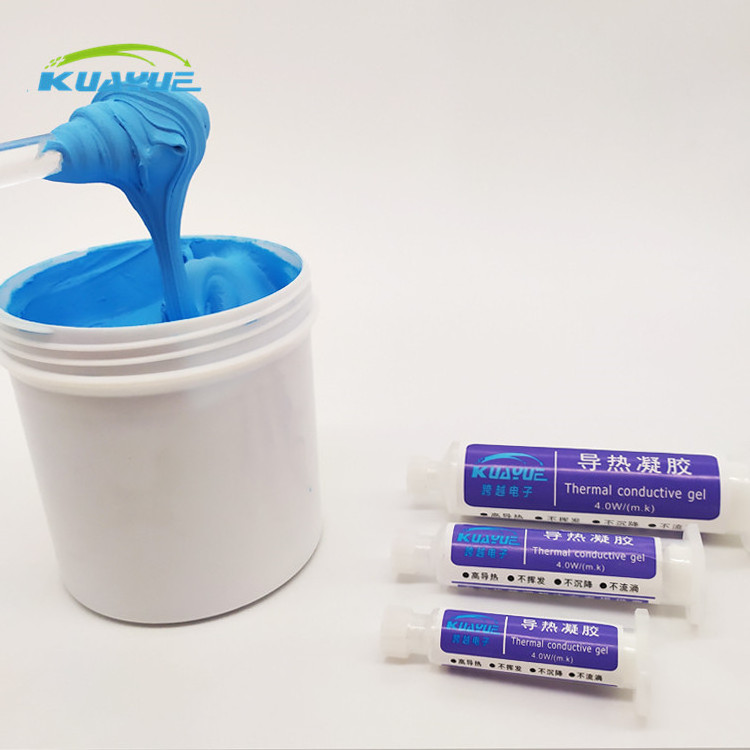

Thermal gel is a kind of heat dissipation material that can fill the space of the equipment and conduct heat. It can improve the heat transfer efficiency and temperature stability of the equipment, protect the equipment from overheating or low temperature damage, and extend the service life of the equipment.
|
Product performance
|
Test Results
|
Test Methods
|
|
Colour
|
Pink
|
Visual
|
|
Extrusion speed
|
--
|
--
|
|
(30ccEFDcartridges1”
|
15g/min
|
--
|
|
orifice 90psi)
|
--
|
--
|
|
Specific gravity
|
3.2g/cm3
|
Helium true density method
|
|
Viscosity（mPa.s）
|
550000
|
ASTM D2196
|
|
Volume resistance
|
>1013Ωcm
|
ASTM D257
|
|
Thermal Conductivity
|
5.0W/mK
|
ASTM D5470
|
|
Dielectric breakdown strength
|
>200 VAC/mil
|
ASTM D149
|
|
Dielectric constant
|
5.50
|
ASTM D150
|
|
Minimum interface thickness
|
0.09mm
|
--
|
|
Operating temperature
|
-50~200℃
|
--
|
|
Storage time
|
12month
|
--
|
|
Siloxane volatilization(D3~D12)
|
＜300PPM
|
GB/T 27843-2011
|
|
Flame retardancy
|
V-0
|
UL 94
|
|
RoHS(10)
|
PASS
|
IEC 62321
|
|
Halogen(4)
|
PASS
|
EN14582
|
|
REACH（191）
|
PASS
|
EN14372
|
Customization Ability
Different mechanical properties can be customized
•Hardness SHORE 00 5~90
Different thermal conductivity can be customized
•Thermal pad：1.0~10.0w/mk
Various colors and shapes can be customized
•
Custom color
Precise thermal conductivity data
1000 hours high temperature and humidity test
High voltage test
Details Images
Application Scenario
CPU and GPU :
Thermal gel can be used between the heat sink and the CPU or GPU to improve heat transfer efficiency, thereby maintaining the temperature stability of the device and preventing overheating damage.
LED lamp:
In high power LED lamps, thermal gel is used to increase the efficiency of heat transfer between the LED and the radiator, reducing the temperature of the LED lamp and extending its service life.
Automotive electronic equipment:
The high temperature environment of automotive electronic equipment requires reliable thermal gel to maintain the temperature stability of the equipment and improve the performance.
Medical equipment:
Some medical devices require temperature stability, and heat-conducting gels can be used to conduct the temperature of thermometers and other medical devices.
Battery:
In batteries and battery management systems, heat-conducting gels can be used to dissipate heat and maintain battery temperature stability.
Solar panels:
In solar panels, heat-conducting gels can be used to conduct heat and maintain the temperature stability of the panels, thereby increasing efficiency and longevity.
