Quick Details
-
Place of Origin:
-
Zhejiang
-
Brand Name:
-
Novery
-
Model Number:
-
WY-AC
-
Voltage:
-
220V/380V
-
Dimension(L*W*H):
-
9600*2000*2100mm
-
Weight:
-
1300 KG
-
Marketing Type:
-
Hot Product 2024
-
Automatic:
-
Full-automatic
-
Speed:
-
20-120pcs/min
-
PLC:
-
1 Set
-
Color:
-
Customer Requirement
Quick Details
-
Machine Type:
-
Bag Forming Machine
-
Bag Type:
-
T-shirt Bag
-
Material:
-
Non Woven Bag
-
Place of Origin:
-
Zhejiang
-
Brand Name:
-
Novery
-
Model Number:
-
WY-AC
-
Voltage:
-
220V/380V
-
Dimension(L*W*H):
-
9600*2000*2100mm
-
Weight:
-
1300 KG
-
Marketing Type:
-
Hot Product 2024
-
Automatic:
-
Full-automatic
-
Speed:
-
20-120pcs/min
-
PLC:
-
1 Set
-
Color:
-
Customer Requirement

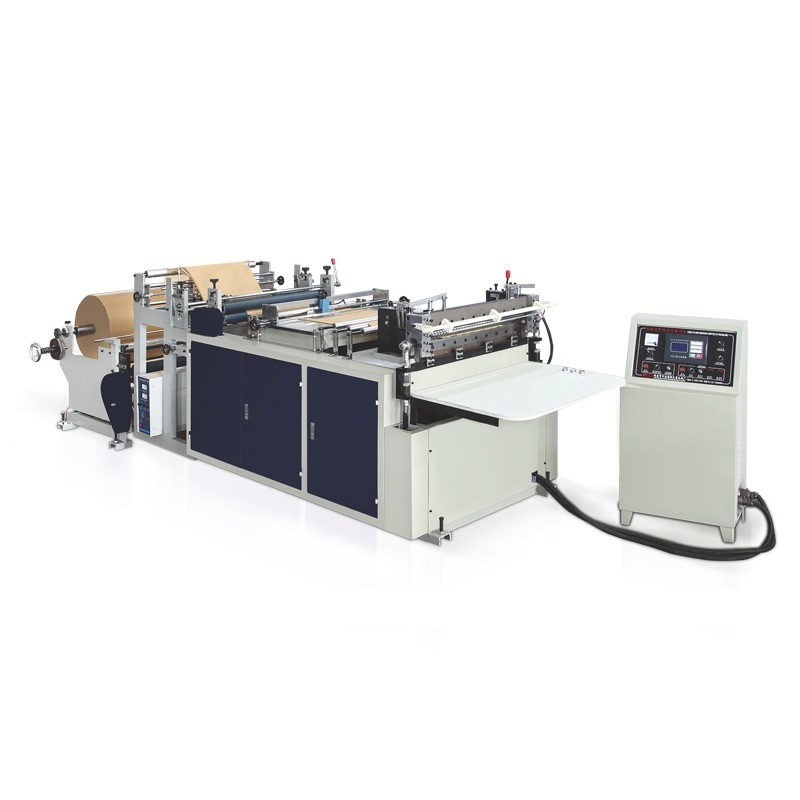

Machine Structure and detail display
Description:
1.It has full-automatic computer control.
2. The stable photoelectric tracking can fix position and stop automatically.
3. The max width of the bag can be 600mm, the length is adjustable.
4. It has automatic accounting and automatic alarm.
5.It can seal handle automatically while making bag.
Feature:
1.The machine which is used for the raw materials of non-woven fabrics.
2.It can be operated with different specifications and can make different shape of three-dimensional bag ,non-woven bag, flat bag, hand bag, vest bag, and the rope bag according to your selection.
3.It collects photo and electricity and use LCD touch screen operation with steps of progress length setting. It has photoelectric tracking, computer automatic positioning and computer automatic recticifing system.
4.It can use such industail control device as automatic punching to make its products steadily and beautifully.
5.Using this machine you can rest assure of environmental protection for high quality bag making equipment.
Machine Feeding part
use Inverter to control, so feeding part run more stable, less noise, more speed.
In the feeding part, use
2 rotary Die of Ultrasonic of size 100mm
, in this way, first the material feeding will be more smooth. Second it will have less noise. Third the horn will not easily worn out. Fourth, the cost of ultrasonic is much more. In the
vest bag folding parts, also use this rotary die, in this way, the waste edge can be less than 0.8mm, But normal ultrasonic will waste 1-2mm edge.
The sealing die
in the vest bag sealing shall be like
above
There is 2
panel box
,
one is main machine panel box, one is Handle Loop machine panel box, use
Taiwan
Touch Screen
In the material feeding parts, there is one
Edge correction device
to track material edge, so feeding is more accurate.
This is
Material end sensor
, when material end, machine will stop. The raw material feeding will use pneumatic auto loading.
There is 4 set of Ultrasonic at size of 30mm*30mm in the
handle loop machine parts
, and 1 set of ultrasonic for handle design at size 50mm.
In this parts, It can make different size of bottom, max can be 100mm*2, in the
T shirt bag sealing part
,
We use one ultrasonic at 50mm round size
This is
the big Sealing blade
, which is controlled by 3 set of ultrasonic.Each ultrasonic is 200mm size.Or some custmer like to use 4 set of 153mm ultrasonic is also ok.
Product Paramenters
|
Machine model
|
Standard Parts
|
|
Main motor
|
Shanghai Libiao
|
|
Inverter
|
Best China
|
|
PLC
|
Factory special designed Nishan
|
|
Touch Screen
|
Taiwan Weinview
|
|
Ultrasonic
|
Mingji
|
|
Air Cylinder
|
Airtac Taiwan
|
|
Bearing
|
Japan
|
|
Main Photoelectric eye
|
Leuze Germany
|
|
Small Photoelectric eye
|
China brand
|
|
Breaker and button
|
Schneider
|
|
Contactor
|
Schneider
|
|
Relay
|
Schneider
|
|
Drive
|
Schneider
|
Product Application
Nonwoven Flat Bag with Handle
Nonwoven D-cut Bag
Nonwoven U cut, vest bags (need punch machine to punch)
Shoe Bags
Shoe Bags
Corner cut box bag with handle
