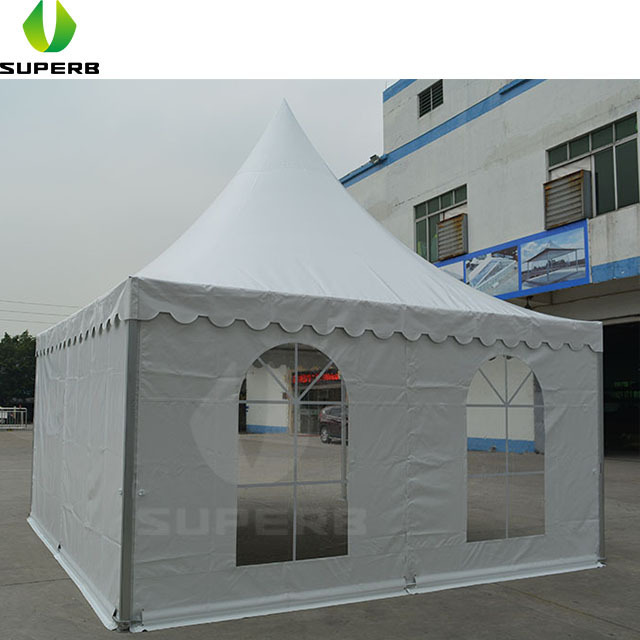

6x6 Aluminum high peak canopy Pagoda Marquee tent for exhibition event

6x6 Aluminum high peak canopy Pagoda Marquee tent for exhibition event

FOB Reference Price: Get Latest Price

≥20 Square meters

US $55

≥100 Square meters

US $40

≥500 Square meters

US $30

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Fabric::: PVC coated polyester

Pole Material::: Aluminum alloy

Color::: R.G.B.W.Y.Transparent.etc

Certificate::: TUV.SGS.BV

Association::: IFAI.ARA.

Function::: Party/Wedding/Banquet/Ceremony, etc.

Fixing Solution::: Expandable Bolt,Weight Plate, etc.

Featuring::: Waterproof, Fireproof, UV-resistant

Roof cover::: PVC coated fabric, Blockout.850g/sqm

Warranty::: Frame =8years,PVC=5years

Quick Details

Brand Name:: SUPERB

Place of Origin:: Guangdong, China

Model Number:: PA6/2.5-5

Fabric::: PVC coated polyester

Pole Material::: Aluminum alloy

Color::: R.G.B.W.Y.Transparent.etc

Certificate::: TUV.SGS.BV

Association::: IFAI.ARA.

Function::: Party/Wedding/Banquet/Ceremony, etc.

Fixing Solution::: Expandable Bolt,Weight Plate, etc.

Featuring::: Waterproof, Fireproof, UV-resistant

Roof cover::: PVC coated fabric, Blockout.850g/sqm

Warranty::: Frame =8years,PVC=5years

6x6 Aluminum high peak canopy Pagoda Marquee tent for exhibition event

Product Description

1)Application: The 6 x 6 Aluminum high peak canopy Pagoda Marquee tent for exhibition event (PA series , A frame) can be widely used as the wedding tent, party tent, exhibition tent, conference tent, different kinds of festivals tent, hajj tent, corporate events tent, sports tent, & temporary, semi-permanent or permanent building purpose etc;

2)Materials: Fabric is made of double PVC coated polyester fabric, 650-900g/m2 , water proof, UV resistance, anti-mildew, self-cleaning, fire retardant according to standard NFPA701 & DIN4102 B1/M2 ;

3)Frame: is made of h ard pressed extruded aluminum 6061/T6, anodized surface finishing. The main frame profile size is 65*65*2.5 mm ;

4)Connections: Hot-dip galvanized steel;

5)Life span: 8-10years for fabric(cover & sidewalls) , 20-30years for aluminum frame;

6)Structure safety parameters: wind load is 100km/h (0.5kn/M2) , snow load is 25kg/sq.m;

7)Color available: White, red, yellow, blue, green, black, grey, transparent etc;

8)Optional Accessories: Ground anchor, anchor puller, weight plate, glass door, fire door, glass wall, ABS hard wall, Sandwich walls, auto-rolling door, decoration lining, flooring system, clear PVC windows sidewalls, transport rack for the glass door & walls, ramp etc; chairs , tables, & other furniture for the parties are also provided for your option.

Specification for the 6 x 6 Aluminum high peak canopy Pagoda Marquee tent for exhibition event (PA series,), pls refer to chart:

Type	Span (m)	Side height (m)	Peak height (m)	Bay Distance (m)	Longest Component (m)	Wind Load (km/h)
PA3/2.5-3	3	2.5	4.2	3	3	80
PA4/2.5-4	4	2.5	4.8	4	4	80
PA5/2.5-5	5	2.5	5.2	5	5	80
PA6/2.5-6	6	2.5	5.8	6	6	80
PAG8/2.6-4	8	2.6	5.4	4	4	80
PAG10/2.6-5	10	2.6	6.4	5		80
Main frame Profile		65X65X2.5mm(3-channel,for 3-6m)/122x68x3mm(4-channel,for 8-10m))
Eave Connection		Hot-dip Galvanized Steel Insert
Frame Material		Hard Pressed Extruded Aluminum 6061/T6
Cover Material		Double PVC coated Polyester textile, flame retardant to DIN4102 B1,M2,750-900g/sq.m
