Quick Details
-
Dimension(L*W*H):
-
6250 x 2100 x 3050 mm
-
Power:
-
102kw
-
Engine Capacity:
-
4156ml
-
Vehicle name:
-
concrete mixer truck
-
Concrete drum volume:
-
2-16m3
-
Drive type:
-
4X2 4x4 6X4 6x6 8x4
-
Steering wheel:
-
both left and right hand drive
-
Chassis brand:
-
DONGFENG,FOTON,HOWO,T-KING,etc
-
Concrete mixer tank material:
-
alloy steel
-
Color of concrete mixer drum:
-
according to customer demands
-
Delivery time:
-
25 days for new concrete mixer truck
-
Certification:
-
ISO certificate,CCC certificate
Quick Details
-
Place of Origin:
-
Hubei, China
-
Brand Name:
-
CLW
-
Weight:
-
9995 kg
-
Dimension(L*W*H):
-
6250 x 2100 x 3050 mm
-
Power:
-
102kw
-
Engine Capacity:
-
4156ml
-
Vehicle name:
-
concrete mixer truck
-
Concrete drum volume:
-
2-16m3
-
Drive type:
-
4X2 4x4 6X4 6x6 8x4
-
Steering wheel:
-
both left and right hand drive
-
Chassis brand:
-
DONGFENG,FOTON,HOWO,T-KING,etc
-
Concrete mixer tank material:
-
alloy steel
-
Color of concrete mixer drum:
-
according to customer demands
-
Delivery time:
-
25 days for new concrete mixer truck
-
Certification:
-
ISO certificate,CCC certificate
We are professional manufacturer of special trucks,supply different kinds of trucks,concrete mixer truck is the basic special truck model,can be customized as customer requirements.
(1). Capacity: option 2-16m3 concrete tank truck.
(2). Steering wheel: both left and right hand drive,meet the needs of different countries.
(3). Emission standard: option Euro 1,Euro 2,Euro 3,Euro 4,Euro 5 concrete mixer truck
(4). Truck chassis : option DONGFENG,FOTON FORLAND,HOWO,T-KING,etc
Concrete mixer truck is also called concrete tank truck,truck concrete mixer,cement mixer truck,concrete mixing truck,concrete mixer machine truck,mixer truck,concrete truck, etc.
Customize concrete mixer truck,
please contact WeChat and WhatsApp number : 0086-15927378796.

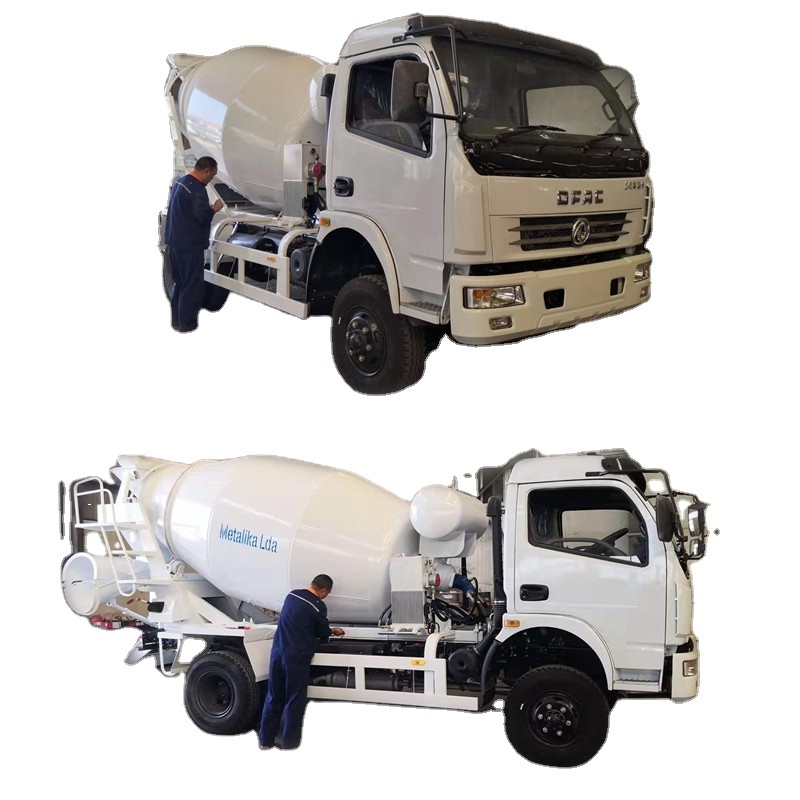

4X4 right hand drive small concrete mixer truck for sale.
Pictures
Technical specification:
|
Complete Vehicle P arameter |
|
|
ITEM |
PARAMETER |
|
Vehicle |
DONGFENG concrete mixer truck |
|
Mixer tank (m3) |
4 |
|
Overall dimension (mm) |
6250 × 2100 × 3050 |
|
Gross Vehicle Weight (kg) |
Appro × 9995 |
|
Net weight (kg) |
Appro × 5800 |
|
Loading (kg) |
Appro × 4000 |
|
Wheel base (mm) |
3300 |
|
Max speed (km/h) |
80 |
|
Chassis parameter |
|
|
Cabin |
Flat top cabin, power steering,air conditioner,right hand drive,3 passengers |
|
Drive form |
4 × 4 |
|
Engine |
Engine brand : YUCHAI Engine model : YCD4D32-139 Engine power : 139hp Fuel type: diesel Displacement : 4156ml Emission standard : Euro 3 |
|
Transmission |
5 forward,1 reverse, manual operated |
|
Tire |
8.25 R16 |
|
No.of tires |
6+1pcs |
|
Other configuration |
Full power PTO |
|
C oncrete mixer parameter |
|
|
Concrete mixer tank |
Volume : 4m3 |
|
Material : Q345 alloy manganese steel |
|
|
Thickness : body 5mm, shell cover 6mm |
|
|
Performance |
Charging speed ≥2.8m3/min |
|
Discharging speed ≥1.2m3/min |
|
|
Surplus ratio ≤0.5% |
|
|
Mixing drum speed 0≈12rpm |
|
|
Driving system |
Reducer : China brand |
|
Hydraulic pump : Italy brand |
|
|
Hydraulic motor : Italy brand |
|
|
Radiator : China brand |
|
|
Water supply system |
Water tank volume 300L |
|
Supply water method : air pressure water supply |
|
|
Operation system |
Connecting rod operation |
