Quick Details
-
Model Number:
-
HSG
-
Brand Name:
-
HCIC(OEM available)
-
Bore diameter:
-
40-250mm
-
Working pressure:
-
16Mpa
Quick Details
-
Maximum Stroke:
-
4000mm
-
Shaft Diameter:
-
22-140mm
-
Place of Origin:
-
Shandong, China
-
Model Number:
-
HSG
-
Brand Name:
-
HCIC(OEM available)
-
Bore diameter:
-
40-250mm
-
Working pressure:
-
16Mpa
HSG series telescopic hydraulic cylinder
Specifications:
|
Model |
Working Pressure |
Bore Diameter (mm) |
Piston Rod Diameter (mm) |
Stroke Length (mm) |
Minimum Stroke (mm) |
|
HSGL-40/dE |
16 Mpa |
40 |
22 |
1000 |
Unlimited |
|
HSGL-50/dE |
50 |
28 |
1000 |
|
|
|
HSGL-63/dE |
63 |
35 |
2000 |
|
|
|
HSGL-80/dE |
80 |
45 |
2000 |
|
|
|
HSGL-80/dE |
80 |
45 |
3000 |
30 |
|
|
HSGL-90/dE |
90 |
50 |
3000 |
40 |
|
|
HSGL-100/dE |
100 |
55 |
3000 |
40 |
|
|
HSGL-110/dE |
110 |
63 |
3000 |
40 |
|
|
HSGL-125/dE |
125 |
70 |
3000 |
35 |
|
|
HSGL-140/dE |
140 |
80 |
3000 |
45 |
|
|
HSGL-150/dE |
150 |
85 |
3000 |
50 |
|
|
HSGL-160/dE |
160 |
90 |
3000 |
40 |
|
|
HSGL-180/dE |
180 |
10 |
3000 |
45 |
|
|
HSGL-200/dE |
200 |
110 |
4000 |
45 |
|
|
HSGL-220/dE |
220 |
125 |
4000 |
50 |
|
|
HSGL-250/dE |
250 |
140 |
4000 |
55 |
*If you have customization request please contact us.

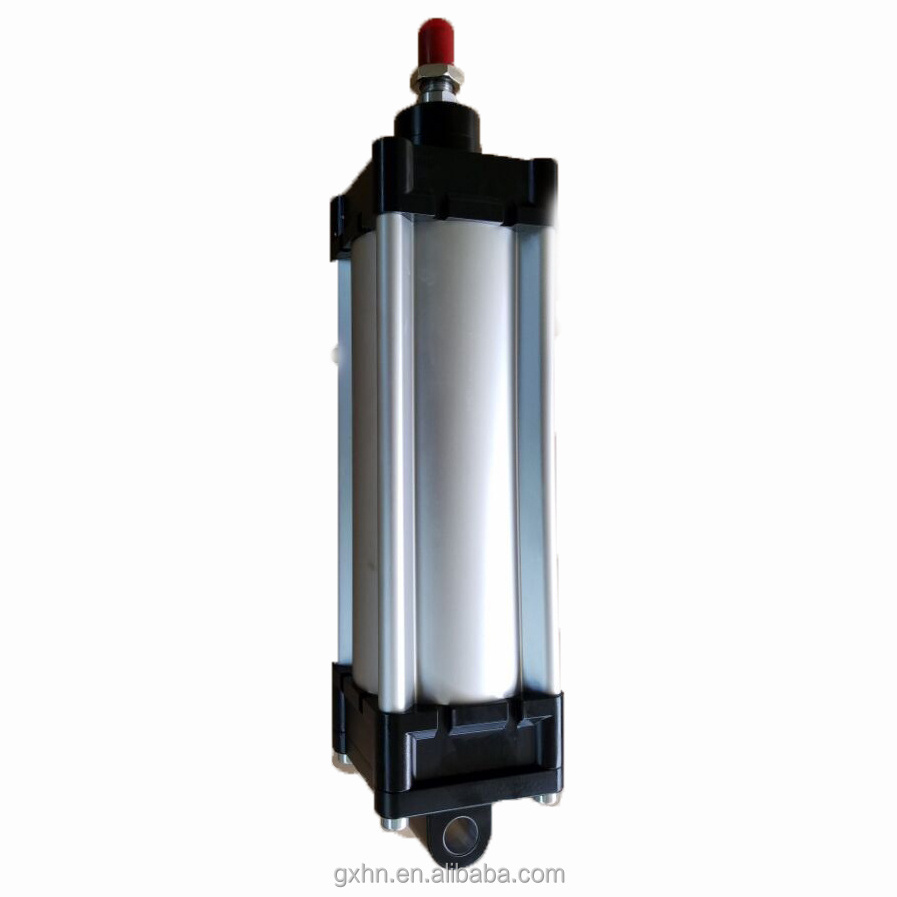

Photos:
Warranty: One year; full life technical support
