Quick Details
-
spool type insulator:
-
11kv pin insulators
-
electric insulator:
-
glass insulators
-
post insulator:
-
pin insulators
-
insulators:
-
composite insulators
-
high voltage insulator:
-
post insulators
-
insulator:
-
insulation material
-
porcelain electric insulator:
-
all types porcelain insulators
Quick Details
-
Place of Origin:
-
Fujian, China
-
porcelain insulator:
-
porcelain post line insulator ANSI TR-210 for 20kV
-
electric fence insulator:
-
insulation pin
-
spool type insulator:
-
11kv pin insulators
-
electric insulator:
-
glass insulators
-
post insulator:
-
pin insulators
-
insulators:
-
composite insulators
-
high voltage insulator:
-
post insulators
-
insulator:
-
insulation material
-
porcelain electric insulator:
-
all types porcelain insulators
porcelain post line insulator ANSI TR-210 for 20kV
Our company is an enterprise engaged in exporting all kinds of insulators, such as suspension insulator/spool insulator/ shackle insulator/ stay insulator/ pin insulator/line post insulator /wiring insulator etc., we specialized in this field for more than 20 years in China. With high quality, competitive price and timely delivery, we hope that we can establish long-term friendly cooperative relations with all of you.

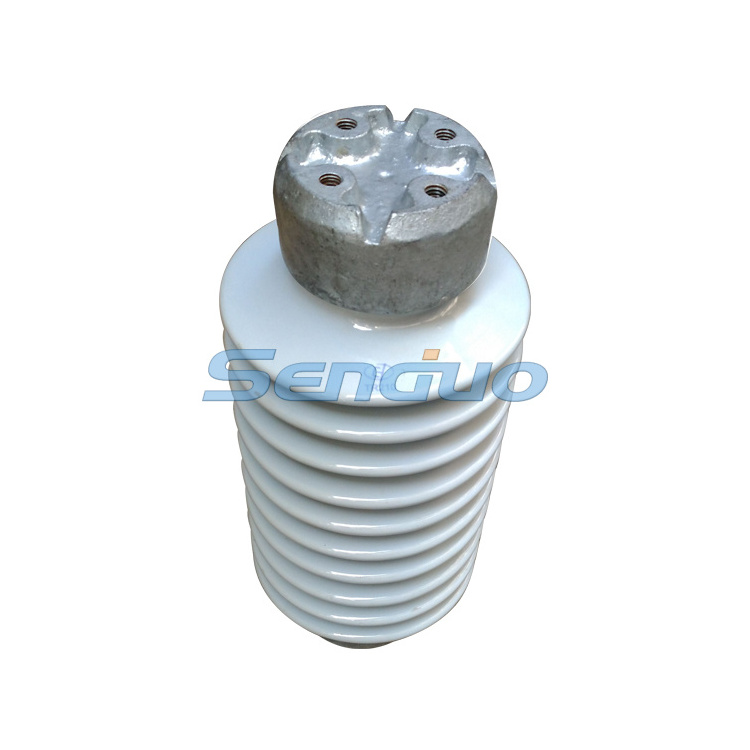

porcelain post line insulator ANSI TR-210 for 20kV
| Class ANSI | TR205 | TR208 | TR210 | TR-214 | TR216 | |
| Creepage distance (mm) | 394 | 610 | 940 | 1092 | 1892 | |
| Cantilever strength (KN) | 8.9 | 8.9 | 8.9 | 8.9 | 6.7 | |
| Low frequency flashover voltage | Dry flashover (KV) | 85 | 110 | 145 | 170 | 235 |
| Wet flashover (KV) | 55 | 75 | 100 | 120 | 180 | |
| Critical impulse flashover voltage | Positive (KV) | 125 | 170 | 225 | 280 | 390 |
| Negative (KV) | 200 | 250 | 290 | 340 | 475 | |
| Impulse withstand voltage | 110 | 150 | 200 | 250 | 350 | |
porcelain post line insulator ANSI TR-210 for 20kV
porcelain post line insulator ANSI TR-210 for 20kV
porcelain post line insulator ANSI TR-210 for 20kV
A. Professional Manufacturer of insulators above 20 years experience
B. Certificates: ANSI, IEC, BS, DIN, XIHARI,AS, SA
C. A wide range of low and high voltage insulators
suspension insulator
spool insulator
shackle insulator
stay insulator
pin insulator
line post insulator
wiring insulator
D. Factory Direct Price
E. Certificate for Insulators
porcelain post line insulator ANSI TR-210 for 20kV
porcelain post line insulator ANSI TR-210 for 20kV
1.Payment : Irrevocable L/C at sight or TT 30% deposit in advance and the balance against copy of B/L
2.Delivery time and methord: Usually within 30 days after receving L/C at sight or TT 30% deposit of the total value by sea
porcelain post line insulator ANSI TR-210 for 20kV
1. Port of loading: FUZHOU,CHINA
2. MOQ: 200PCS
3. Package: Standard export packing or as customers' requirements
4. OEM/ODM can be acceptable by us. The operation mode is sending the sample to us and we will open a mould and make it as your sample.
5. Product name: porcelain insulator
6. Certificate : ANSI, XIHARI, IEC, SA, AS
7. Size: according to the different model and customers' choices
8. Enough ability to meet buyers fresh designed items
If you have any question please don't hesitate to contact us, we will try our best to meet your requirement.
|
