Quick Details
-
Brand Name:
-
OEM
-
Weight (KG):
-
0.5 KG
-
Product name:
-
Mini Laser Module
-
Wavelength:
-
450nm~850nm
-
Output power:
-
≤5mW
-
CDRH Class:
-
I,II,IIIa
-
Aperture:
-
1.0mm~3.0mm
-
Divergence:
-
0.60mrad~3.0mrad
-
Laser Drive Modes:
-
CW,Analog Modulation,Digital Modulation
-
Lens:
-
Optical Glass Lens
-
Input Voltage:
-
3.0~5.0V
-
Operating Temperature:
-
-10℃~50℃
Quick Details
-
Place of Origin:
-
Shaanxi, China
-
Spare Parts Type:
-
mini laser module
-
Marketing Type:
-
Hot Product 2024
-
Brand Name:
-
OEM
-
Weight (KG):
-
0.5 KG
-
Product name:
-
Mini Laser Module
-
Wavelength:
-
450nm~850nm
-
Output power:
-
≤5mW
-
CDRH Class:
-
I,II,IIIa
-
Aperture:
-
1.0mm~3.0mm
-
Divergence:
-
0.60mrad~3.0mrad
-
Laser Drive Modes:
-
CW,Analog Modulation,Digital Modulation
-
Lens:
-
Optical Glass Lens
-
Input Voltage:
-
3.0~5.0V
-
Operating Temperature:
-
-10℃~50℃
Product Information
|
Product Specification
|
|
|
|
|
||||
|
Wavelength
|
450nm, 520nm, 635nm, 650nm, 780nm, 850nm
|
|
|
|
||||
|
Output Power
|
≤ 5mW
|
|
|
|
||||
|
CDRH Class
|
I, II, IIIa
|
|
|
|
||||
|
Material
|
Brass
|
|
|
|
||||
|
Aperture
|
Ø1.0mm, Ø1.5mm, Ø2.0mm, Ø2.4mm, Ø3.0mm
|
|
|
|
||||
|
Divergence
|
0.6mrad, 0.8mrad, 1.0mrad, 1.5mrad, 2.0mrad, 3.0mrad
|
|
|
|
||||
|
Laser Drive Modes
|
CW, Analog Modulation, Digital Modulation
|
|
|
|
||||
|
Lens
|
Optical Glass Lens
|
|
|
|
||||
|
Dimension
|
Ø3.3x8.0mm, Ø3.8x8.5mm, Ø4.0x6.0mm,
Ø4.0x8.5mm, Ø4.0x10mm, Ø6.0x12mm(Custom)
|
|
|
|
||||
|
Operating Current
|
<120mA, 35mA, 25mA
|
|
|
|
||||
|
Input Voltage
|
3.0 to 5.0V
|
|
|
|
||||
|
Operating Temperature
|
-10°C ~ 50°C
|
|
|
|
||||
|
Storage Temperature
|
-40°C ~ 85°C
|
|
|
|
||||
|
MTBF
|
>8, 000 Hours
|
|
|
|
||||
|
MOQ
|
1 Piece
|
|
|
|
||||
|
Product Details
|
|
|
|
|
||||
|

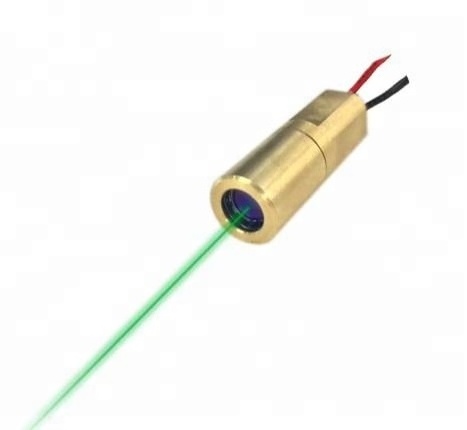

Mini Laser Module
|
|
|
|
Product Description
|
Mini Laser Diode Module, a small dimension with low power consumption, is particularly suitable for built-in miniature devices and tools, which could enable the laser tools.
|
|
|
Features
|
·Small Dimension
·Low Consumption ·Low Cost |
|
|
Product Applications
|
|
|
|
|
||||
Medical Equipment
Machine Vision
Inspection
Alignment
Aesthetic
3D Scanning
Package&Delivery
1.
Packing the product in the
plastic static-free bag
2.Add a layer of bubble film on the outside
3.
Put the wrapped product in the
export carton
and seal it
Company&Factory
Certificate & Exhibition
Our Service
Customization Services
If the uploaded product does not have a model suitable for your use. please let us know your detailed requirements.
Please contact us with your application (or usage scenario) and laser specifications, such as wavelength, output power, the working distance (or range), beam size or line thickness and housing dimension, etc. We will recommend the best product according to your requirements.
Our company is still developing new products. There will be more new models.
Please follow us and stay tuned.
After Sales Service
（
One year warranty）
Step 1:Receiving Express
Step 2:Warehouse Registration
Step 3:Business Registration
Step 4:Inspection Department
Step 5:Engineering Department Analysis
Step 6:Test Result
Step 7:Feedback To Customers
Step 8:Solution Program
Why Choose Us
1. The pursuit of Customer Satisfaction, Creating Value for Customers
2. Leading suppliers of high stability laser, single-mode fiber-coupled laser, Uniform Line Laser, Laser Diode module, and DPSS laser.
3. Over 20 years’ experience in laser module design, development, and production.
4. Excellent research and development team, advanced production lines and complete testing equipment, Exclusive patent and patent pool.
5. Compliant with ISO9001:2015, CE, GB, IEC. ( MOQ 1pc, OEM/ODM service )
2. Leading suppliers of high stability laser, single-mode fiber-coupled laser, Uniform Line Laser, Laser Diode module, and DPSS laser.
3. Over 20 years’ experience in laser module design, development, and production.
4. Excellent research and development team, advanced production lines and complete testing equipment, Exclusive patent and patent pool.
5. Compliant with ISO9001:2015, CE, GB, IEC. ( MOQ 1pc, OEM/ODM service )
FAQ
1. What's the way of shipping
Shipping via DHL, TNT, UPS, FedEx, and EMS.
2. What's the payment method?
Assurance payment on Alibaba.
3. What's your MOQ?
1 Piece.
4. What's the delivery time?
Within one or two weeks.
5. Can I customize the products based on my requirements?
Yes. We can design and produce lasers based on your special requirements.
6. Do you have any certifications for lasers?
Yes. All our lasers are certified with CE, RoHS.
7. How long is the warranty period?
12 months.
