Quick Details
-
Voltage:
-
220v/380v/other
-
Dimension(L*W*H):
-
0.9*1*1.65m
-
Power (kW):
-
15kw
-
Weight (KG):
-
250 KG
-
Keywords:
-
Foam Machiney
-
Usage:
-
Wide Usage
-
Color:
-
Blue/Red
-
Max output flow:
-
2-12kg/min
-
Driving mode:
-
Pneumatic drive
-
Max heating hose length:
-
90m
-
Air source:
-
0.5-0.8Mpa≥1.0m³/min
-
Max working voltage:
-
22Mpa
-
Ambient temperature:
-
-15°C~40°C
-
Insulation material mixing ratio:
-
1:1
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
FY
-
Machine Type:
-
pu foam spray machine
-
Voltage:
-
220v/380v/other
-
Dimension(L*W*H):
-
0.9*1*1.65m
-
Power (kW):
-
15kw
-
Weight (KG):
-
250 KG
-
Keywords:
-
Foam Machiney
-
Usage:
-
Wide Usage
-
Color:
-
Blue/Red
-
Max output flow:
-
2-12kg/min
-
Driving mode:
-
Pneumatic drive
-
Max heating hose length:
-
90m
-
Air source:
-
0.5-0.8Mpa≥1.0m³/min
-
Max working voltage:
-
22Mpa
-
Ambient temperature:
-
-15°C~40°C
-
Insulation material mixing ratio:
-
1:1
Products Description

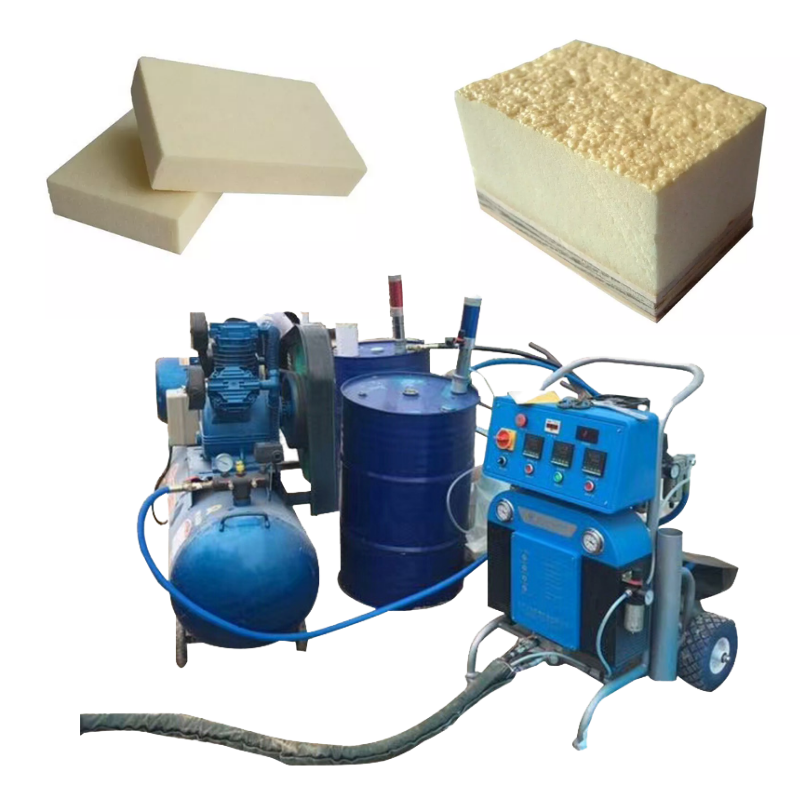

Factory Direct Insulation High Quality Polyurethane Pu Foam Spray Machine
One complete set Q30 model spray machine
Machine can spray polyurea coating material and pu foam material, high pressure pneumatic type.
|
Machine Type
|
foam spray machine
|
|
Voltage
|
220v/380v/other
|
|
Dimension(L*W*H)
|
0.9*1*1.65m
|
|
Power (kW)
|
15kw
|
|
Weight (KG)
|
250KG
|
|
Warranty
|
1 Year
|
|
Core Components
|
Motor, Pump, Other
|
|
Keywords
|
Foam Machiney
|
|
Usage
|
Wide Usage
|
|
Color
|
Blue
|
|
Max output flow
|
2-12kg/min
|
|
Driving mode
|
Pneumatic drive
|
|
Max heating hose length
|
90m
|
|
Air source
|
0.5-0.8Mpa≥1.0m³/min
|
|
Max working voltage
|
22Mpa
|
|
Ambient temperature
|
-15°C~40°C
|
|
Insulation material mixing ratio
|
1:1
|
Details Images
Min.output:2kg/min
Max.output: 12kg/min
clean way:Air self-cleaning
Polyurethane spray and inject use
polyurea coating spray use
Feeding Pump
Special pneumatic feeding system,stable pressure flow, to ensure the correct proportion of raw materials
Easy to disassemble and not easily clogged
15m Heating hose
connect head is M16*1.5C
The heating method of spiral winding of road alloy copper belt is fast,uniform heat conduction, stable heating process, sensitive
and high-quality temperature sensing equipment.
Packing & Delivery
Inside: Wrapping film
Outside: Fumigation-free wooden package
Factory Direct Insulation High Quality Polyurethane Pu Foam Spray Machine
Application
Factory Direct Insulation High Quality Polyurethane Pu Foam Spray Machine
:
the construction of the external walls of spraying, spraying products, cold storage spray, refrigerated trucks spraying, roof spraying, industrial anti-corrosion, cabin, carriages, cars, tanks.
spray use for roof
spray use for ceiling
spray use for sculpture
spray use for wall
