Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
SIYANG
-
Weight:
-
80
-
Rated power/speed:
-
50-220KW
-
Rated power:
-
50-220kw
-
Rated speed:
-
3000-4300rpm
-
Impeller grade:
-
1
-
Pump weight(Dry):
-
80kg
-
Water weight inner pump:
-
22kg
-
After-sales Service Provided:
-
No overseas service provided
Quick Details
-
Displacement:
-
125CC
-
Emission Standard:
-
Euro 2
-
Power:
-
50KW
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
SIYANG
-
Weight:
-
80
-
Rated power/speed:
-
50-220KW
-
Rated power:
-
50-220kw
-
Rated speed:
-
3000-4300rpm
-
Impeller grade:
-
1
-
Pump weight(Dry):
-
80kg
-
Water weight inner pump:
-
22kg
-
After-sales Service Provided:
-
No overseas service provided

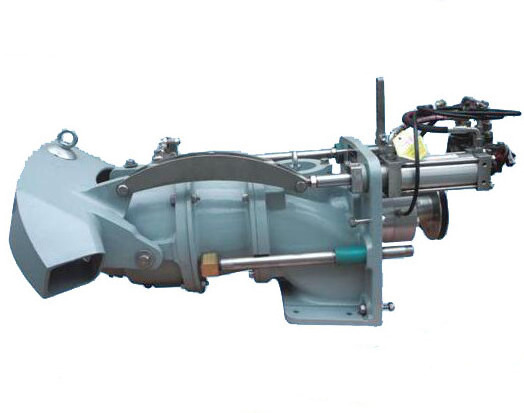

1)High propulsion efficiency, excellent bubble elimination, accessory lower of resistance.
Excellent operation performance-hydraulic steering operation, large variable condition, minimum water resistance sailing.
2)Better protective performance-high running impeller hiding inner of pump,provide human excellentsafety protection in water.
3)Transmission simple, lower noise to provide the boat voyage with comfortable and quiet.
4)Movable inlet grid and miscellaneous cleans easily in water inlet.
5)The pump is found in conformity with the Rules for <Classification of Sea-going Steel Ships of China Classification Society (CCS) and <classification and construction of high-speed craft at sea>.It is suitable for propulsion device of rescue boats, harbor work boat, coastguard patrol boat, luxury yacht and traffic boatetc.
6)The pump can match a widely high diesel engines, following is shown as power: Siyang 4L68C,4L88C,SY144C (68hp~144hp), Yanmar high speed engine 100hp~240hp
144hp~256hp,Cummins engine 150hp~280hp and hyundai 100hp~250hp.
|
Model |
SYP23 |
|
Driven engine power and speed(Kw/rpm) |
Power:50~220Kw/Speed:3000~4300 |
|
Impeller grade |
1 |
|
Propulsion efficiency |
≥70% |
|
Application speed (knot) |
≤45 |
|
Steering angle |
22±1° |
|
Steering and reverse control |
Hydraulic and soft cable |
|
Installation type |
Half embedding |
|
Coupling with the engine |
Direct connecting |
|
Pump weight(Dry)(Kg) |
79 |
|
Water weght inner pump (Kg) |
22 |
