Coil Number:
-
AUTOTRANSFORMER
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
HNELEC
-
Model Number:
-
photovoltaic wind transformer
-
rated voltage:
-
10kv 20kv 35kv
-
capacity range:
-
500-5000kva
-
Application:
-
wind power generation and solar panel
-
Usage:
-
Power Distribution
-
Frequency:
-
50/60Hz
-
Vector group:
-
Dyn11yn11/Ynd11d11d11
-
Type:
-
Oil-filled Transformer
-
Winding material:
-
Copper\Aluminum
-
Standard:
-
IEC60076/ IEEE 53
Quick Details
-
Use:
-
Power
-
Phase:
-
Three
-
Coil Structure:
-
TOROIDAL
-
Coil Number:
-
AUTOTRANSFORMER
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
HNELEC
-
Model Number:
-
photovoltaic wind transformer
-
rated voltage:
-
10kv 20kv 35kv
-
capacity range:
-
500-5000kva
-
Application:
-
wind power generation and solar panel
-
Usage:
-
Power Distribution
-
Frequency:
-
50/60Hz
-
Vector group:
-
Dyn11yn11/Ynd11d11d11
-
Type:
-
Oil-filled Transformer
-
Winding material:
-
Copper\Aluminum
-
Standard:
-
IEC60076/ IEEE 53
Marketing Campaign
Products Description

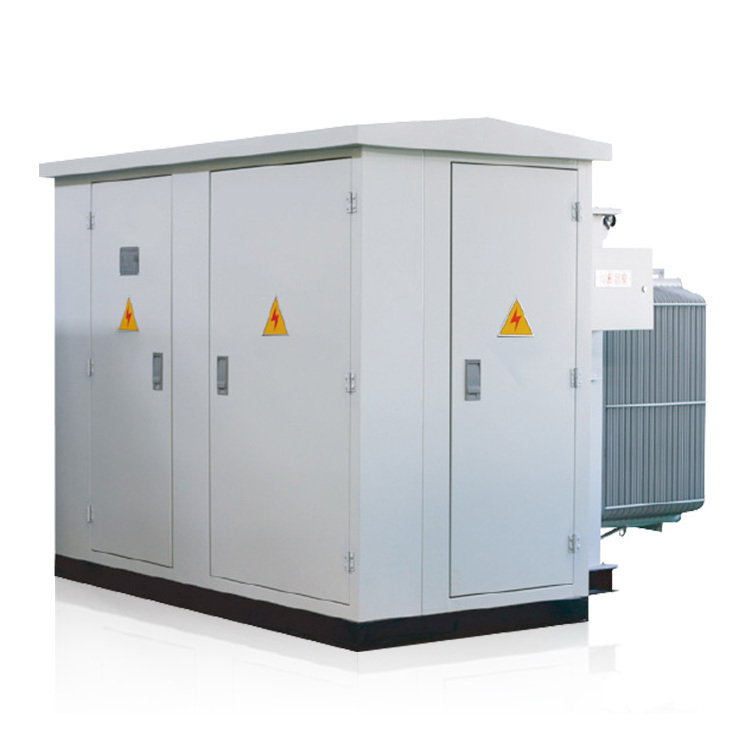

100kVA 150 kVA 630kVA Transformer substation 6kV 10kV 20kV 2000kVA Pad Mounted Transformer for PV
As a production method of clean energy, new energy power generation has developed rapidly at home and abroad. ZGS series new energy (photovoltaic/wind) power generation combined transformers is pad-mounted transformer, which combines transformer body, oil immersed load switch, oil immersed fuse, switchgear, ow voltage power distribution device and other supporting equipment. The high and low voltage chambers and transformers are arranged in triangle shape. It can simultaneously meet various configuration requirements such as user energy metering, reactive power compensation.ow-voltage shunt, etc. t is suitable for terminal power supply systems of 35kV and below, with a capacity range of 500--5000kVA. The enclosure protection level can reach lP54 or above, and it is suitable for photovoltaic and wind farms on land water and sea.
Product Paramenters
|
No.
|
Name
|
|
Unit
|
Data
|
||||
|
1.
|
Rated voltage
|
HV
|
kV
|
10、20、35
|
||||
|
2.
|
|
LV
|
kV
|
0.315~0.5
|
||||
|
2.
|
Rated capacity
|
|
KVA
|
630~5000
|
||||
|
3.
|
No-load voltage regulation
|
|
|
+2x2.5%
|
||||
|
4.
|
Vector group
|
|
|
Dyn11、Dyn11yn11、Yd11d11
|
||||
|
5.
|
Insulation level
|
Lightning impulse withstand voltage
|
kV
|
75、125、200
|
||||
|
7.
|
|
Power frequency withstand voltage (HV)
|
kV
|
35、55、85
|
||||
|
8.
|
|
Power frequency withstand voltage (LV)
|
kV
|
5
|
||||
|
|
|
Secondary control loop
|
|
2.0
|
||||
|
6.
|
Noise level
|
|
dB
|
60
|
||||
|
7.
|
Protection class
|
|
|
oil tank IP68,high and low Voltage chamber IP54
|
||||
|
Note:
Due to continuous product improvement, the dimensions provided in this sample are for reference only, If necessary, our company can design and produce according to user requirements. Please contact the company in time.
|
|
|
|
|
||||
