Quick Details
-
Place of Origin:
-
Guangdong, China
-
Model Number:
-
LB-HF-02
-
Name:
-
lab Furniture/Lab Bench
-
Product name:
-

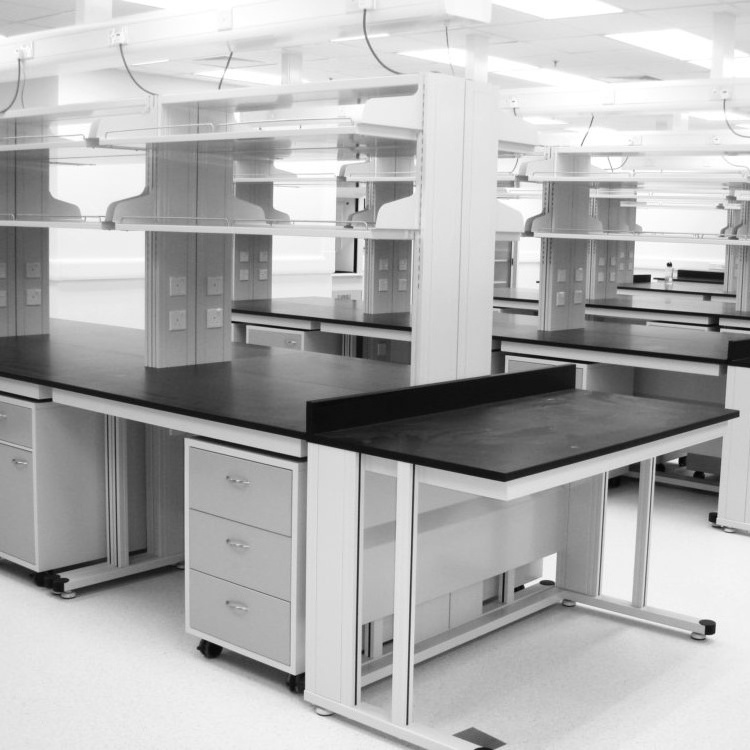

C Shape Frame All steel Lab Bench
-
Structure:
-
C-Frame
-
Usage:
-
Chemistry Analytical
-
Countertop:
-
Phenolic Resin/Epoxy Resin/Ceramic/Granite/Marble/Stainless Steel
-
Standard accessories:
-
Water tap/PP sink/Electrical Outlets
-
Certificate:
-
CE certification/ISO Certification
-
Feature:
-
Excellent Acid and Alkali Performance
-
Advantage:
-
New Type
Quick Details
-
Application:
-
Hospital, School, Laboratory, Industry, Institute, Plant
-
Design Style:
-
Modern
-
Material:
-
Metal/Wooden, Cold-roll steel sheet
-
Place of Origin:
-
Guangdong, China
-
Model Number:
-
LB-HF-02
-
Name:
-
lab Furniture/Lab Bench
-
Product name:
-
C Shape Frame All steel Lab Bench
-
Structure:
-
C-Frame
-
Usage:
-
Chemistry Analytical
-
Countertop:
-
Phenolic Resin/Epoxy Resin/Ceramic/Granite/Marble/Stainless Steel
-
Standard accessories:
-
Water tap/PP sink/Electrical Outlets
-
Certificate:
-
CE certification/ISO Certification
-
Feature:
-
Excellent Acid and Alkali Performance
-
Advantage:
-
New Type
Countertops
(1) Phenolic Resin countertop: 12.7mm (Edge banding and Thicken to 25.4mm)/16~30mm thickness
(2) Epoxy Resin countertop:16/19/20/25mm thickness
(3) Ceramic countertop: 20mm thickness
(4) Trespa countertop: 13/16/19/20/25mm thickness
(5) Granite/Marble countertop: 20mm thickness
Cabinet&Accessories
(1) Frame: The whole adopts 40*60*1.5mm thick high-quality cold-rolled rectangle tube, the steel surface is treated, phosphating and other processes, and then electrostatic powder coated with epoxy resin, cured at 220°C high temperature, and the surface is smooth.
(2) Handle: Aluminum alloy/Non-welded linear handle/C-shaped handle/Insertion Aluminum alloy handle.
(3) Rail: DTC 16-inch three-section silent rail.
(4) Hinge: DTC 105°/175° buffer hinge/stainless steel hinge.
(5) Footing: Use laboratory-specific adjustable feet with an adjustment range of ≥35mm, strong bearing capacity, the balance of the Lab bench can be adjusted.
Option Cabinet Unit
①Wooden Cabinet Unit:
The cabinet body thickness is 15mm, the door and drawer panels are made of 18mm thickness high-quality environmentally friendly double-face MDF/melamine board, and the edges are sealed with 2mm thick PVC edge strips. The edges are firm, clean, and free of burrs, the bond is firm.
②Steel Cabinet Unit:
1.0mm full-thickness high-quality cold-roll steel sheet is used as a whole; the steel surface is treated, phosphating and other processes, and then electrostatic powder coated with epoxy resin, cured at 220°C high temperature, and the surface is smooth, with a thickness of up to 1.15mm~1.2mm. The cabinet door is double-layered inside and outside, filled with sound insulation material.
The cabinet body thickness is 15mm, the door and drawer panels are made of 18mm thickness high-quality environmentally friendly double-face MDF/melamine board, and the edges are sealed with 2mm thick PVC edge strips. The edges are firm, clean, and free of burrs, the bond is firm.
②Steel Cabinet Unit:
1.0mm full-thickness high-quality cold-roll steel sheet is used as a whole; the steel surface is treated, phosphating and other processes, and then electrostatic powder coated with epoxy resin, cured at 220°C high temperature, and the surface is smooth, with a thickness of up to 1.15mm~1.2mm. The cabinet door is double-layered inside and outside, filled with sound insulation material.
|
Product
|
Dimensions
(Length*Depth*Height)
|
|
C-Frame Wall Bench
|
L*750*850mm/Customize
(Lx2.46'x2.78'/Customize)
|
|
C-Frame Island Bench
|
L*1500*850mm/Customize
(Lx4.92'x2.78'/Customize)
|
|
C-Frame Corner Bench
|
1000*1000*850mm/Customize
(Lx3.28'x3.28'/Customize)
|
● Modern design and unique structure.
● The structure is simple, flexible and changeable, and can be combined freely.
● No cabinet, suspended cabinet and mobile cabinet structure can be selected.
● Easy to clean, enough space between cabinets and floor.
● Greater knee and leg room.
● Good moisture resistance.
● Primary shock absorption function, load-bearing capacity can reach more than 200KG/m².
● Upper and lower cabinet units can be moved, added or removed according to laboratory needs without affecting the rest of the bench system.
● C-Frame lab bench not only has a unique design and structure, but also its production process is very particular. The high-quality rectangle steel is further processed, and the anti-corrosion performance is improved after the other steel has undergone professional chemical rust removal treatment. In addition, the cabinet body of the entire lab bench is mainly through the three-in-one connection structure, which ensures the good load-bearing performance of the test bench during use and increases the practical performance.
1.0mm full-thickness high-quality cold-roll steel sheet is used as a whole; the thickness of up to 1.15mm~1.2mm. The cabinet door is double-layered inside and outside, filled with sound insulation material.
Connecting Rod
The whole adopts 40*60*1.5mm thick high-quality cold-rolled rectangle tube, the steel surface is treated, phosphating and other processes, and then electrostatic powder coated with epoxy resin, cured at 220°C high temperature, and the surface is smooth.
DTC 16-inch three-section silent rail.
DTC 105°/175° buffer hinge/stainless steel
hinge.
hinge.
Insertion Aluminum Handle
C-shaped SS Handle
Non-welded linear Handle
Wall Cupboard
Reagent Rack
Q: Are you a factory or trade company?
A: Direct factory. Relying on largest lab manufacturer creates competitive price, build safe, functional laboratories at the most economical cost.
Q: May I have my own design?
A: Yes, welcome. If you have your own design, please kindly send the Layout or plan to us. The designer team will make 3D drawings and Rendering drawings.
Q: Can I customize the size and color?
A: Yes, of course. Custom sizes and colors are available, customized according to customer needs.
Q: What are the payment terms?
A:T/T, Alibaba trade assurance, L/C, or by the West Union.
Q: What is the delivery time?
A: Standardized production lines, sufficient inventory of module products, complete production in the fastest time, and the delivery time is 30% faster than that of peers.
Q: Do you have certifications for your products?
A: Yes, We have CE, ISO9001, ISO14001, OHSASI18001 and so on.
A: Direct factory. Relying on largest lab manufacturer creates competitive price, build safe, functional laboratories at the most economical cost.
Q: May I have my own design?
A: Yes, welcome. If you have your own design, please kindly send the Layout or plan to us. The designer team will make 3D drawings and Rendering drawings.
Q: Can I customize the size and color?
A: Yes, of course. Custom sizes and colors are available, customized according to customer needs.
Q: What are the payment terms?
A:T/T, Alibaba trade assurance, L/C, or by the West Union.
Q: What is the delivery time?
A: Standardized production lines, sufficient inventory of module products, complete production in the fastest time, and the delivery time is 30% faster than that of peers.
Q: Do you have certifications for your products?
A: Yes, We have CE, ISO9001, ISO14001, OHSASI18001 and so on.
