Quick Details
-
Range of Spindle Speed(r.p.m):
-
25 - 1800 r.p.m
-
Width of bed (mm):
-
250
-
Max. Turned Length (mm):
-
1500 mm
-
Spindle Motor Power(kW):
-
3.3
-
Year:
-
new
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
borui
-
Model Number:
-
CD6241
-
Voltage:
-
220v 380v 410v 440v
-
Dimension(L*W*H):
-
2030x820x1620
-
Weight (KG):
-
1760 KG
-
CNC or Not:
-
Normal
-
Automatic Grade:
-
Manual
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Name:
-
Lathe Machine
-
Machine Type:
-
Gab Bed Lathe
-
Product type:
-
Economical Lathe
-
Spindle bore:
-
52mm
-
Spindle speed:
-
50-1800rpm
-
Max. Swing Diameter:
-
410mm
-
Power (kW):
-
2.2
Quick Details
-
Max. Length of Workpiece (mm):
-
1500
-
Machining Capacity:
-
Heavy Duty
-
Spindle Bore(mm):
-
52
-
Range of Spindle Speed(r.p.m):
-
25 - 1800 r.p.m
-
Width of bed (mm):
-
250
-
Max. Turned Length (mm):
-
1500 mm
-
Spindle Motor Power(kW):
-
3.3
-
Year:
-
new
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
borui
-
Model Number:
-
CD6241
-
Voltage:
-
220v 380v 410v 440v
-
Dimension(L*W*H):
-
2030x820x1620
-
Weight (KG):
-
1760 KG
-
CNC or Not:
-
Normal
-
Automatic Grade:
-
Manual
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Name:
-
Lathe Machine
-
Machine Type:
-
Gab Bed Lathe
-
Product type:
-
Economical Lathe
-
Spindle bore:
-
52mm
-
Spindle speed:
-
50-1800rpm
-
Max. Swing Diameter:
-
410mm
-
Power (kW):
-
2.2

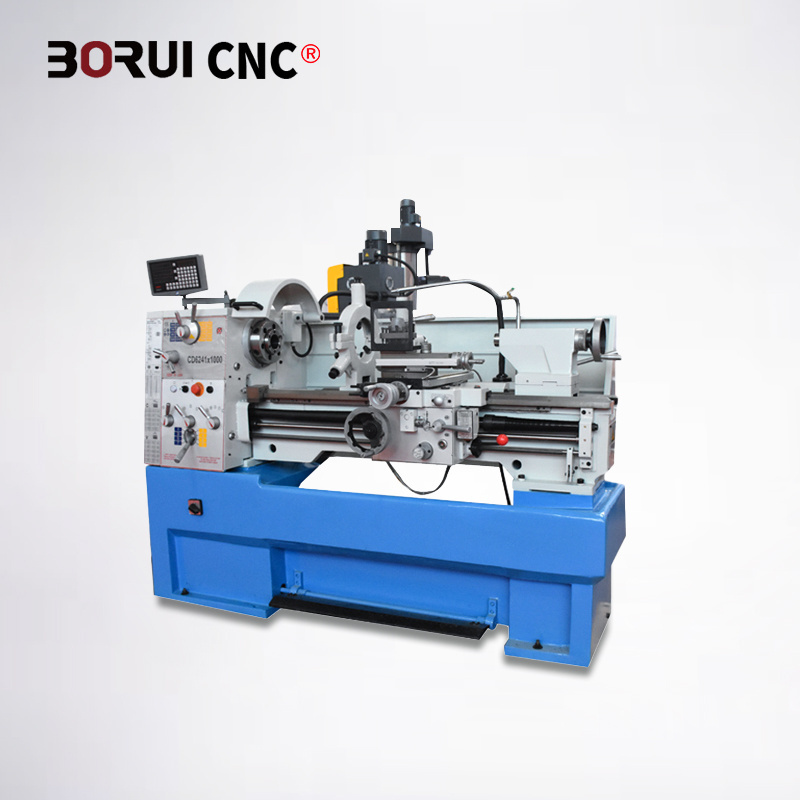

CD6241x1500 High Quality Metal Small Lathe For Saleines
universal lathe machine CD6241 ( Torno ) used metal lathe machine for sale
Top universal lathe CD6241 is a fantastic model for small to medium-size turning works. Even its basic configuration includes important accessories, such as 3-jaw chuck, steady and follow rest, change gears etc. Ingreasing the application area of this model significantly.
Inductive hardened, polished grey cast-iron machine bed
Mechanical foot brake reduces downtime significantly
Centrally located, logical switches for feeds and threads with lead screw and feed rod
State-of-the-art main spindle bearing with high-quality angular ball bearings
3-axis digital readout and quick tool post can be optional
Large, hardened, polished gears
Straightforward speed and feed adjustment
Hardened, polished fears and shafts, also in feed gear unit
The removable bridge allows machining of workpieces with a big diameter, hand wheels feature adjustable sacle (0, 02 mm)
Very robust and professional machine.
Triple bearings supporting headstock spindle
Adjustable taper roller bearings providing spindle accuracy
Precision 'V'-beds & headstock gears are all hardened & ground
One piece cast iron base increases rigidity
Overload protection on drive motor and coolant system
Universal enclosed gearbox incorporating metric & imperial thread capabilities
Inching button incorporated on the control panel for convenient spindle speed selection
Foot operated spindle brake with safety cut out switch
| Model | CD6241×1000 | CD6241×1500 |
| Max.swing over bed | Φ410mm(16") | |
| Max.swing over cross slide | Φ255mm(10") | |
| Max. swing over gap | Φ580mm(23") | |
| Center height | 205mm(8") | |
| Distance between centers | 1000mm(40")/1500mm(60") | |
| Width of bed | 250mm(10") | |
| Max.section of tool | 20mm×20mm(3/4"×3/4") | |
| Max.travel of cross slide | 210mm(8 1/2") | |
| Max.travel of compound rese | 140mm(5 1/2") | |
| Spindle bore | Φ52mm(2") | |
| Spindle nose | D1-6 | |
| Taper of spindle speed | M.T.#6 | |
| Range of spindle speed | 16changes25-1800r/min | |
| Leadscrew pitch | 4 T.P.I. | |
| Range of metric longitudinal feeds range | 0.05-1.7mm/rev(17 Nos) | |
| Range of inch longitudinal feeds | 0.002"-0.067"/rev (17 Nos) | |
| Range of metric cross feeds | 0.025-0.85mm/rev (17 Nos) | |
| Range of inch cross feeds | 0.001"-0.0335"/rev (17 Nos) | |
| Range of metric threads | 0.2-14mm(NO. 39) | |
| Range of inch threads | 2-72 T.P.I.(NO. 45) | |
| Range of Diametrical pitch | 8-44D.P.(21Nos) | |
| Range of module pitches | 0.3-3.5 M.P.(18Nos) | |
| Dia. of tailstock sleeve | 50mm(2") | |
| Travel of tailstock sleeve | 120mm(4 3/4") | |
| Morse taper of tailstock sleeve | M.T.#4 | |
| Power of main motor | 2.2/3.3kw(optional 3/5.5kw) | |
| Power of coolant pump | 4P,3PH 90W | |
| Overall diamension(L*W*H) | 1940mm×850mm×1320mm | |
| Packing size(L*W*H) | 2070mm×940mm×1600mm | |
| N.W/G.W | 1550kg/1760kg | |
| Standard Accessories: | Optional Accessories: |
| 3 Jaw Chuck | Taper Turning Attachment |
| Change Gears Set | Live Center |
| Chasing Dial Indicator | Work Light |
| Reduction Sleeve | Leadscrew Guard |
| Dead Centers | Digital Readout |
| Full Length Splash Guard | Quick Change Tool Post |
| Coolant System | Chuck Guard |
| Brake System | Digital Readout(2 Axis) |
| 4 Jaw Chuck | Drill Chuck+Drill Arbor |
| Face Plate | |
| Steady Rest | |
| Follow Rest | |
| Tool Box&Tools |
